Vis alle mål +

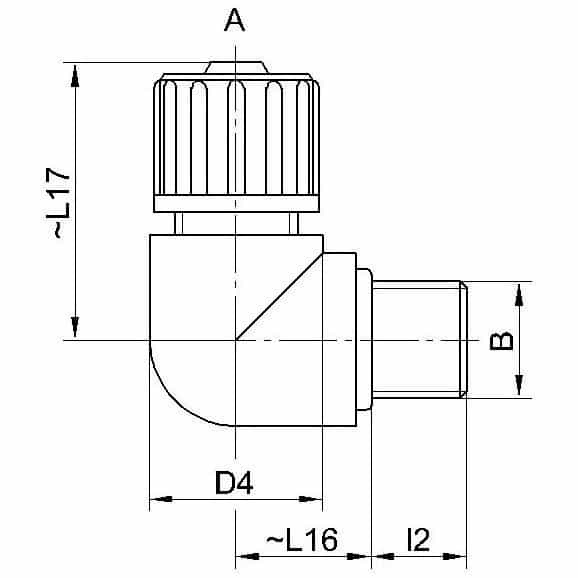

| Artikel nummer | VVS-nummer | A | B | l2 | L16 | L17 | D4 | Filer |
|---|---|---|---|---|---|---|---|---|
| 1B20031-1004-R06 | 10/4 | 1/8" | 8 | 20 | 36 | 20 | ||
| 1B20031-1004-R08 | 10/4 | 1/4" | 12 | 20 | 36 | 20 | ||
| 1B20031-1004-R10 | 10/4 | 3/8" | 12 | 22 | 38 | 25 | ||
| 1B20031-1004-R15 | 10/4 | 1/2" | 14 | 23 | 41 | 30 | ||
| 1B20031-1105-R06 | 11/6 | 1/8" | 8 | 20 | 36 | 20 | ||
| 1B20031-1105-R08 | 11/6 | 1/4" | 12 | 20 | 36 | 20 | ||
| 1B20031-1105-R10 | 11/6 | 3/8" | 12 | 22 | 38 | 25 | ||
| 1B20031-1105-R15 | 11/6 | 1/2" | 14 | 23 | 41 | 30 | ||
| 1B20031-1206-R06 | 12/6 | 1/8" | 8 | 20 | 37 | 20 | ||
| 1B20031-1206-R08 | 12/6 | 1/4" | 12 | 20 | 37 | 20 | ||
| 1B20031-1206-R10 | 12/6 | 3/8" | 12 | 22 | 39 | 25 | ||
| 1B20031-1206-R15 | 12/6 | 1/2" | 14 | 23 | 42 | 30 | ||
| 1B20031-1408-R08 | 14/8 | 1/4" | 12 | 22 | 41 | 25 | ||
| 1B20031-1408-R10 | 14/8 | 3/8" | 12 | 22 | 41 | 25 | ||
| 1B20031-1408-R15 | 14/8 | 1/2" | 14 | 23 | 44 | 30 | ||
| 1B20031-1408-R20 | 14/8 | 3/4" | 16 | 23 | 44 | 30 | ||
| 1B20031-1509-R08 | 15/9 | 1/4" | 12 | 22 | 43 | 25 | ||
| 1B20031-1509-R10 | 15/9 | 3/8" | 12 | 22 | 43 | 25 | ||
| 1B20031-1509-R15 | 15/9 | 1/2" | 14 | 23 | 46 | 30 | ||
| 1B20031-1509-R20 | 15/9 | 3/4" | 16 | 23 | 46 | 30 | ||
| 1B20031-1610-R08 | 16/10 | 1/4" | 12 | 22 | 48 | 25 | ||
| 1B20031-1610-R10 | 16/10 | 3/8" | 12 | 22 | 48 | 25 | ||
| 1B20031-1610-R15 | 16/10 | 1/2" | 14 | 23 | 49 | 30 | ||
| 1B20031-1610-R20 | 16/10 | 3/4" | 16 | 23 | 49 | 30 | ||
| 1B20031-1812-R08 | 18/12 | 1/4" | 12 | 23 | 52 | 30 | ||
| 1B20031-1812-R10 | 18/12 | 3/8" | 12 | 23 | 52 | 30 | ||
| 1B20031-1812-R15 | 18/12 | 1/2" | 14 | 23 | 52 | 30 | ||
| 1B20031-1812-R20 | 18/12 | 3/4" | 16 | 23 | 52 | 30 | ||
| 1B20031-1913-R08 | 19/13 | 1/4" | 12 | 23 | 49 | 30 | ||
| 1B20031-1913-R10 | 19/13 | 3/8" | 12 | 23 | 49 | 30 | ||
| 1B20031-1913-R15 | 19/13 | 1/2" | 14 | 23 | 49 | 30 | ||
| 1B20031-1913-R20 | 19/13 | 3/4" | 16 | 23 | 49 | 30 |
