Vis alle mål +

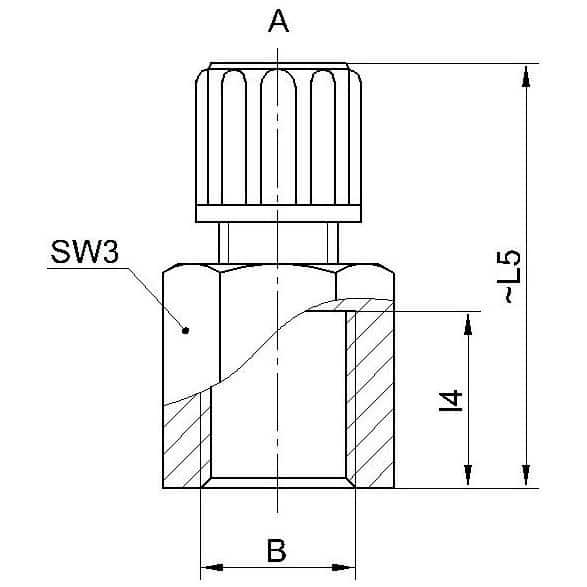

| Artikel nummer | VVS-nummer | A | B | l4 | L5 | SW3 | Filer |
|---|---|---|---|---|---|---|---|
| 1F10041-0604-R06 | 6/4 | 1/8" | 10 | 31 | 14 | ||
| 1F10041-0604-R08 | 6/4 | 1/4" | 15 | 36 | 17 | CAD/Step | |
| 1F10041-0604-R10 | 6/4 | 3/8" | 15 | 36 | 22 | ||
| 1F10041-0604-R15 | 6/4 | 1/2" | 16 | 38 | 27 | ||
| 1F10041-0806-R06 | 8/6 | 1/8" | 10 | 36 | 17 | ||
| 1F10041-0806-R08 | 8/6 | 1/4" | 15 | 41 | 17 | CAD/Step | |
| 1F10041-0806-R10 | 8/6 | 3/8" | 15 | 41 | 22 | ||
| 1F10041-0806-R15 | 8/6 | 1/2" | 16 | 42 | 27 | ||
| 1F10041-1006-R06 | 10/6 | 1/8" | 10 | 39 | 19 | ||
| 1F10041-1006-R08 | 10/6 | 1/4" | 15 | 44 | 19 | ||
| 1F10041-1006-R10 | 10/6 | 3/8" | 15 | 44 | 22 | ||
| 1F10041-1006-R15 | 10/6 | 1/2" | 16 | 45 | 27 | ||
| 1F10041-1008-R06 | 10/8 | 1/8" | 10 | 39 | 19 | ||
| 1F10041-1008-R08 | 10/8 | 1/4" | 15 | 44 | 19 | CAD/Step | |
| 1F10041-1008-R10 | 10/8 | 3/8" | 15 | 44 | 22 | ||
| 1F10041-1008-R15 | 10/8 | 1/2" | 16 | 45 | 27 | ||
| 1F10041-1208-R06 | 12/8 | 1/8" | 10 | 43 | 19 | ||
| 1F10041-1208-R08 | 12/8 | 1/4" | 15 | 48 | 22 | ||
| 1F10041-1208-R10 | 12/8 | 3/8" | 15 | 48 | 22 | ||
| 1F10041-1208-R15 | 12/8 | 1/2" | 16 | 49 | 27 | ||
| 1F10041-1210-R06 | 12/10 | 1/8" | 10 | 43 | 19 | ||
| 1F10041-1210-R08 | 12/10 | 1/4" | 15 | 48 | 22 | ||
| 1F10041-1210-R10 | 12/10 | 3/8" | 15 | 48 | 22 | ||
| 1F10041-1210-R15 | 12/10 | 1/2" | 16 | 49 | 27 | ||
| 1F10041-1410-R08 | 14/10 | 1/4" | 15 | 53 | 24 | ||
| 1F10041-1410-R10 | 14/10 | 3/8" | 15 | 53 | 24 | ||
| 1F10041-1410-R15 | 14/10 | 1/2" | 16 | 54 | 27 | ||
| 1F10041-1412-R08 | 14/12 | 1/4" | 15 | 53 | 24 | ||
| 1F10041-1412-R10 | 14/12 | 3/8" | 15 | 53 | 24 | ||
| 1F10041-1412-R15 | 14/12 | 1/2" | 16 | 54 | 27 | ||
| 1F10041-1612-R15 | 16/12 | 1/2" | 16 | 56 | 27 |
