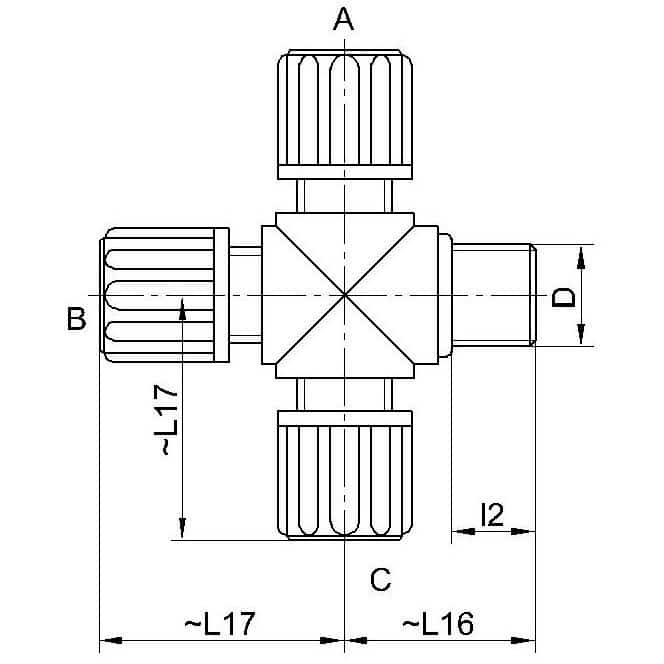

| Artikel nummer | VVS-nummer | A | B | C | D | l2 | L16 | L17 | Filer |
|---|---|---|---|---|---|---|---|---|---|
| 1P40031-0604-R06 | 6/4 | 6/4 | 6/4 | 1/8" | 8 | 20 | 26 | ||
| 1P40031-0604-R08 | 6/4 | 6/4 | 6/4 | 1/4" | 12 | 27 | 29 | ||
| 1P40031-0604-R10 | 6/4 | 6/4 | 6/4 | 3/8" | 12 | 27 | 29 | ||
| 1P40031-0604-R15 | 6/4 | 6/4 | 6/4 | 1/2" | 14 | 34 | 32 | ||
| 1P40031-0806-R06 | 8/6 | 8/6 | 8/6 | 1/8" | 8 | 20 | 33 | ||
| 1P40031-0806-R08 | 8/6 | 8/6 | 8/6 | 1/4" | 12 | 27 | 33 | ||
| 1P40031-0806-R10 | 8/6 | 8/6 | 8/6 | 3/8" | 12 | 27 | 33 | ||
| 1P40031-0806-R15 | 8/6 | 8/6 | 8/6 | 1/2" | 14 | 34 | 36 | ||
| 1P40031-1006-R06 | 10/6 | 10/6 | 10/6 | 1/8" | 8 | 26 | 36 | ||
| 1P40031-1006-R08 | 10/6 | 10/6 | 10/6 | 1/4" | 12 | 30 | 36 | ||
| 1P40031-1006-R10 | 10/6 | 10/6 | 10/6 | 3/8" | 12 | 30 | 36 | ||
| 1P40031-1006-R15 | 10/6 | 10/6 | 10/6 | 1/2" | 14 | 34 | 39 | ||
| 1P40031-1008-R08 | 10/8 | 10/8 | 10/8 | 1/4" | 12 | 30 | 36 | ||
| 1P40031-1008-R10 | 10/8 | 10/8 | 10/8 | 3/8" | 12 | 30 | 36 | ||
| 1P40031-1008-R15 | 10/8 | 10/8 | 10/8 | 1/2" | 14 | 34 | 39 | ||
| 1P40031-1208-R08 | 12/8 | 12/8 | 12/8 | 1/4" | 12 | 32 | 40 | ||
| 1P40031-1208-R10 | 12/8 | 12/8 | 12/8 | 3/8" | 12 | 32 | 40 | ||
| 1P40031-1208-R15 | 12/8 | 12/8 | 12/8 | 1/2" | 14 | 34 | 43 | ||
| 1P40031-1210-R08 | 12/10 | 12/10 | 12/10 | 1/4" | 12 | 32 | 40 | ||
| 1P40031-1210-R10 | 12/10 | 12/10 | 12/10 | 3/8" | 12 | 32 | 40 | ||
| 1P40031-1210-R15 | 12/10 | 12/10 | 12/10 | 1/2" | 14 | 34 | 43 | ||
| 1P40031-1410-R10 | 14/10 | 14/10 | 14/10 | 3/8" | 12 | 34 | 48 | ||
| 1P40031-1410-R15 | 14/10 | 14/10 | 14/10 | 1/2" | 14 | 36 | 48 | ||
| 1P40031-1412-R10 | 14/12 | 14/12 | 14/12 | 3/8" | 12 | 34 | 48 | ||
| 1P40031-1412-R15 | 14/12 | 14/12 | 14/12 | 1/2" | 14 | 36 | 48 |
