Vis alle mål +

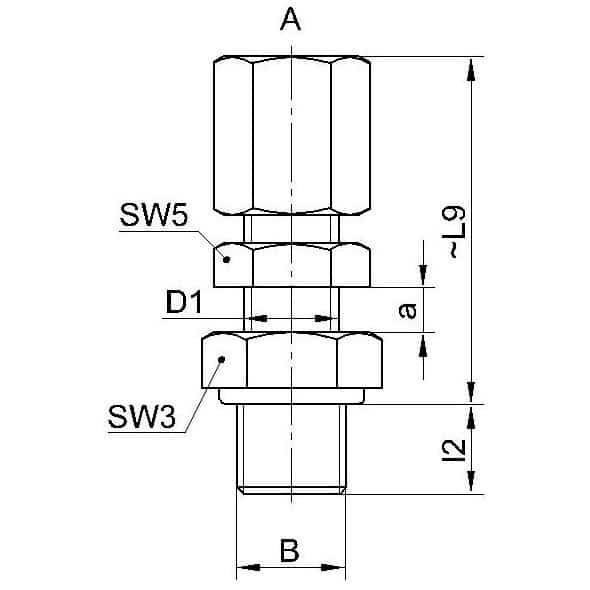

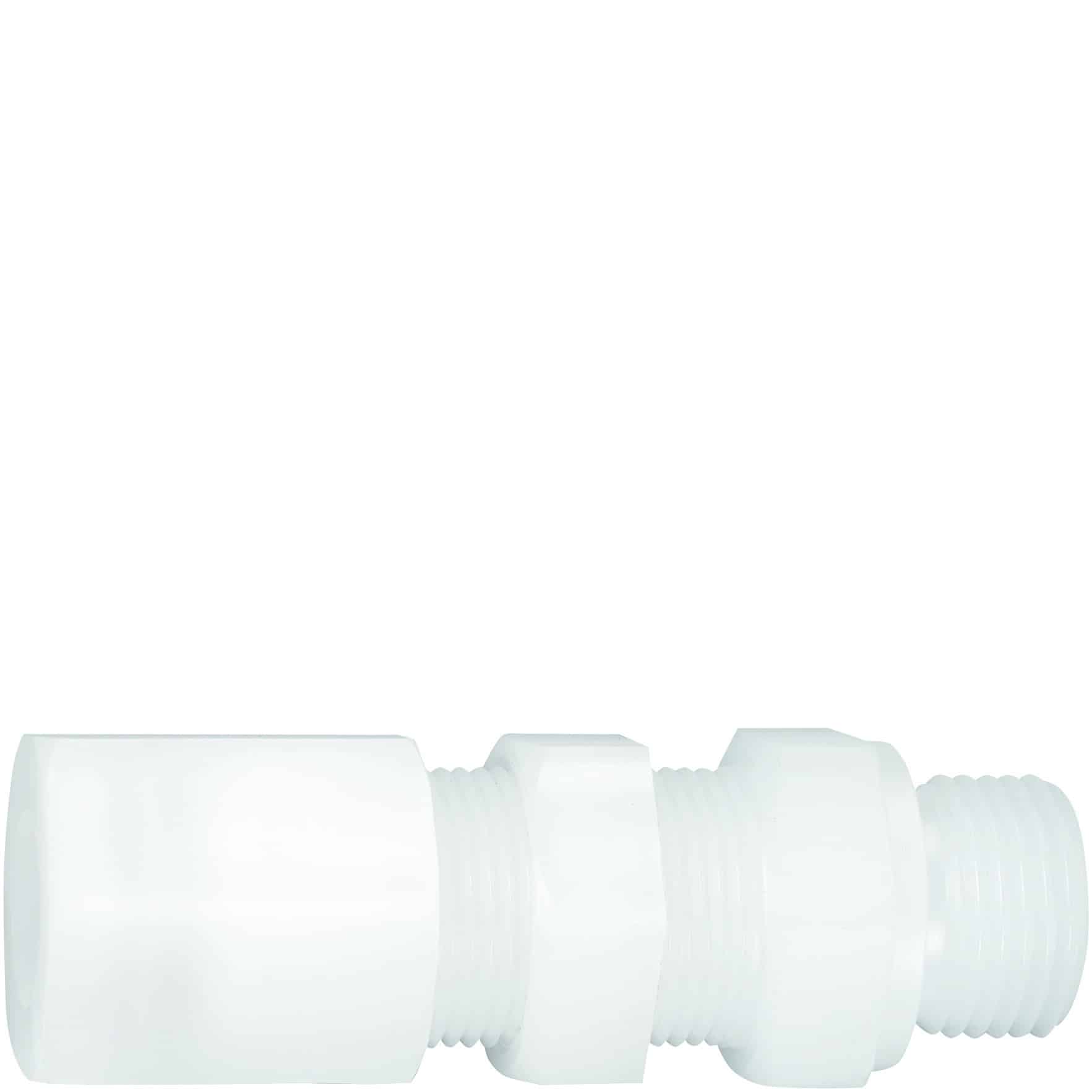

| Artikel nummer | VVS-nummer | A | B | l2 | L9 | SW3 | SW5 | D1 | a | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| 2F10131-04-R06 | 4 | 1/8" | 8 | 35.5 | 14 | 14 | 8.5 | 9 | ||
| 2F10131-04-R08 | 4 | 1/4" | 12 | 37 | 17 | 14 | 8.5 | 9 | ||
| 2F10131-04-R10 | 4 | 3/8" | 12 | 38.5 | 22 | 14 | 8.5 | 9 | ||
| 2F10131-04-R15 | 4 | 1/2" | 14 | 41 | 27 | 14 | 8.5 | 9 | ||
| 2F10131-06-R06 | 6 | 1/8" | 8 | 48.5 | 14 | 17 | 12.5 | 9 | ||
| 2F10131-06-R08 | 6 | 1/4" | 12 | 50 | 17 | 17 | 12.5 | 9 | ||
| 2F10131-06-R10 | 6 | 3/8" | 12 | 51.5 | 22 | 17 | 12.5 | 9 | ||
| 2F10131-06-R15 | 6 | 1/2" | 14 | 54 | 27 | 17 | 12.5 | 9 | ||
| 2F10131-08-R06 | 8 | 1/8" | 8 | 50.5 | 19 | 19 | 14.5 | 9 | ||
| 2F10131-08-R08 | 8 | 1/4" | 12 | 51 | 19 | 19 | 14.5 | 9 | ||
| 2F10131-08-R10 | 8 | 3/8" | 12 | 51.5 | 22 | 19 | 14.5 | 9 | ||
| 2F10131-08-R15 | 8 | 1/2" | 14 | 54 | 27 | 19 | 14.5 | 9 | ||
| 2F10131-10-R06 | 10 | 1/8" | 8 | 55.5 | 19 | 22 | 16.5 | 10 | ||
| 2F10131-10-R08 | 10 | 1/4" | 12 | 56 | 19 | 22 | 16.5 | 10 | ||
| 2F10131-10-R10 | 10 | 3/8" | 12 | 56.5 | 22 | 22 | 16.5 | 10 | ||
| 2F10131-10-R15 | 10 | 1/2" | 14 | 59 | 27 | 22 | 16.5 | 10 | ||
| 2F10131-12-R06 | 12 | 1/8" | 8 | 61.5 | 22 | 24 | 18.5 | 12 | ||
| 2F10131-12-R08 | 12 | 1/4" | 12 | 62 | 22 | 24 | 18.5 | 12 | ||
| 2F10131-12-R10 | 12 | 3/8" | 12 | 63.5 | 22 | 24 | 18.5 | 12 | ||
| 2F10131-12-R15 | 12 | 1/2" | 14 | 65 | 27 | 24 | 18.5 | 12 | ||
| 2F10131-14-R06 | 14 | 1/8" | 8 | 67.5 | 27 | 27 | 22.5 | 14 | ||
| 2F10131-14-R08 | 14 | 1/4" | 12 | 68 | 27 | 27 | 22.5 | 14 | ||
| 2F10131-14-R10 | 14 | 3/8" | 12 | 68.8 | 27 | 27 | 22.5 | 14 | ||
| 2F10131-14-R15 | 14 | 1/2" | 14 | 69 | 27 | 27 | 22.5 | 14 |
