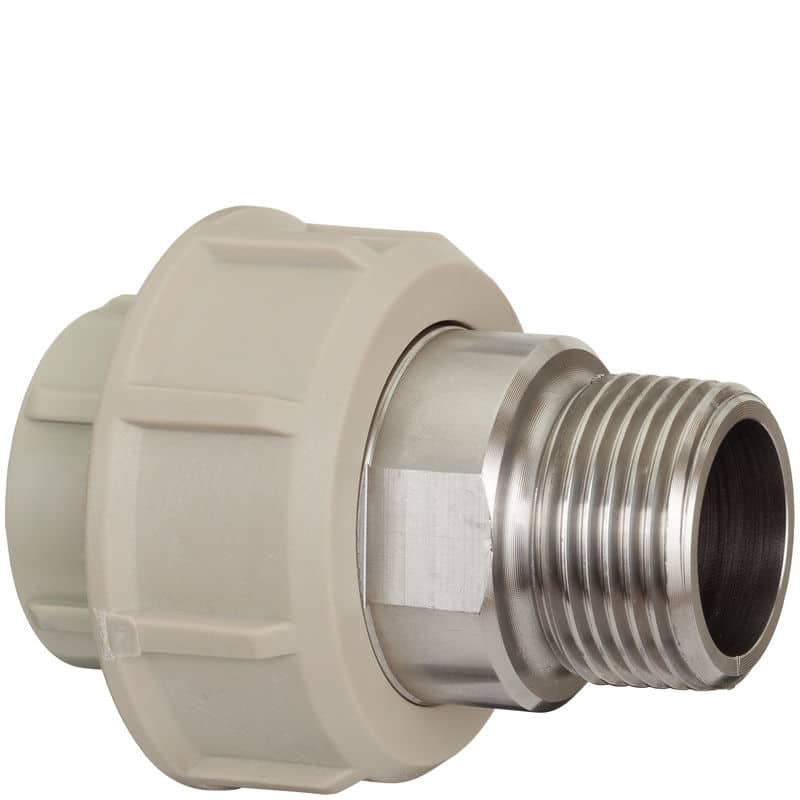

PP Union, indv. svejsning, udv. Gevind SDR11 PN10 FPM

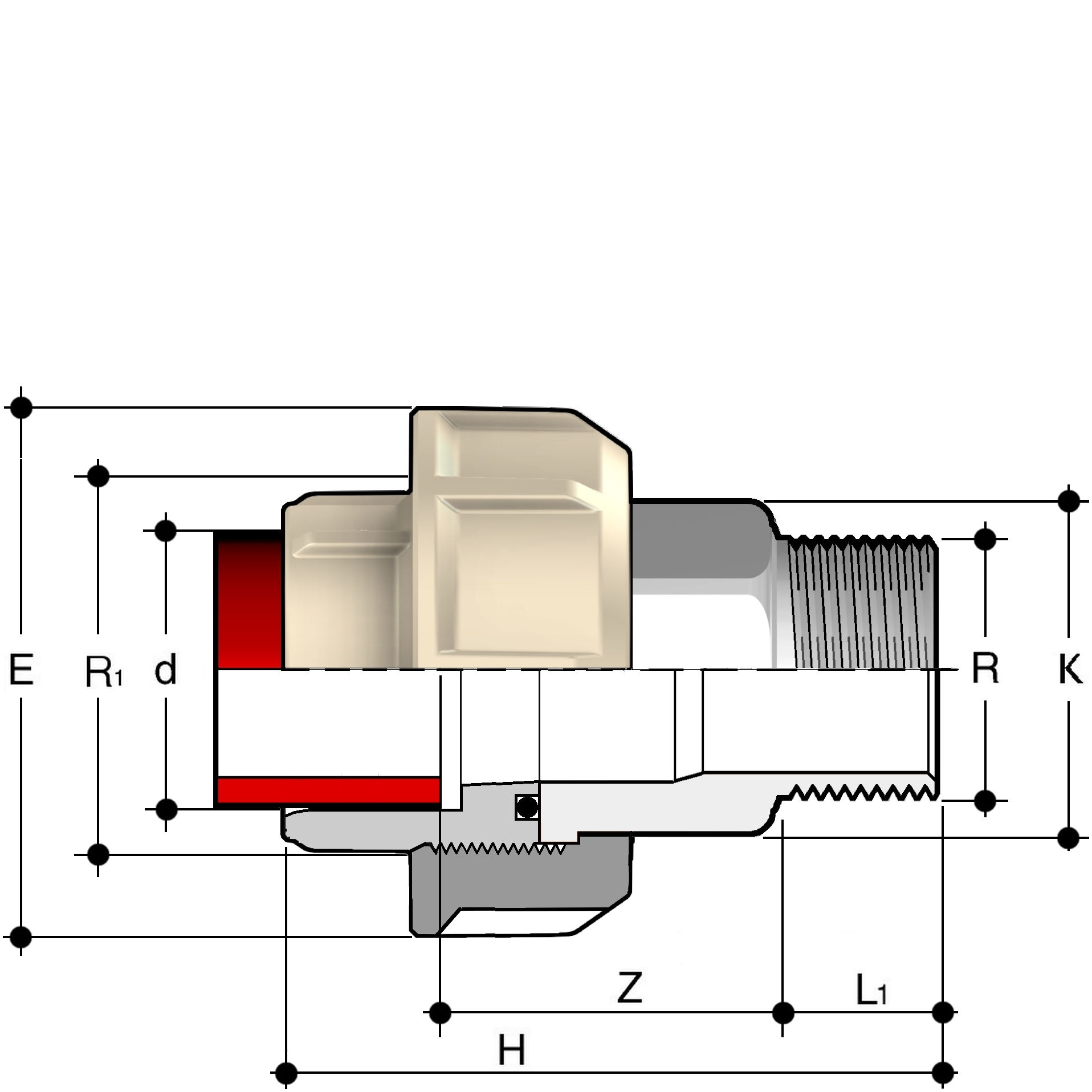

| Artikel nummer | VVS-nummer | dxR | R1 | L1 | Z | H | K | E | PN | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| BIRXM-V-020-R015 | 20x1/2" | 1" | 13.5 | 37.5 | 65 | 25 | 47 | 10 | CAD/Step | |
| BIRXM-V-025-R020 | 25x3/4" | 1¼" | 15 | 40.5 | 71.5 | 32 | 58 | 10 | CAD/Step | |
| BIRXM-V-032-R025 | 32x1" | 1½" | 17.5 | 42.5 | 78 | 38 | 65 | 10 | CAD/Step | |
| BIRXM-V-040-R032 | 40x1¼" | 2" | 19.5 | 47.5 | 87 | 48 | 78 | 10 | CAD/Step | |
| BIRXM-V-050-R040 | 50x1½" | 2¼" | 19.5 | 52.5 | 95 | 55 | 85 | 10 | CAD/Step | |
| BIRXM-V-063-R050 | 63x2" | 2¾" | 24 | 62.5 | 113.5 | 69 | 103 | 10 | CAD/Step |
| Artikel nummer | BIRXM-V-020-R015 |
| VVS-nummer | |
| dxR | 20x1/2" |
| R1 | 1" |
| L1 | 13.5 |
| Z | 37.5 |
| H | 65 |
| K | 25 |
| E | 47 |
| PN | 10 |
| Artikel nummer | BIRXM-V-025-R020 |
| VVS-nummer | |
| dxR | 25x3/4" |
| R1 | 1¼" |
| L1 | 15 |
| Z | 40.5 |
| H | 71.5 |
| K | 32 |
| E | 58 |
| PN | 10 |
| Artikel nummer | BIRXM-V-032-R025 |
| VVS-nummer | |
| dxR | 32x1" |
| R1 | 1½" |
| L1 | 17.5 |
| Z | 42.5 |
| H | 78 |
| K | 38 |
| E | 65 |
| PN | 10 |
| Artikel nummer | BIRXM-V-040-R032 |
| VVS-nummer | |
| dxR | 40x1¼" |
| R1 | 2" |
| L1 | 19.5 |
| Z | 47.5 |
| H | 87 |
| K | 48 |
| E | 78 |
| PN | 10 |
| Artikel nummer | BIRXM-V-050-R040 |
| VVS-nummer | |
| dxR | 50x1½" |
| R1 | 2¼" |
| L1 | 19.5 |
| Z | 52.5 |
| H | 95 |
| K | 55 |
| E | 85 |
| PN | 10 |
| Artikel nummer | BIRXM-V-063-R050 |
| VVS-nummer | |
| dxR | 63x2" |
| R1 | 2¾" |
| L1 | 24 |
| Z | 62.5 |
| H | 113.5 |
| K | 69 |
| E | 103 |
| PN | 10 |
