DU-DOG2E

Dobbeltrør PE100-RC Dogbone type 2

Vis alle mål +

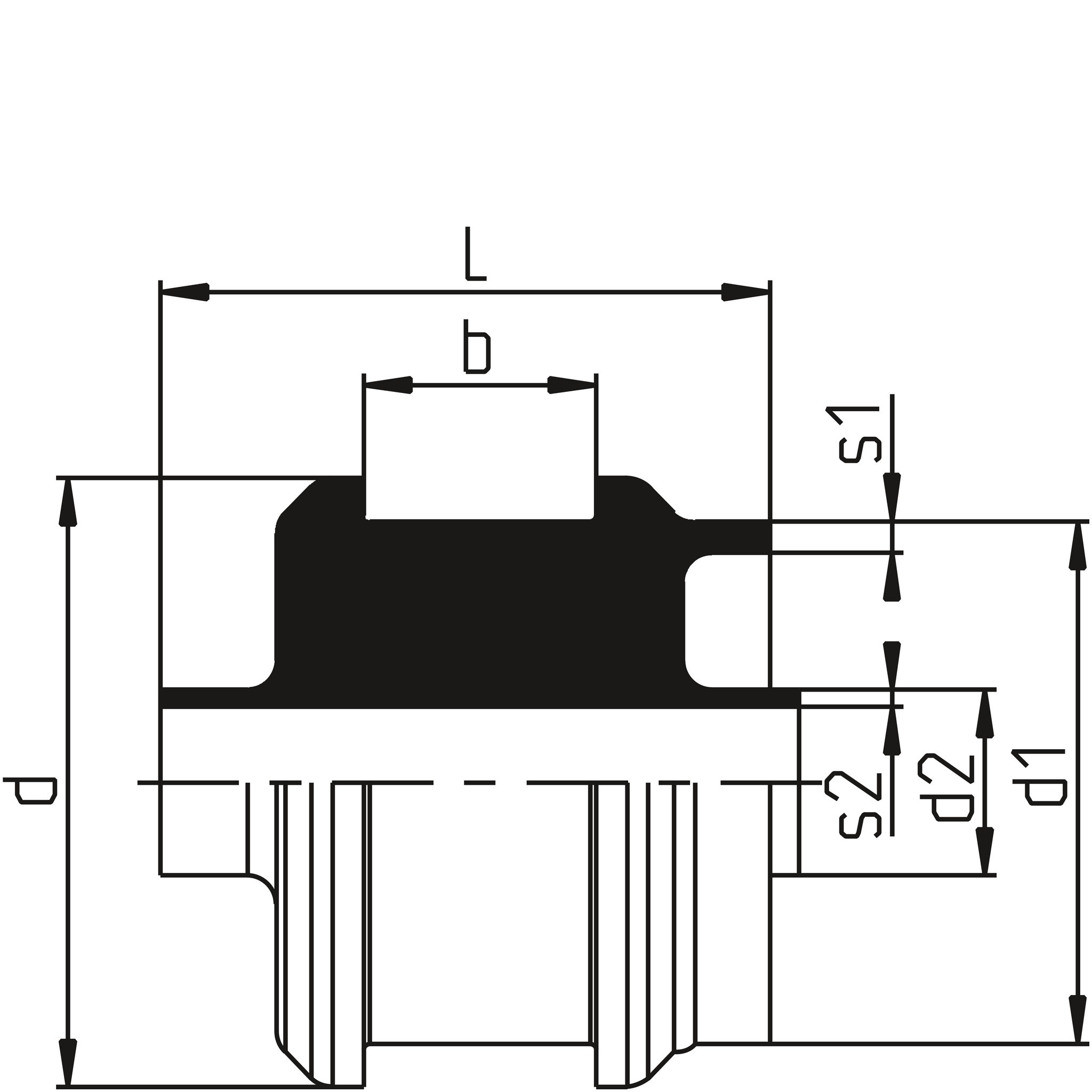

Artikel nummer	d (mm)	SDR	L	s1	s2	d	d1	d2	b
DU-DOG2E11-032	32/90	11/17	100	5.4	2.9	105	90	32	40
DU-DOG2E11-063	63/110	11/33	100	3.4	5.8	127	110	63	40
DU-DOG2E11-090	90/160	11/33	130	4.9	8.2	180	160	90	60
DU-DOG2E11-110	110/200	11/33	140	6.2	10	225	200	110	60
DU-DOG2E11-160	160/280	11/33	145	8.6	14.6	305	280	160	65
DU-DOG2E11-200	200/315	11/33	110	9.7	18.2	340	315	200	65
DU-DOG2E11-250	250/355	11/33	110	10.9	22.8	380	355	250	65
DU-DOG2E17-090	90/160	17/33	130	4.9	5.4	180	160	90	60
DU-DOG2E17-110	110/200	17/33	140	6.2	6.6	225	200	110	60

Datablad
