FKOA/DA-E

ABS Butterflyventil pneumatisk (DA) DN40-300 EPDM

  • ABS FK Butterflyventil
  • Pneumatisk aktuator - dobbeltvirkende (DA)
  • Ventilhus i glasforstærket PP, UV-Stabilt
  • Ventilklap i ABS
  • Spindel AISI316
  • EPDM
  • PN10
  • Tilslutning luft: 1/4" Namur
  • Styretryk: Max. 8 Bar
  • LUG version med indstøbte gevindbøsninger leveres på forespørgsel
  • RAL: 7001

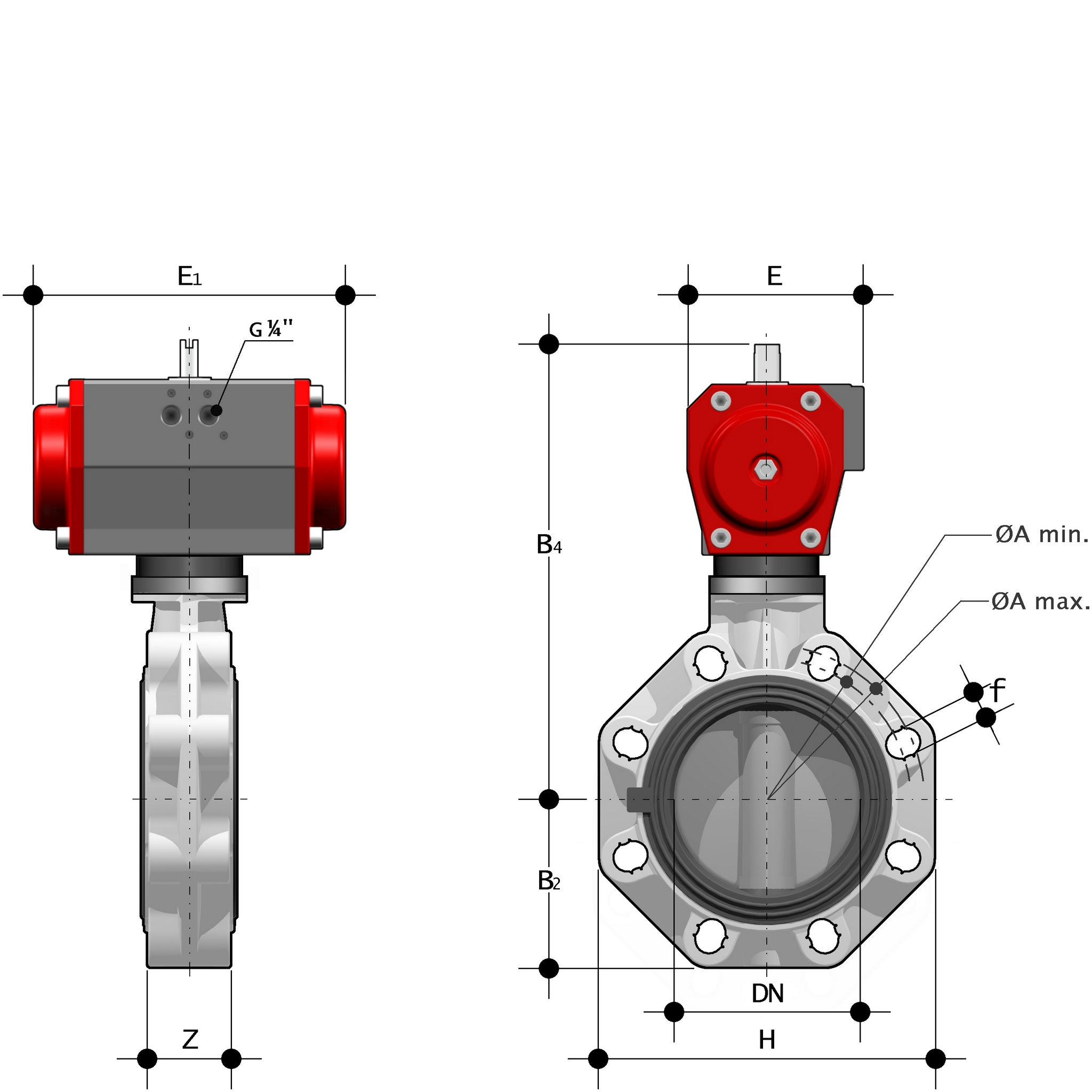

Vis alle mål +
Artikel nummer VVS-nummer dDNLinerZDonMin. styretrykHE1xEB2B4Filer
FKOA/DA-E-050 5040EPDM33PP006 Bar132155x8660209
FKOA/DA-E-063 6350EPDM43PP006 Bar147155x8670215
FKOA/DA-E-075 7565EPDM46PP006 Bar165155x8680222
FKOA/DA-E-090 9080EPDM49PP106 Bar185210x9493253
FKOA/DA-E-110 110100EPDM56PP105 Bar211228x104107110
FKOA/DA-E-140 140125EPDM64PP106 Bar240310x104120297
FKOA/DA-E-160 160150EPDM70PP205 Bar268310x120134325
FKOA/DA-E-225 225200EPDM71PP205 Bar323462x134161399
FKOA/DA-E-280 280250EPDM114PA305 Bar405575x163210210
FKOA/DA-E-315 315300EPDM114PA306 Bar475575x163245245
Datablad
