GDLE11-RC

PE100-RC Multibøjning 90° SDR11 PN16

  • PE100-RC Multibøjning 90°
  • Lange ender til stuk- og elektromuffe svejsning
  • SDR17: Vand PN10, Gas PN6
  • SDR11: Vand PN16, Gas PN10
  • Hvis artikelnummeret indehlder RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +

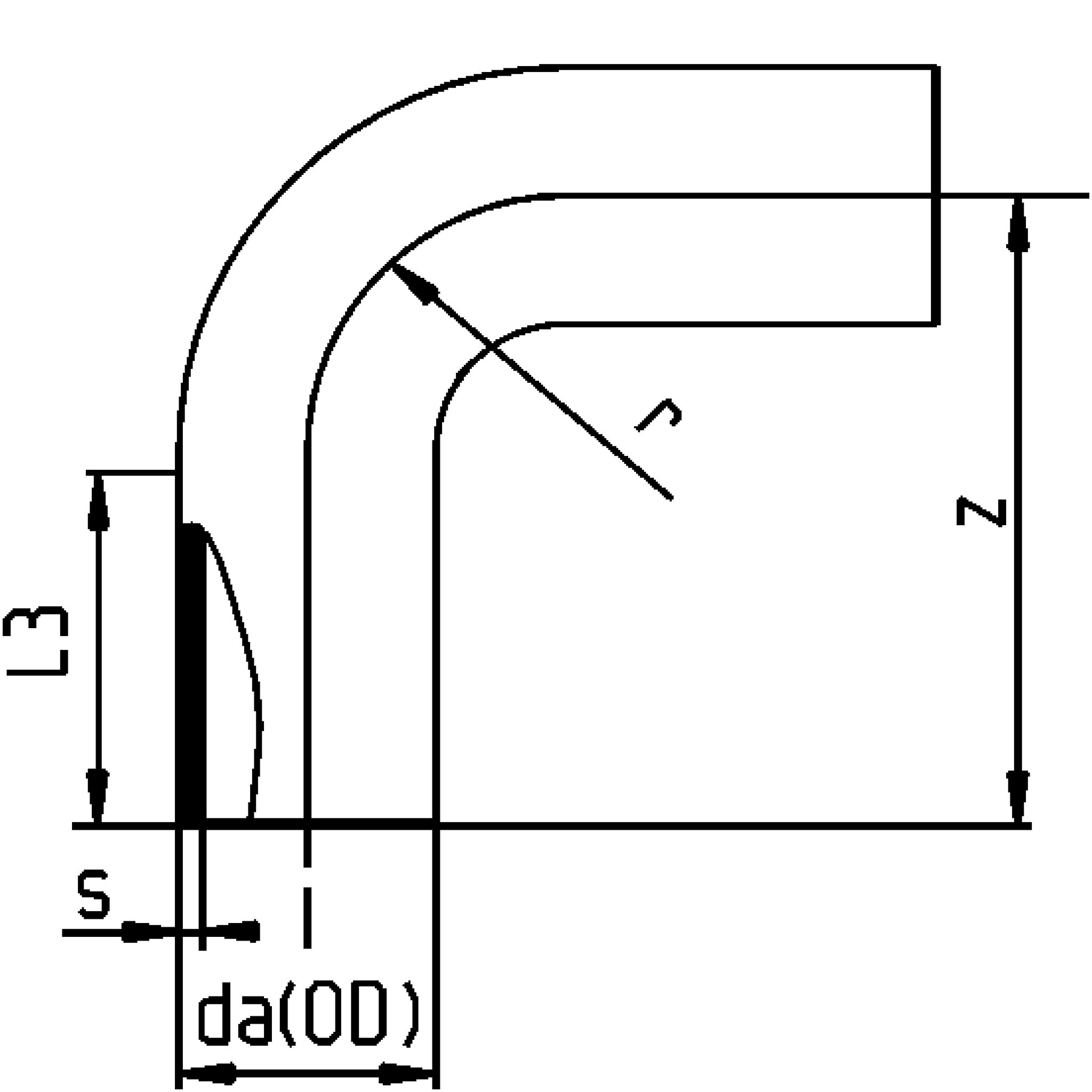

Artikel nummer VVS-nummer da(OD)SDRszrL3Filer
GDLE11-RC-020 077800020 20SDR112602040
GDLE11-RC-025 077800025 25SDR112.368.52542.5
GDLE11-RC-032 077800032 32SDR113793247
GDLE11-RC-040 077800040 40SDR113.792.54052
GDLE11-RC-050 077800050 50SDR114.6108.55058.5
GDLE11-RC-063 077800063 63SDR115.8129.56366.5
GDLE11-RC-075 077800075 75SDR116.81507575
GDLE11-RC-090 077800090 90SDR118.21689076
GDLE11-RC-110 077800110 110SDR111018911082
GDLE11-RC-125 077800125 125SDR1111.421812592
GDLE11-RC-140 077800140 140SDR1112.724114095
GDLE11-RC-160 077800160 160SDR1114.6260160100.5
GDLE11-RC-180 077800180 180SDR1116.4285180109
GDLE11-RC-200 077800200 200SDR1118.2318.5200118.5
GDLE11-RC-225 077800225 225SDR1120.5353225125
GDLE11-RC-250 077800250 250SDR1122.7389250133
GDLE11-RC-280 077800280 280SDR1125.4429280143
GDLE11-RC-315 077800315 315SDR1128.6475315158
