Vis alle mål +

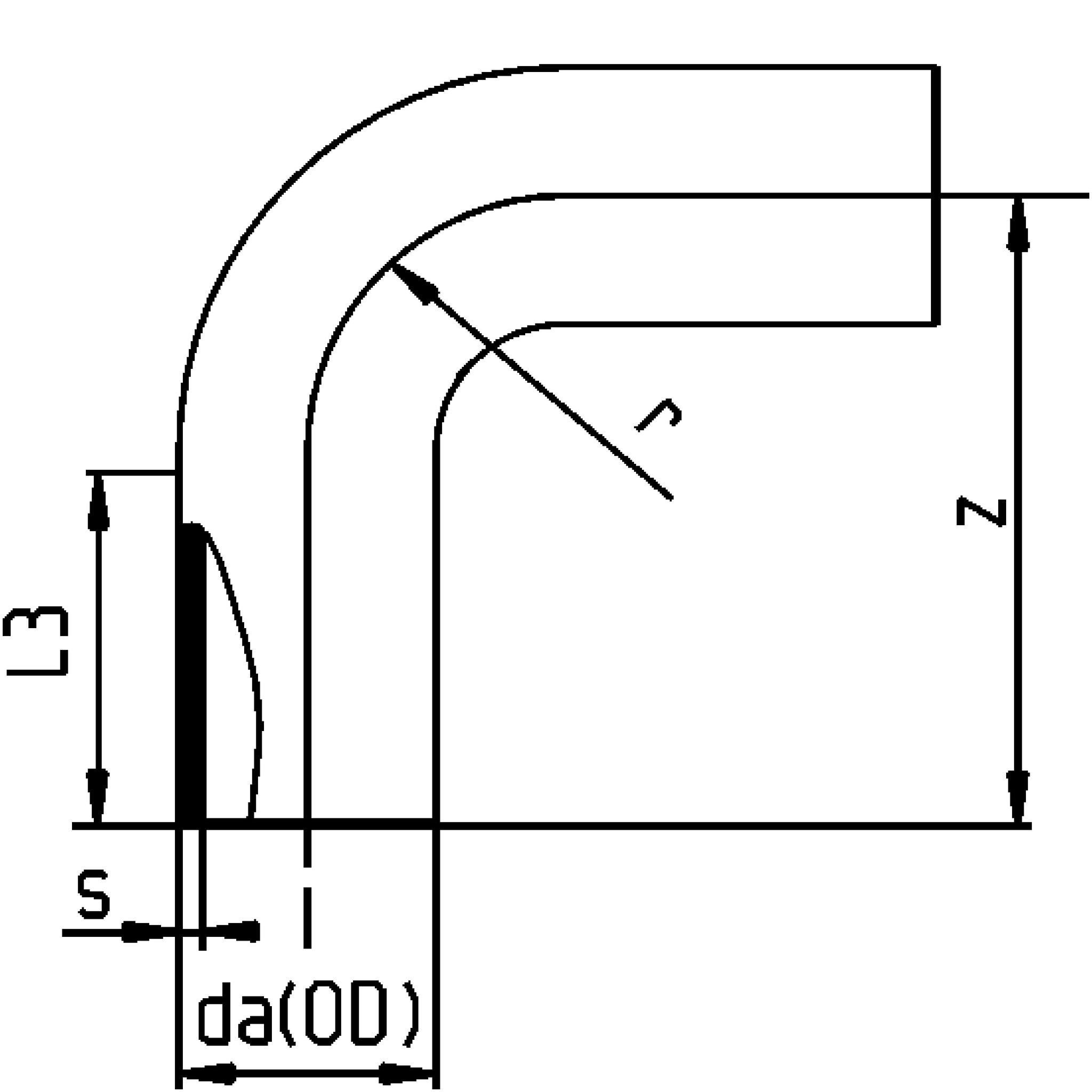

| Artikel nummer | VVS-nummer | da(OD) | SDR | s | z | r | L3 | Filer |
|---|---|---|---|---|---|---|---|---|
| GDLM17-063 | 63 | SDR17 | 3.8 | 129.5 | 63 | 66.5 | CAD/Step | |
| GDLM17-075 | 75 | SDR17 | 4.5 | 150 | 75 | 75 | CAD/Step | |
| GDLM17-090 | 90 | SDR17 | 5.4 | 168 | 90 | 76 | CAD/Step | |
| GDLM17-110 | 110 | SDR17 | 6.6 | 192 | 110 | 82 | CAD/Step | |
| GDLM17-125 | 125 | SDR17 | 7.4 | 218 | 125 | 92 | CAD/Step | |
| GDLM17-140 | 140 | SDR17 | 8.3 | 241 | 140 | 100 | CAD/Step | |
| GDLM17-160 | 160 | SDR17 | 9.5 | 261.5 | 160 | 100.5 | CAD/Step | |
| GDLM17-180 | 180 | SDR17 | 10.7 | 290.5 | 180 | 109 | CAD/Step | |
| GDLM17-200 | 200 | SDR17 | 11.9 | 318.5 | 200 | 118.5 | CAD/Step | |
| GDLM17-225 | 225 | SDR17 | 13.4 | 353 | 225 | 125 | CAD/Step | |
| GDLM17-250 | 250 | SDR17 | 14.8 | 389 | 250 | 135 | CAD/Step | |
| GDLM17-280 | 280 | SDR17 | 16.6 | 429 | 280 | 146 | CAD/Step | |
| GDLM17-315 | 315 | SDR17 | 18.7 | 475 | 315 | 158 | CAD/Step |
