HEL17-RC

PE100-RC Vinkel 45° SDR17 PN10

Vis alle mål +

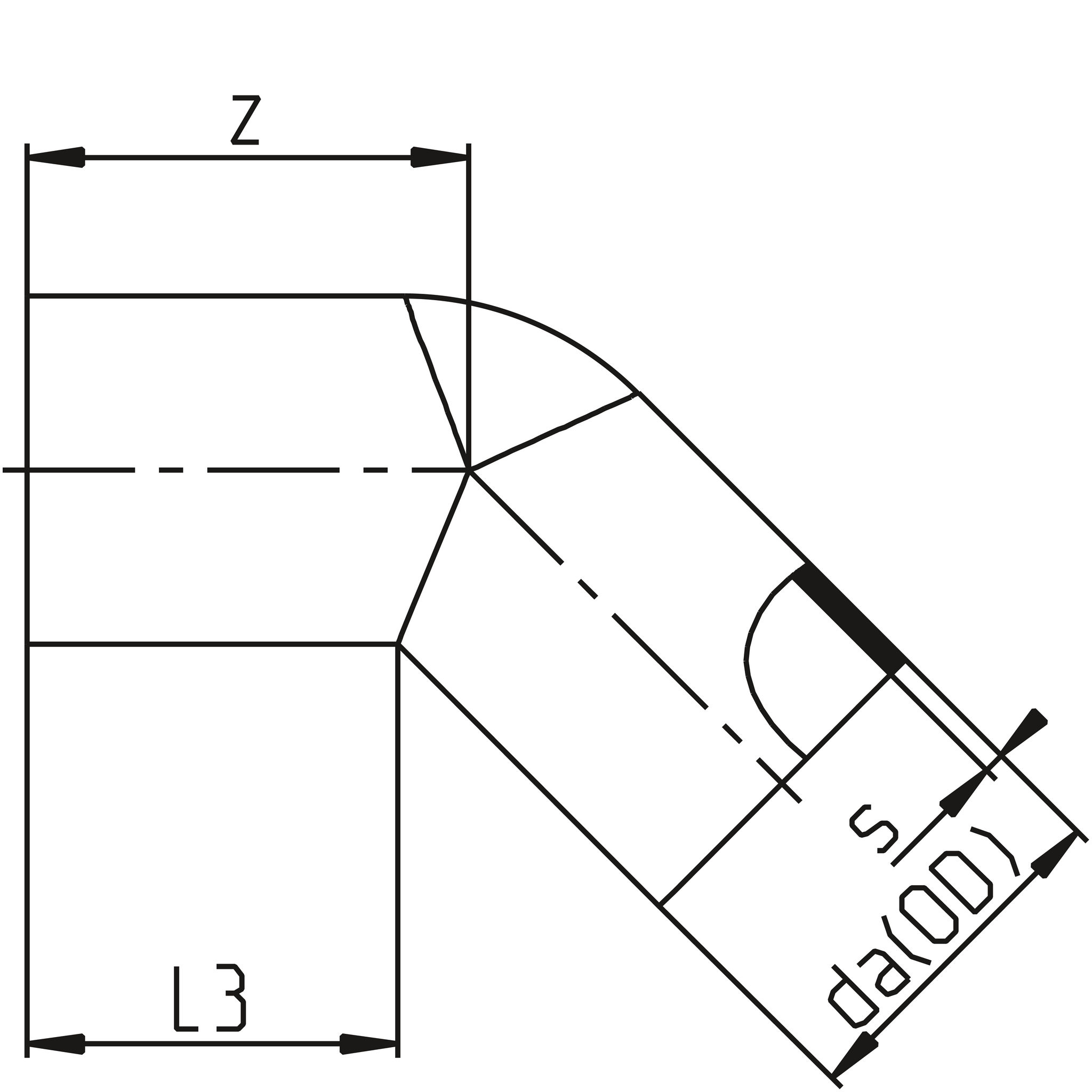

Artikel nummer	VVS-nummer	da(OD)	SDR	s	z	L3
HEL17-RC-063	077708063	63	SDR17	3.8	80	64.5
HEL17-RC-075	077708075	75	SDR17	4.5	90	71
HEL17-RC-090	077708090	90	SDR17	5.4	101	80
HEL17-RC-110	077708110	110	SDR17	6.6	108	83
HEL17-RC-125	077708125	125	SDR17	7.4	130.5	99.5
HEL17-RC-140	077708140	140	SDR17	8.3	134	99
HEL17-RC-160	077708160	160	SDR17	9.5	156	116.5
HEL17-RC-180	077708180	180	SDR17	10.7	174	133.5
HEL17-RC-200	077708200	200	SDR17	11.9	170	120
HEL17-RC-225	077708225	225	SDR17	13.4	184	128
HEL17-RC-250	077708250	250	SDR17	14.8	217	158
HEL17-RC-280	077708280	280	SDR17	16.6	236	174
HEL17-RC-315	077708315	315	SDR17	18.7	251	177
HEL17-355	077708355	355	SDR17	21.1	317	170
HEL17-400	077708400	400	SDR17	23.7	346	187
HEL17-450	077708450	450	SDR17	26.7	375	202
HEL17-500		500	SDR17	29.7	410	222
