PP-R High Purity Overgang SDR11 PN10

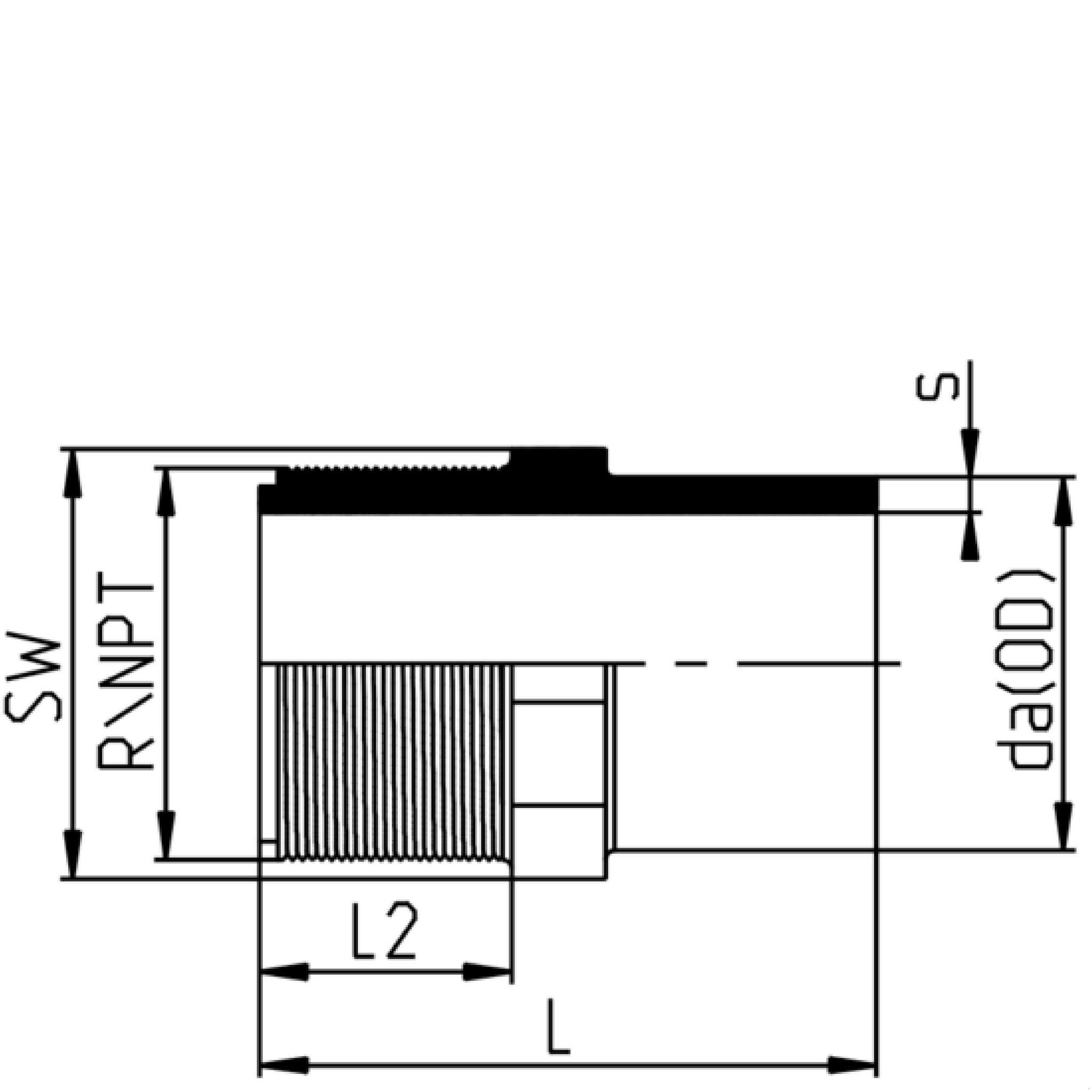

| Artikel nummer | VVS-nummer | da(OD)xR | s | L | L2 | SW | Filer |
|---|---|---|---|---|---|---|---|
| NIFM-HP-063-R050 | 065566563 | 63×2" | 5.8 | 80 | 32.5 | 65 | |
| NIFM-HP-020-R015 | 065566520 | 20×1/2" | 1.9 | 46 | 18 | 22 | |
| NIFM-HP-025-R020 | 065566525 | 25×3/4" | 2.3 | 51 | 20 | 27 | |
| NIFM-HP-032-R025 | 065566532 | 32×1" | 2.9 | 61 | 24 | 36 | |
| NIFM-HP-040-R032 | 065566540 | 40×1 1/4" | 3.7 | 66 | 26.5 | 46 | |
| NIFM-HP-050-R040 | 065566550 | 50×1 1/2" | 4.6 | 74 | 29 | 55 |
| Artikel nummer | NIFM-HP-063-R050 |
| VVS-nummer | 065566563 |
| da(OD)xR | 63×2" |
| s | 5.8 |
| L | 80 |
| L2 | 32.5 |
| SW | 65 |
| Artikel nummer | NIFM-HP-020-R015 |
| VVS-nummer | 065566520 |
| da(OD)xR | 20×1/2" |
| s | 1.9 |
| L | 46 |
| L2 | 18 |
| SW | 22 |
| Artikel nummer | NIFM-HP-025-R020 |
| VVS-nummer | 065566525 |
| da(OD)xR | 25×3/4" |
| s | 2.3 |
| L | 51 |
| L2 | 20 |
| SW | 27 |
| Artikel nummer | NIFM-HP-032-R025 |
| VVS-nummer | 065566532 |
| da(OD)xR | 32×1" |
| s | 2.9 |
| L | 61 |
| L2 | 24 |
| SW | 36 |
| Artikel nummer | NIFM-HP-040-R032 |
| VVS-nummer | 065566540 |
| da(OD)xR | 40×1 1/4" |
| s | 3.7 |
| L | 66 |
| L2 | 26.5 |
| SW | 46 |
| Artikel nummer | NIFM-HP-050-R040 |
| VVS-nummer | 065566550 |
| da(OD)xR | 50×1 1/2" |
| s | 4.6 |
| L | 74 |
| L2 | 29 |
| SW | 55 |
