Name: PE100-RC17-B12-RC
SKU: 55101

PE100-RC17-B12-RC

Agru Sureline I Rør SDR17 PN10 (12-meters)

Vis alle mål +

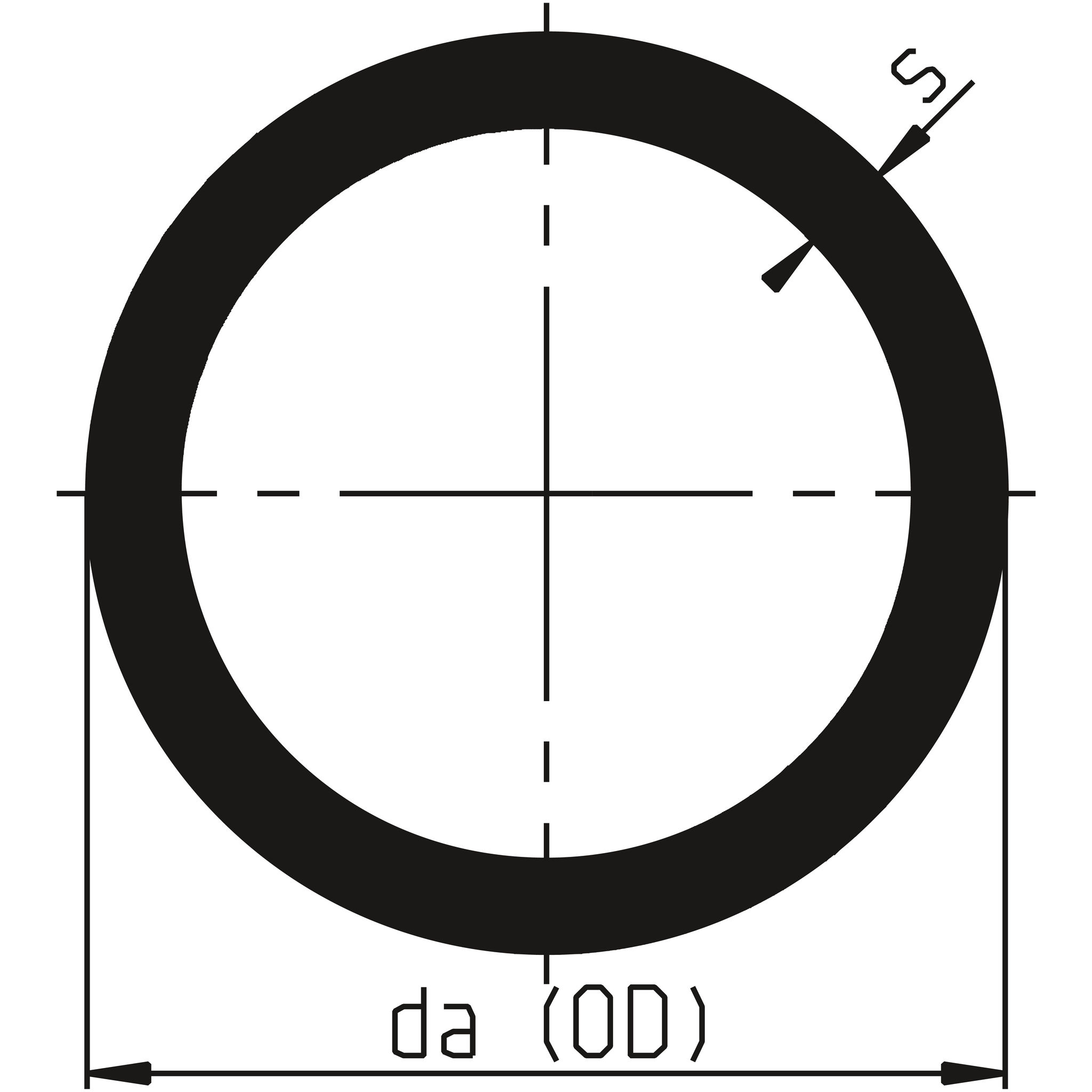

Artikel nummer	da(OD)	s	kg/m	Filer
PE100-RC17-B12-0063	63	3.8	0.728	CAD/Step
PE100-RC17-B12-0075	75	4.5	1.03	CAD/Step
PE100-RC17-B12-0090	90	5.4	1.47	CAD/Step
PE100-RC17-B12-0110	110	6.6	2.19	CAD/Step
PE100-RC17-B12-0125	125	7.4	2.79	CAD/Step
PE100-RC17-B12-0140	140	8.3	3.5	CAD/Step
PE100-RC17-B12-0160	160	9.5	4.57	CAD/Step
PE100-RC17-B12-0180	180	10.7	5.77	CAD/Step
PE100-RC17-B12-0200	200	11.9	7.12	CAD/Step
PE100-RC17-B12-0225	225	13.4	9.03	CAD/Step
PE100-RC17-B12-0250	250	14.8	11.1	CAD/Step
PE100-RC17-B12-0280	280	16.6	13.9	CAD/Step
PE100-RC17-B12-0315	315	18.7	17.6	CAD/Step
PE100-RC17-B12-0355	355	21.1	22.4	CAD/Step
PE100-RC17-B12-0400	400	23.7	28.3	CAD/Step
PE100-RC17-B12-0450	450	26.7	35.8	CAD/Step
PE100-RC17-B12-0500	500	29.7	44.2	CAD/Step
PE100-RC17-B12-0560	560	33.2	55.4	CAD/Step
PE100-RC17-B12-0630	630	37.4	70.2	CAD/Step
PE100-RC17-B12-0710	710	42.1	89	CAD/Step
PE100-RC17-B12-0800	800	47.4	113	CAD/Step
PE100-RC17-B12-0900	900	53.3	143	CAD/Step
PE100-RC17-B12-1000	1000	59.3	176	CAD/Step

Datablad

Produktblad

PE100-RC17-B12-RC
