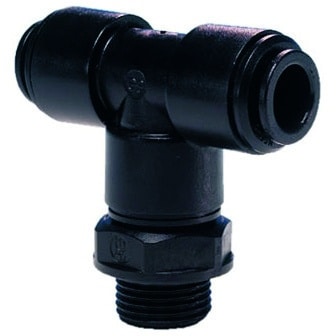

PM10

Acetal T-stykke

  • T-stykke kobling
  • Acetal
  • 2 x Rør/slange - udvendigt gevind
Fjern
Vis alle mål +
Artikel nummer VVS-nummer dxRBCDEFGHIJFiler
PM100411E 4×1/8"35.217.614.3131431.95.52.515.4
PM100412E 4×1/4"35.217.614.3131732.482.518.3
PM100511E 5×1/8"35.217.614.3131431.95.53.415.4
PM100512E 5×1/4"35.217.614.3131732.483.418.3
PM100611E 6×1/8"39.319.615.71515355.54.115.8
PM100612E 6×1/4"39.319.615.7151735.584.118.3
PM100811E 8×1/8"422116.717.81737.85.54.117.8
PM100812E 8×1/4"422116.717.81738.385.618.3
PM100813E 8×3/8"422116.717.822389.35.624.1
PM101012E 10×1/4"50.725.419.719.92043.787.121.8
PM101013E 10×3/8"50.725.419.719.92243.49.3724.1
PM101014E 10×1/2"50.725.419.719.92743.712.57.129.8
PM101213E 12×3/8"6532.525.9232452.19.38.626.4
PM101214E 12×1/2"6532.525.9232752.412.58.629.8
Artikel nummer PM100411E
VVS-nummer
dxR 4×1/8"
B 35.2
C 17.6
D 14.3
E 13
F 14
G 31.9
H 5.5
I 2.5
J 15.4
Artikel nummer PM100412E
VVS-nummer
dxR 4×1/4"
B 35.2
C 17.6
D 14.3
E 13
F 17
G 32.4
H 8
I 2.5
J 18.3
Artikel nummer PM100511E
VVS-nummer
dxR 5×1/8"
B 35.2
C 17.6
D 14.3
E 13
F 14
G 31.9
H 5.5
I 3.4
J 15.4
Artikel nummer PM100512E
VVS-nummer
dxR 5×1/4"
B 35.2
C 17.6
D 14.3
E 13
F 17
G 32.4
H 8
I 3.4
J 18.3
Artikel nummer PM100611E
VVS-nummer
dxR 6×1/8"
B 39.3
C 19.6
D 15.7
E 15
F 15
G 35
H 5.5
I 4.1
J 15.8
Artikel nummer PM100612E
VVS-nummer
dxR 6×1/4"
B 39.3
C 19.6
D 15.7
E 15
F 17
G 35.5
H 8
I 4.1
J 18.3
Artikel nummer PM100811E
VVS-nummer
dxR 8×1/8"
B 42
C 21
D 16.7
E 17.8
F 17
G 37.8
H 5.5
I 4.1
J 17.8
Artikel nummer PM100812E
VVS-nummer
dxR 8×1/4"
B 42
C 21
D 16.7
E 17.8
F 17
G 38.3
H 8
I 5.6
J 18.3
Artikel nummer PM100813E
VVS-nummer
dxR 8×3/8"
B 42
C 21
D 16.7
E 17.8
F 22
G 38
H 9.3
I 5.6
J 24.1
Artikel nummer PM101012E
VVS-nummer
dxR 10×1/4"
B 50.7
C 25.4
D 19.7
E 19.9
F 20
G 43.7
H 8
I 7.1
J 21.8
Artikel nummer PM101013E
VVS-nummer
dxR 10×3/8"
B 50.7
C 25.4
D 19.7
E 19.9
F 22
G 43.4
H 9.3
I 7
J 24.1
Artikel nummer PM101014E
VVS-nummer
dxR 10×1/2"
B 50.7
C 25.4
D 19.7
E 19.9
F 27
G 43.7
H 12.5
I 7.1
J 29.8
Artikel nummer PM101213E
VVS-nummer
dxR 12×3/8"
B 65
C 32.5
D 25.9
E 23
F 24
G 52.1
H 9.3
I 8.6
J 26.4
Artikel nummer PM101214E
VVS-nummer
dxR 12×1/2"
B 65
C 32.5
D 25.9
E 23
F 27
G 52.4
H 12.5
I 8.6
J 29.8
Datablad
