Vis alle mål +

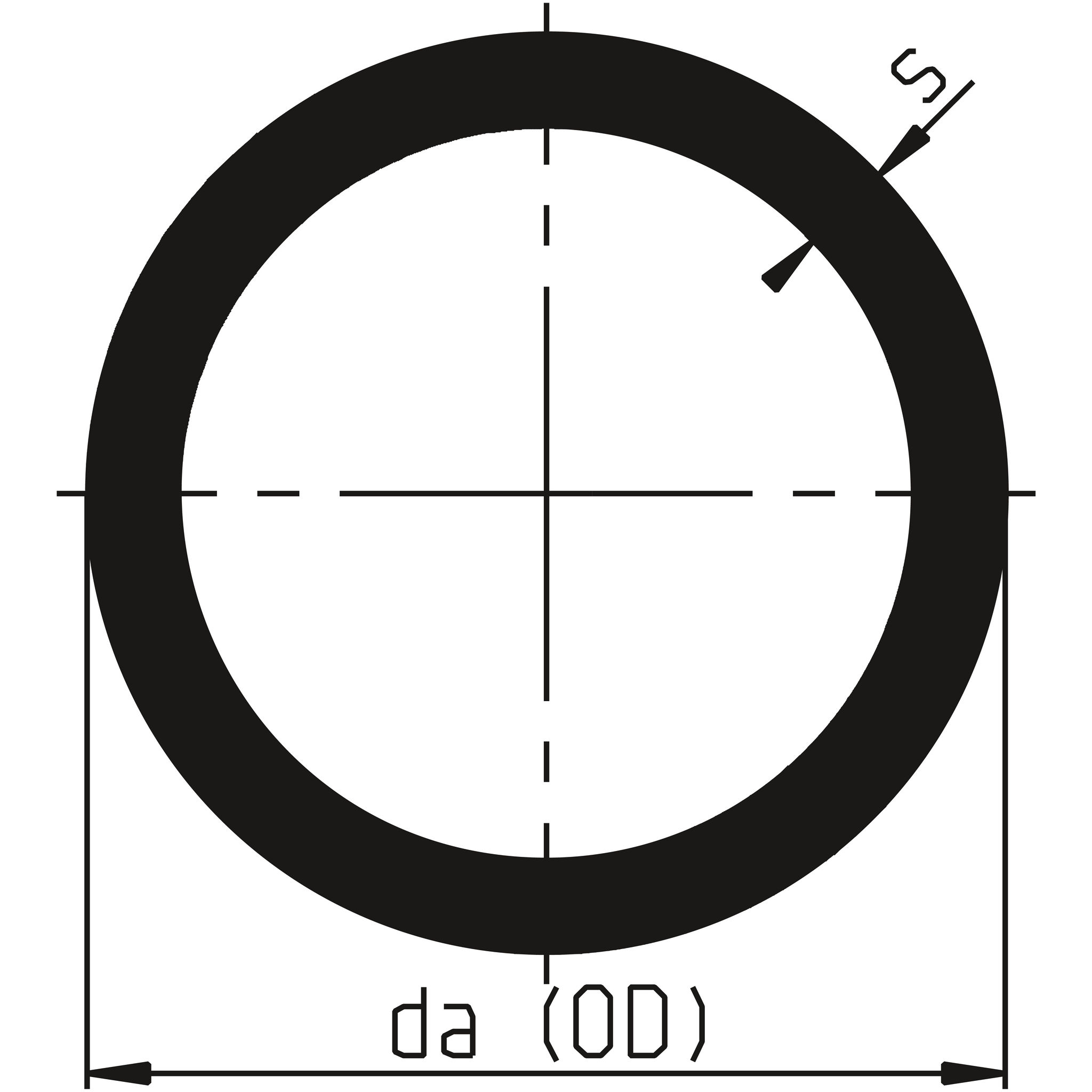

| Artikel nummer | VVS-nummer | da(OD) | s | kg/m | Filer |
|---|---|---|---|---|---|
| PVDF-HP21-020 | 065316520 | 20 | 1.9 | 0.21 | |
| PVDF-HP21-025 | 065316525 | 25 | 1.9 | 0.27 | |
| PVDF-HP21-032 | 065316532 | 32 | 2.4 | 0.44 | |
| PVDF-HP21-040 | 065316540 | 40 | 2.4 | 0.55 | |
| PVDF-HP21-050 | 065316550 | 50 | 3 | 0.85 | |
| PVDF-HP21-063 | 065316563 | 63 | 3 | 1.09 | |
| PVDF-HP21-075 | 065316575 | 75 | 3.6 | 1.55 | |
| PVDF-HP21-090 | 065316590 | 90 | 4.3 | 2.22 | |
| PVDF-HP21-110 | 065316610 | 110 | 5.3 | 3.32 | |
| PVDF-HP21-125 | 065316625 | 125 | 6 | 4.24 | |
| PVDF-HP21-140 | 065316640 | 140 | 6.7 | 5.31 | |
| PVDF-HP21-160 | 065316660 | 160 | 7.7 | 6.96 | |
| PVDF-HP21-180 | 065316680 | 180 | 8.6 | 8.74 | |
| PVDF-HP21-200 | 065316700 | 200 | 9.6 | 10.74 | |
| PVDF-HP21-225 | 065316725 | 225 | 10.8 | 13.67 | |
| PVDF-HP21-250 | 065316750 | 250 | 11.9 | 16.73 | |
| PVDF-HP21-280 | 065316780 | 280 | 13.4 | 21.11 | |
| PVDF-HP21-315 | 065316815 | 315 | 15 | 26.5 |
