REL-EX11-RC

PE100-RC Reduktion excentrisk SDR11 PN16

  • PE100-RC Reduktion
  • Excentrisk
  • Lange ender til stuk- og elektromuffesvejsning
  • SDR11: Vand PN16, Gas PN10
  • Hvis artikelnummeret indeholder RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +

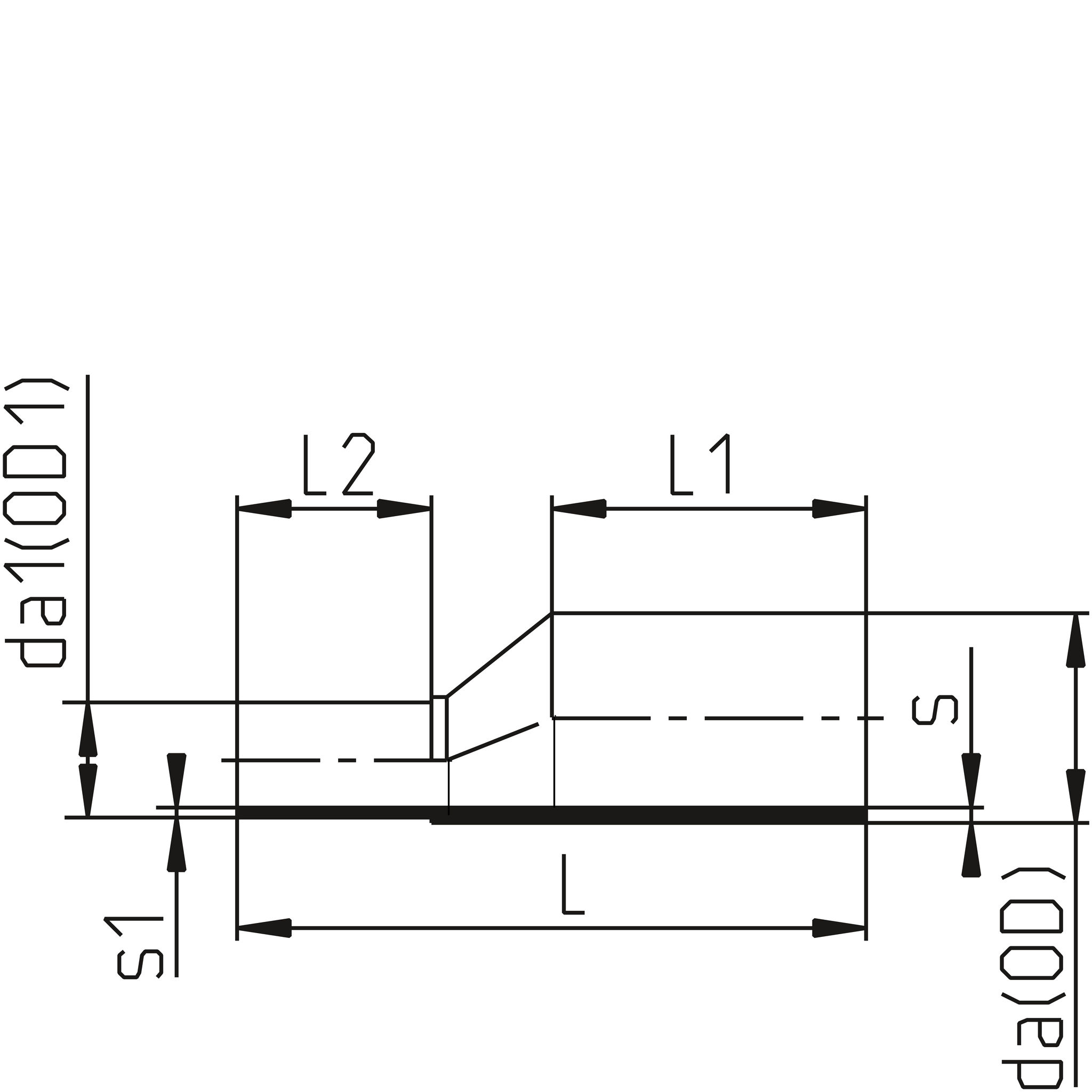

Artikel nummer VVS-nummer da*da1SDRsLs1L1L2Filer
REL-EX11-RC-025-020 25×20SDR11310335138
REL-EX11-RC-032-025 32×25SDR11311435640
REL-EX11-RC-040-025 40×25SDR113.712636040
REL-EX11-RC-040-032 077894040 40×32SDR113.712535944
REL-EX11-RC-050-032 077895050 50×32SDR114.615637145
REL-EX11-RC-050-040 077894050 50×40SDR114.61573.77149
REL-EX11-RC-063-032 077896063 63×32SDR115.817737545
REL-EX11-RC-063-040 077895063 63×40SDR115.81773.77649
REL-EX11-RC-063-050 077894063 63×50SDR115.81774.67656
REL-EX11-RC-075-050 75×50SDR116.81974.68257
REL-EX11-RC-075-063 077894075 75×63SDR116.81975.88363
REL-EX11-RC-090-063 90×63SDR118.22135.89264
REL-EX11-RC-090-075 90×75SDR118.22236.89369
REL-EX11-RC-110-063 110×63SDR11102475.89963
REL-EX11-RC-110-090 110×90SDR11102448.29879
REL-EX11-RC-125-063 125×63SDR1111.42685.810563
REL-EX11-RC-125-090 125×90SDR1111.42658.2106.579
REL-EX11-RC-125-110 125×110SDR1111.42601010387
REL-EX11-RC-140-125 140×125SDR1112.728311.4109.595
REL-EX11-RC-160-090 160×90SDR1114.63098.2117.579
REL-EX11-RC-160-110 160×110SDR1114.630910115.587
REL-EX11-RC-160-125 160×125SDR1114.630911.4116.591
REL-EX11-RC-160-140 160×140SDR1114.630812.7116.597.5
REL-EX11-RC-180-090 180×90SDR1116.43488.2128.579
REL-EX11-RC-180-125 180×125SDR1116.435311.413093
REL-EX11-RC-180-160 180×160SDR1116.435314.6130104
REL-EX11-RC-200-160 200×160SDR1118.237314.6138.5104
REL-EX11-RC-200-180 200×180SDR1118.237316.4143.5111
REL-EX11-RC-225-160 225×160SDR1120.540514.6154.5100
REL-EX11-RC-225-180 225×180SDR1120.540316.4154.5110
REL-EX11-RC-225-200 225×200SDR1120.540318.2155.5126
REL-EX11-RC-250-200 250×200SDR1122.744018.2180120
REL-EX11-RC-250-225 250×225SDR1122.744020.5179125
