PP-R High Purity Overgang SDR11 PN10

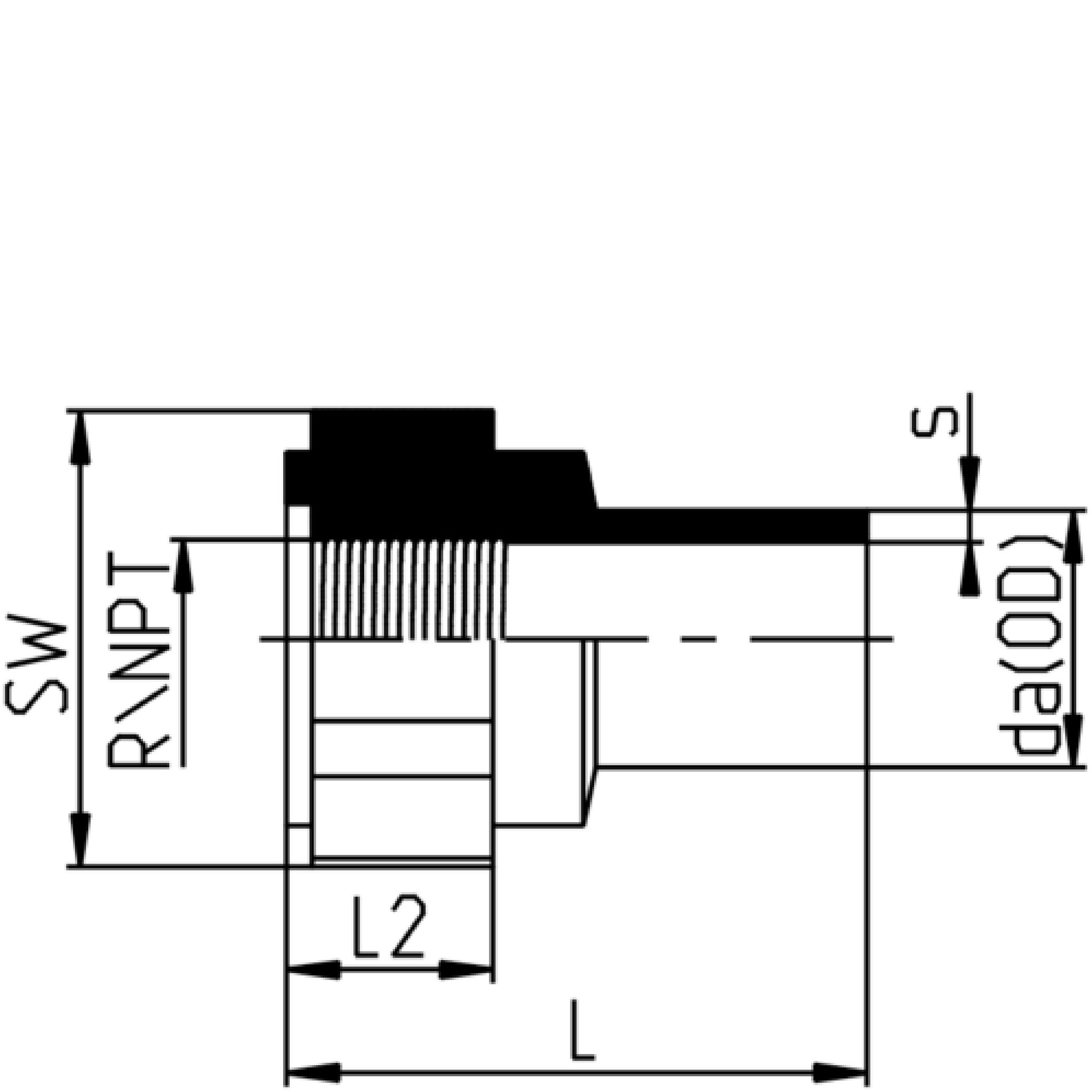

| Artikel nummer | VVS-nummer | da(OD) | s | L | L2 | SW | R | Filer |
|---|---|---|---|---|---|---|---|---|
| RIFM-HP020-R015 | 065467720 | 20 | 1.9 | 45 | 16 | 32 | 1/2" | |
| RIFM-HP025-R020 | 065467725 | 25 | 2.3 | 51 | 18 | 41 | 3/4" | |
| RIFM-HP032-R025 | 065467732 | 32 | 2.9 | 58 | 20 | 46 | 1" | |
| RIFM-HP040-R032 | 065467740 | 40 | 3.7 | 62 | 24 | 55 | 1¼" | |
| RIFM-HP050-R040 | 065467750 | 50 | 4.6 | 68 | 25.5 | 70 | 1½" | |
| RIFM-HP063-R050 | 065467763 | 63 | 5.8 | 75 | 30 | 85 | 2" |
| Artikel nummer | RIFM-HP020-R015 |
| VVS-nummer | 065467720 |
| da(OD) | 20 |
| s | 1.9 |
| L | 45 |
| L2 | 16 |
| SW | 32 |
| R | 1/2" |
| Artikel nummer | RIFM-HP025-R020 |
| VVS-nummer | 065467725 |
| da(OD) | 25 |
| s | 2.3 |
| L | 51 |
| L2 | 18 |
| SW | 41 |
| R | 3/4" |
| Artikel nummer | RIFM-HP032-R025 |
| VVS-nummer | 065467732 |
| da(OD) | 32 |
| s | 2.9 |
| L | 58 |
| L2 | 20 |
| SW | 46 |
| R | 1" |
| Artikel nummer | RIFM-HP040-R032 |
| VVS-nummer | 065467740 |
| da(OD) | 40 |
| s | 3.7 |
| L | 62 |
| L2 | 24 |
| SW | 55 |
| R | 1¼" |
| Artikel nummer | RIFM-HP050-R040 |
| VVS-nummer | 065467750 |
| da(OD) | 50 |
| s | 4.6 |
| L | 68 |
| L2 | 25.5 |
| SW | 70 |
| R | 1½" |
| Artikel nummer | RIFM-HP063-R050 |
| VVS-nummer | 065467763 |
| da(OD) | 63 |
| s | 5.8 |
| L | 75 |
| L2 | 30 |
| SW | 85 |
| R | 2" |
