Name: RIM-A
SKU: 10113

Vis alle mål +

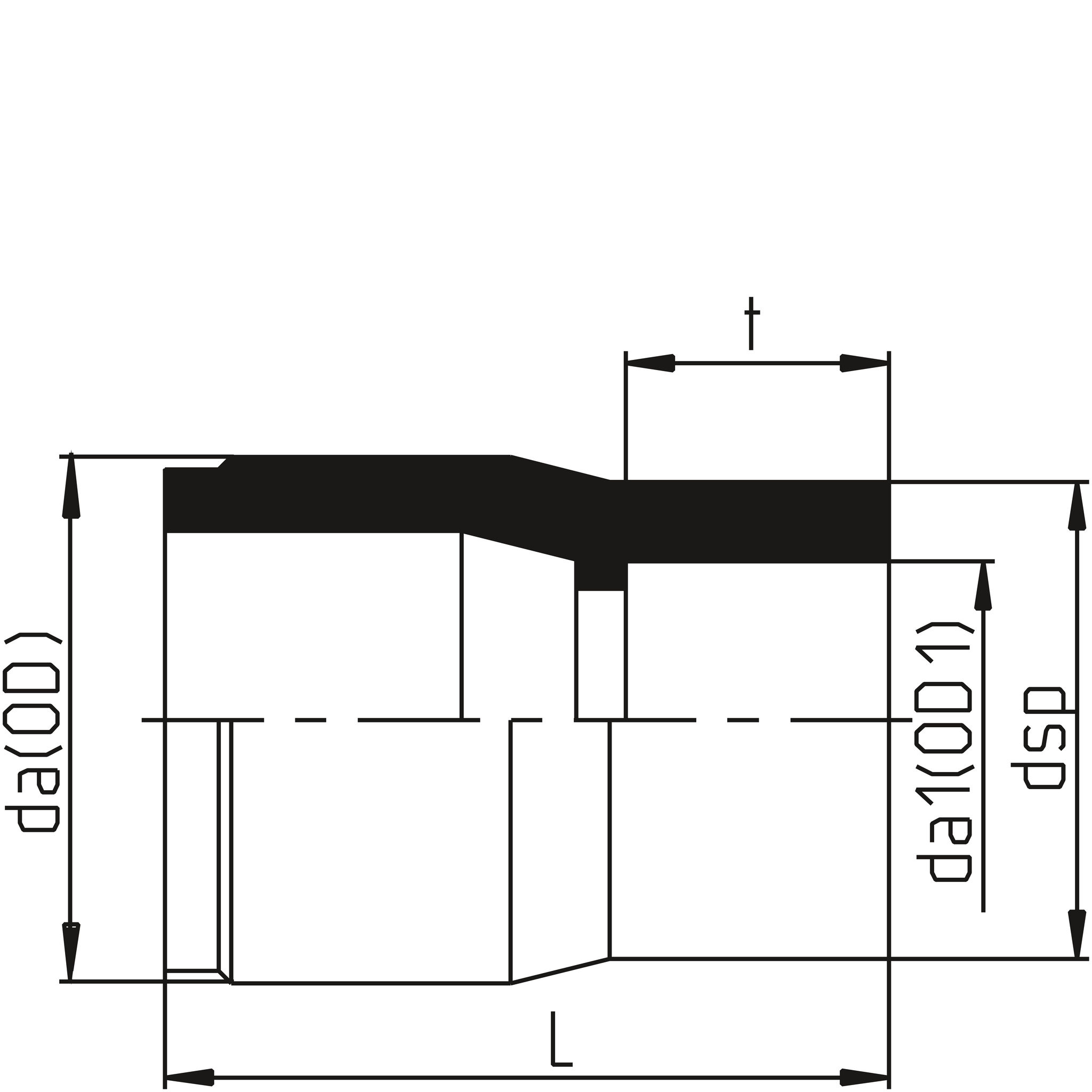

Artikel nummer	da(OD)	da1(OD1)	dsp	L	t	Filer
RIM 020-016	20	16	28	35	22
RIM-A 025-020	25	20	29.5	39	16	CAD/Step
RIM-A 032-020	32	20	29	44.5	16	CAD/Step
RIM-A 032-025	32	25	34.5	45	17	CAD/Step
RIM-A 040-020	40	20	29.5	50	15	CAD/Step
RIM-A 040-025	40	25	34.5	50	17	CAD/Step
RIM-A 040-032	40	32	42.8	50	19	CAD/Step
RIM-A 050-025	50	25	34.7	34.7	18	CAD/Step
RIM-A 050-032	50	32	42.5	42.5	18.1	CAD/Step
RIM-A 050-040	50	40	52.8	52.8	26	CAD/Step
RIM-A 063-032	63	32	42.9	65	18.5	CAD/Step
RIM-A 063-040	63	40	52.8	64.5	21.5	CAD/Step
RIM-A 063-050	63	50	64.8	65	25	CAD/Step
RIM-A 075-050	75	50	81.5	64	29	CAD/Step
RIM-A 075-063	75	63	81.5	64	29	CAD/Step
RIM-A 090-063	90	63	81.5	87.5	29	CAD/Step
RIM-A 090-075	90	75	93	86.6	32	CAD/Step
RIM-A 110-063	110	63	81.2	90	29	CAD/Step
RIM-A 110-090	110	90	113	88	37	CAD/Step

Datablad

Produktblad

RIM-A
