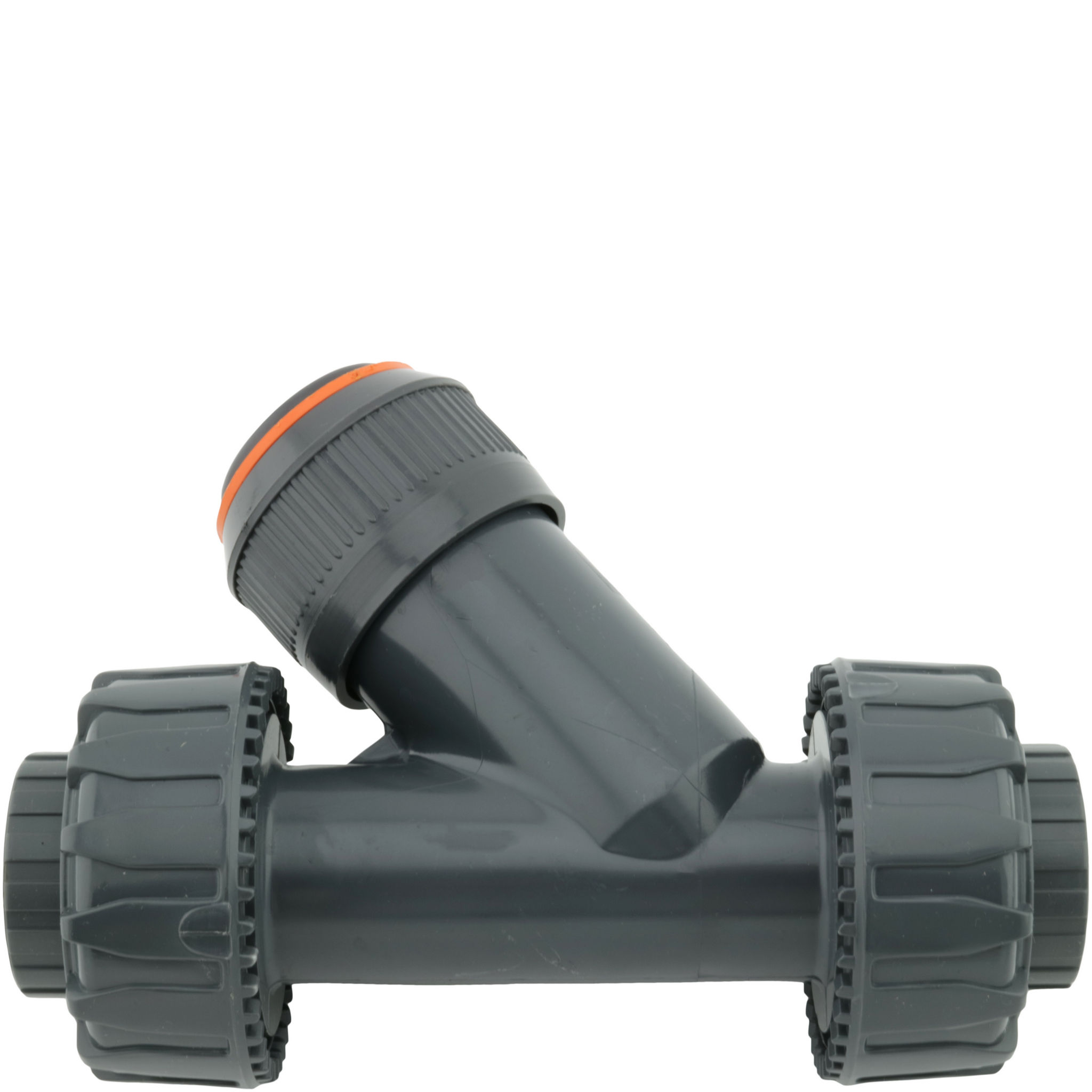

PVC Skråsædefilter, indv. gevind m. union DN10-50

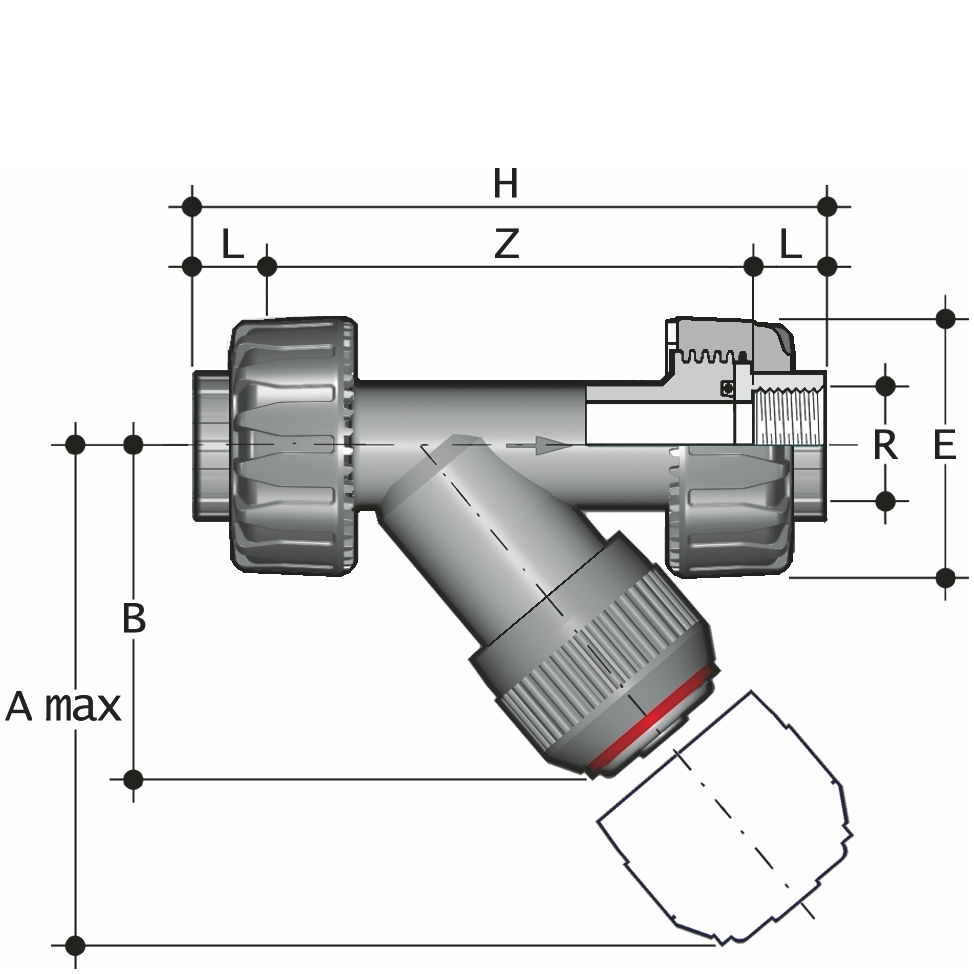

| Artikel nummer | VVS-nummer | R | DN | A max | B | E | L | Z | H | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| RVUFV R010 | 3/8" | 10 | 125 | 72 | 55 | 11.4 | 112.2 | 135 | CAD/Step | |
| RVUFV R015 | 1/2" | 15 | 125 | 72 | 55 | 15 | 112 | 142 | CAD/Step | |
| RVUFV R020 | 3/4" | 20 | 145 | 84 | 66 | 16.3 | 126.4 | 159 | CAD/Step | |
| RVUFV R025 | 1" | 25 | 165 | 95 | 75 | 19.1 | 144.8 | 183 | CAD/Step | |
| RVUFV R032 | 1 1/4" | 32 | 190 | 111 | 87 | 21.4 | 171.2 | 214 | CAD/Step | |
| RVUFV R040 | 1 1/2" | 40 | 210 | 120 | 100 | 21.4 | 192.2 | 235 | CAD/Step | |
| RVUFV R050 | 2" | 50 | 240 | 139 | 120 | 25.7 | 233.6 | 285 | CAD/Step |
| Artikel nummer | RVUFV R010 |
| VVS-nummer | |
| R | 3/8" |
| DN | 10 |
| A max | 125 |
| B | 72 |
| E | 55 |
| L | 11.4 |
| Z | 112.2 |
| H | 135 |
| Artikel nummer | RVUFV R015 |
| VVS-nummer | |
| R | 1/2" |
| DN | 15 |
| A max | 125 |
| B | 72 |
| E | 55 |
| L | 15 |
| Z | 112 |
| H | 142 |
| Artikel nummer | RVUFV R020 |
| VVS-nummer | |
| R | 3/4" |
| DN | 20 |
| A max | 145 |
| B | 84 |
| E | 66 |
| L | 16.3 |
| Z | 126.4 |
| H | 159 |
| Artikel nummer | RVUFV R025 |
| VVS-nummer | |
| R | 1" |
| DN | 25 |
| A max | 165 |
| B | 95 |
| E | 75 |
| L | 19.1 |
| Z | 144.8 |
| H | 183 |
| Artikel nummer | RVUFV R032 |
| VVS-nummer | |
| R | 1 1/4" |
| DN | 32 |
| A max | 190 |
| B | 111 |
| E | 87 |
| L | 21.4 |
| Z | 171.2 |
| H | 214 |
| Artikel nummer | RVUFV R040 |
| VVS-nummer | |
| R | 1 1/2" |
| DN | 40 |
| A max | 210 |
| B | 120 |
| E | 100 |
| L | 21.4 |
| Z | 192.2 |
| H | 235 |
| Artikel nummer | RVUFV R050 |
| VVS-nummer | |
| R | 2" |
| DN | 50 |
| A max | 240 |
| B | 139 |
| E | 120 |
| L | 25.7 |
| Z | 233.6 |
| H | 285 |
