Vis alle mål +

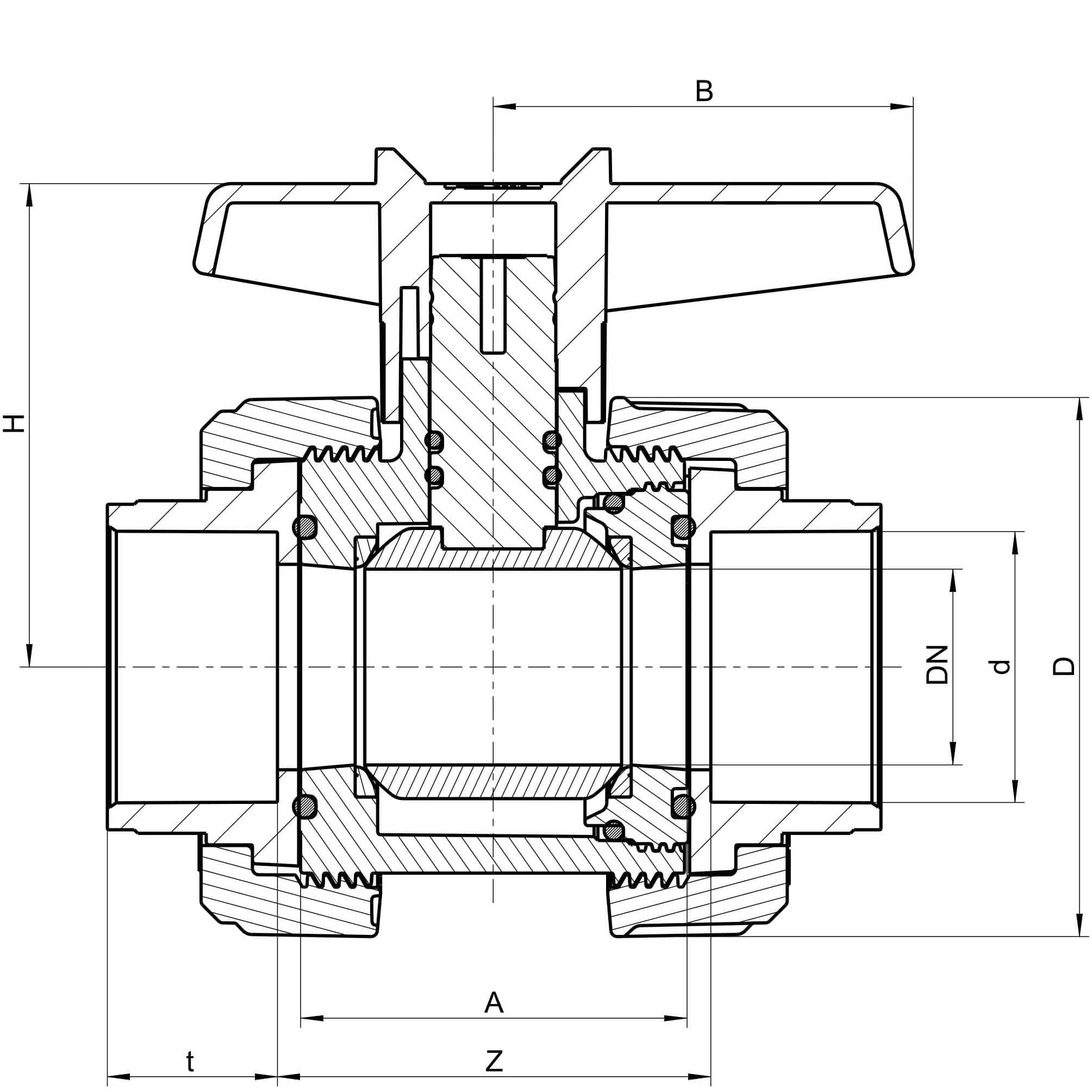

| Artikel nummer | VVS-nummer | d | DN | D | A | H | B | Z | t | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| S6IU-V-016 | 16 | 10 | 55.5 | 44.5 | 47 | 42.5 | 49.5 | 16.5 | CAD/Step | |
| S6IU-V-020 | 20 | 15 | 55.5 | 44.5 | 47 | 42.5 | 49.5 | 16.5 | CAD/Step | |
| S6IU-V-025 | 25 | 20 | 62 | 50 | 53 | 55 | 56 | 19.5 | CAD/Step | |
| S6IU-V-032 | 32 | 25 | 70 | 52.5 | 55.5 | 55 | 58.5 | 23 | CAD/Step | |
| S6IU-V-040 | 40 | 32 | 87 | 61 | 76 | 65 | 67.5 | 26.5 | CAD/Step | |
| S6IU-V-050 | 50 | 40 | 101.5 | 77 | 88.5 | 75 | 87 | 31.5 | CAD/Step | |
| S6IU-V-063 | 63 | 50 | 115.3 | 87 | 95 | 75 | 99 | 38.5 | CAD/Step | |
| S6IU-V-075 | 75 | 65 | 144.5 | 110 | 126 | 111 | 121.5 | 45 | CAD/Step | |
| S6IU-V-090 | 90 | 80 | 188 | 163 | 160 | 133 | 183 | 55.5 | CAD/Step | |
| S6IU-V-110 | 062204310 | 110 | 80 | 188 | 163 | 160 | 133 | 176 | 64 |
