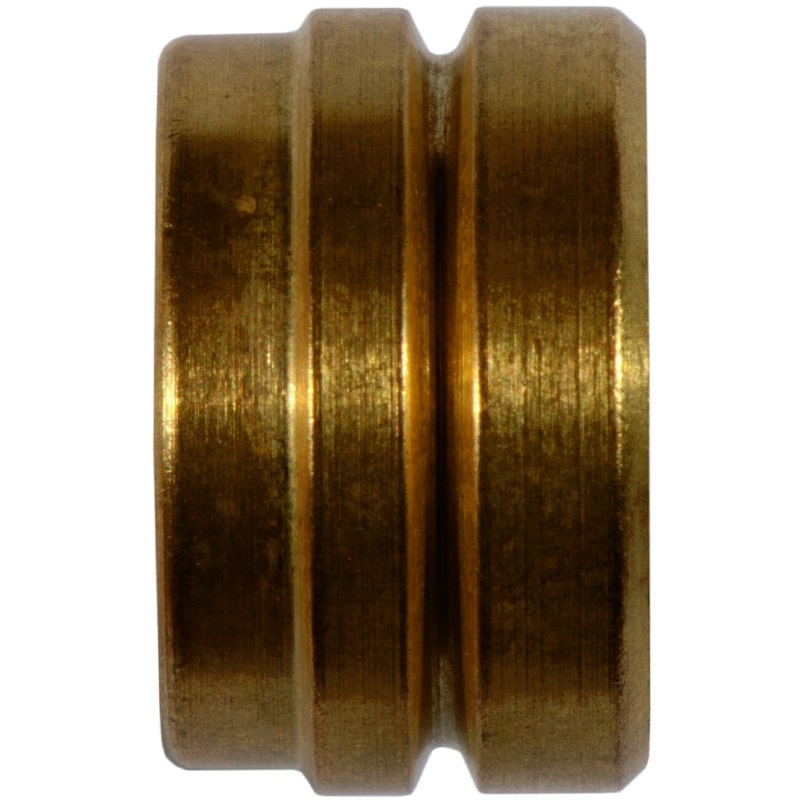

Name: SO 40001
SKU: 41372

Vis alle mål +

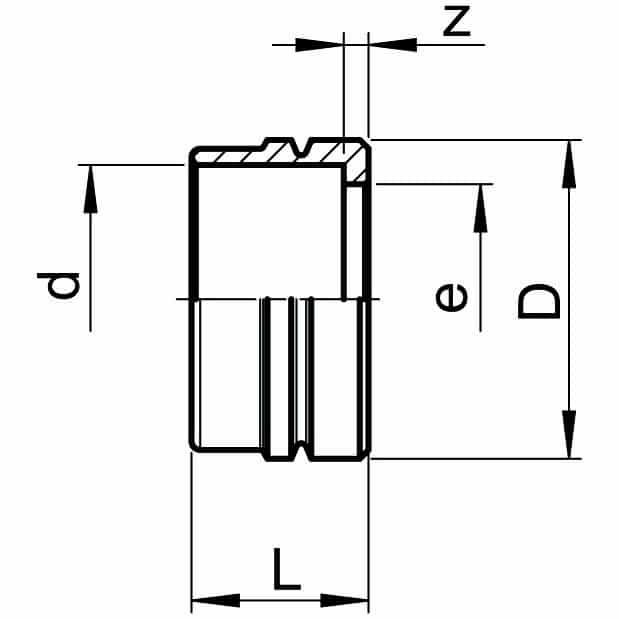

Artikel nummer	VVS-nummer	d	bar	L	D	z	e
0160010020		2	125	3.5	5	0.6	1.5
0160010030		3	125	4.5	5	0.8	2.5
0160010040		4	125	5	6	1	3.4
0160010050		5	125	5.5	6.8	1	4
0160010060		6	250	6.5	8.4	1.2	4.5
0160010080		8	150	7	10.5	1.2	6.5
0160010100		10	125	7.8	12.7	1.2	8.5
0160010120		12	100	8.8	14.7	1.2	10
0160010140		14	40	10	17.5	1.4	12
0160010150		15	40	10	18	1.4	13
0160010160		16	40	11.7	21	1.4	14
0160010170		17	40	11.7	21	1.4	15
0160010180		18	40	11.7	22	1.4	16
0160010220		22	25	13	26	1.4	20
0160010280		28	16	15.4	32.5	2	24
0160010350		35	16	17	39.5	2	32.5
0160010032		3.2	125	4.5	5	0.8	2.5
0160010063		6.35	250	6.5	8.4	1.2	4.5
0160010079	(VVS 044880.794)	8	150	7	10.5	1.2	6.5
0160010095		9.52	125	7.8	12	1.2	8
0160010158		16	40	11.7	21	1.4	14
0160010222		22.22	25	13.5	26	1.4	20

Datablad

Produktblad

SO 40001
