Name: SO 6335
SKU: 42083

Vis alle mål +

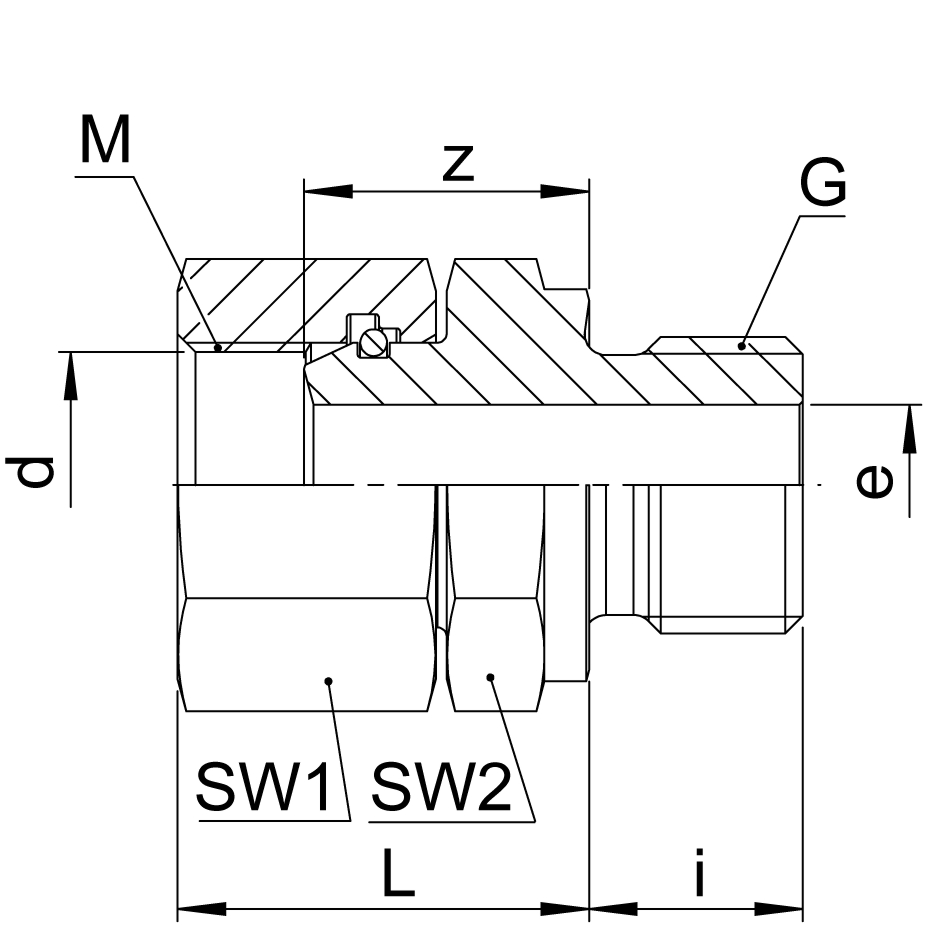

Artikel nummer	d	G	bar	M	SW1/SW2	L	D	i	t	z/e
2181651100	6	1/8"	250	12x1,5	14/14	20	14.5	8	1	14/4
2181651170	8	1/4"	250	14x1,5	17/17	22	17.5	12	1.5	16/6
2181651270	10	1/4"	200	16x1,5	19/19	23.5	18.5	12	1.5	16/7
2181651390	12	3/8"	200	18x1,5	22/22	24	22.5	12	2	17/9
2181651504	14	1/2"	160	22x1,5	27/27	28	27	14	2.5	19/11
2181651534	15	1/2"	160	22x1,5	27/27	28	27	14	2.5	19/11
2181651566	16	1/2"	160	24x1,5	30/27	29	27	14	1.5	20/12
2181651646	18	1/2"	160	26x1,5	32/27	29	27	14	1.5	20/14
2181651648	18	3/4"	160	26x1,5	32/32	29	33	16	1.5	20/16
2181651706	20	1/2"	160	26x1,5	32/27	29	27	14	1.5	20/14
2181651708	20	3/4"	160	26x1,5	32/32	29	27	16	1.5	20/16
2181651768	22	3/4"	160	30x2	36/36	32	33	16	1.5	22/18
2181651810	25	1"	160	33x2	41/41	36.5	40	18	2.5	24,5/20
2181651850	28	1"	160	36x2	41/41	34.5	40	18	1.5	24,5/23

Datablad

Produktblad

SO 6335
