Name: SO NV 41A30
SKU: 41771

Vis alle mål +

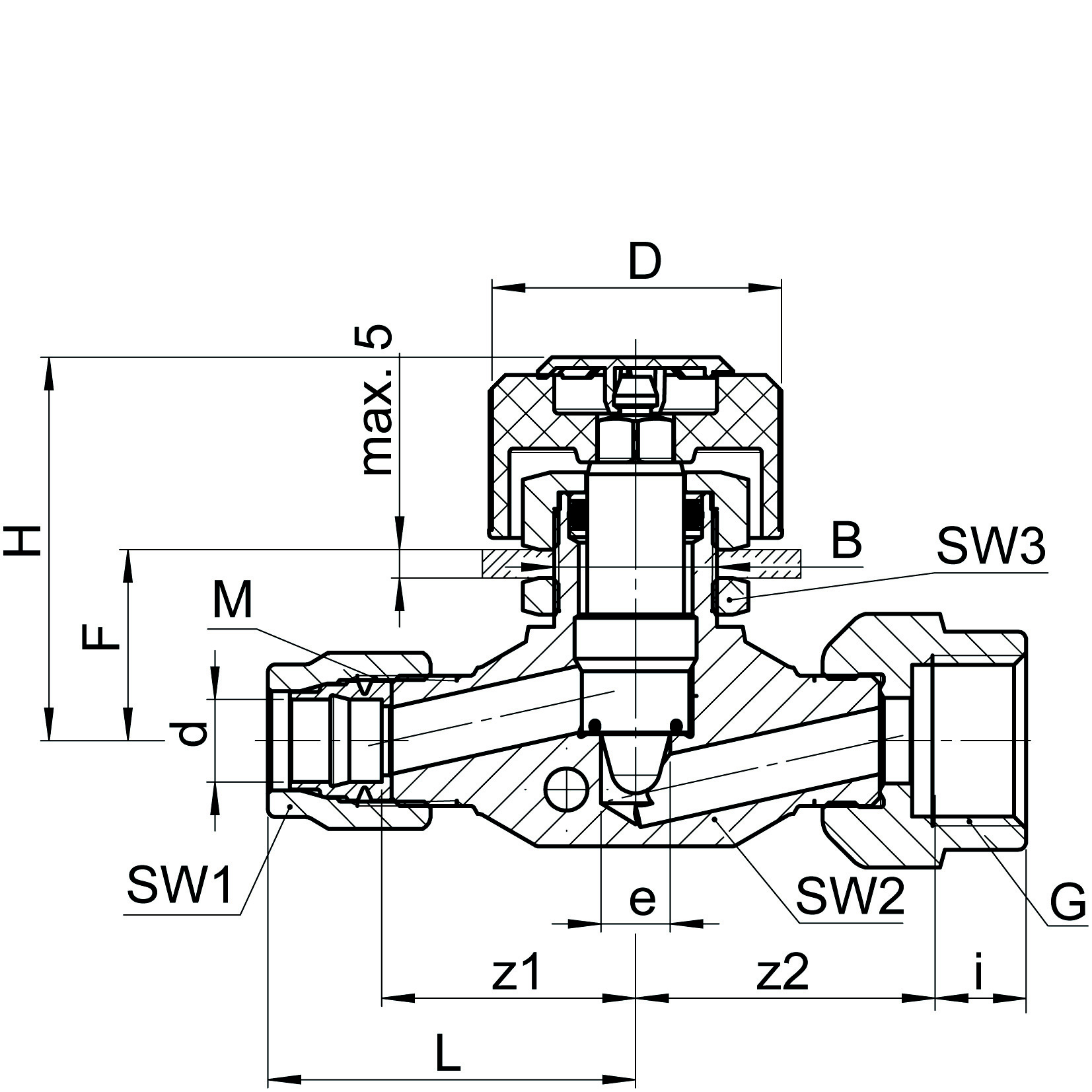

Artikel nummer	d	G	bar	M	SW1/SW2/SW3	L	H	F	i	z1/z2
0280200060	4	1/8	50	10 x 1	12/14/19	30.5	47	19	8	23/28
0280200082	5	1/8	50	10 x 1	12/14/19	30.5	47	19	8	23/28
0280200100	6	1/8	50	10 x 1	12/14/19	30.5	47	19	8	23/28
0280200110	6	1/4	50	10 x 1	12/14/19	30.5	47	19	9	23,5/28
0280200120	6	3/8	50	10 x 1	12/14/19	30.5	47	19	9.5	23,5/28,5
0280200135	6.35	1/8	50	10 x 1	12/14/19	30.5	41.5	19	8	23/28
0280200160	8	1/8	50	12 x 1	14/14/19	31	47	19	8	23,5/28
0280200170	8	1/4	50	12 x 1	14/14/19	31	47	19	9	23,5/29
0280200180	8	3/8	50	12 x 1	14/14/19	31	47	19	9.5	23,5/28,5
0280200235	9.52	3/8	50	14 x 1	17/18/24	38	54.5	21.5	9	28/32,5
0280200270	10	1/4	50	14 x 1	17/18/24	38	54.5	21.5	9	27,5/32
0280200280	10	3/8	50	14 x 1	17/18/24	38	54.5	21.5	9	27,5/32,5
0280200285	10	1/2	50	16 x 1	19/18/24	43.5	56.5	23.5	11.5	32/36,5
0280200380	12	1/4	50	16 x 1	19/18/24	43.5	56.5	23.5	9	32/36
0280200390	12	3/8	50	16 x 1	19/18/24	43.5	56.5	23.5	9.5	32/36,5
0280200400	12	3/8	50	16 x 1	19/18/24	43.5	56.5	23.5	11.5	32/36,5
0280200432	12.7	3/8	50	20 x 1,5	24/22/27	46	66	27.5	9.5	23,5/39,5
0280200434	12.7	1/2	50	20 x 1,5	24/22/27	46	66	27.5	11.5	23,5/39,5
0280200436	12.7	3/4	50	20 x 1,5	24/22/27	46	66	27.5	14	23,5/40
0280200504	14	1/2	50	20 x 1,5	24/22/27	46	66	27.5	11.5	33,5/39,5
0280200534	15	1/2	50	20 x 1,5	27/22/27	46	66	27.5	11.5	33,5/39,5
