Name: SO NV 41C21E
SKU: 41814

Vis alle mål +

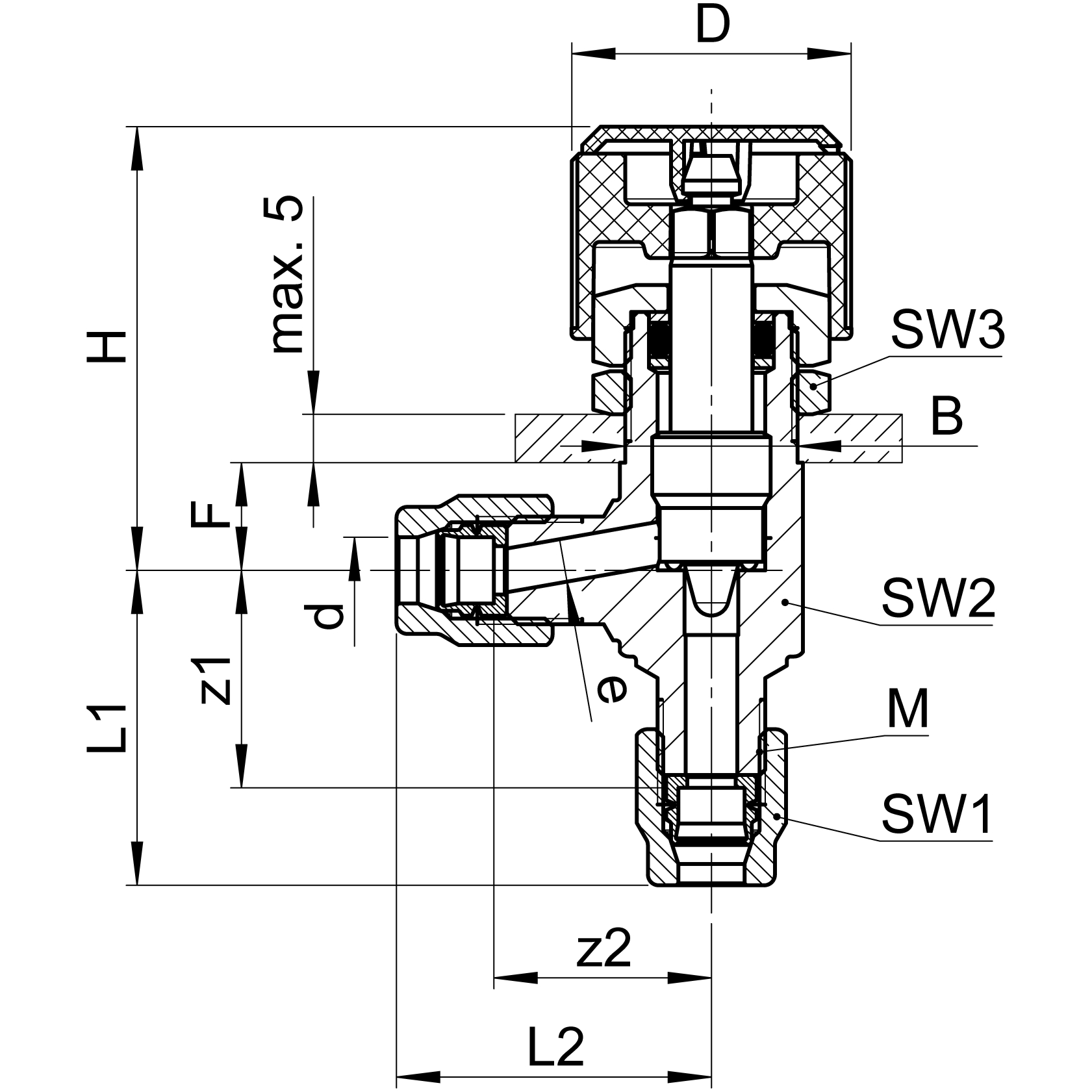

Artikel nummer	d	bar	M	SW1/SW2	SW3	L1/L2	H	F	z1/z2	e
0282000040	4	50	10 x 1	12/14	19	29/29	41	10	20/20	3.4
0282000050	5	50	10 x 1	12/14	19	29/29	41	10	20/20	4
0282000060	6	50	10 x 1	12/14	19	29/29	41	10	20/20	4
0282000080	8	50	12 x 1	14/14	19	31/31	41	10	21/21	4.8
0282000100	10	50	14 x 1	17/19	24	37/37	45	12	24/24	6.5
0282000120	12	50	16 x 1	19/19	24	38/38	45	12	24/24	8.3
0282000140	14	50	20 x 1,5	24/22	27	42,5/42,5	53	15	27,5/27,5	10.8
0282000150	15	50	20 x 1,5	24/22	27	42,5/42,5	53	15	27,5/27,5	10.8
0282000063	6.35	50	10 x 1	12/14	19	29/29	41	10	20/20	4
0282000095	9.52	50	14 x 1	17/19	24	37/37	45	12	24/24	6.5
0282000127	12.7	50	20 x 1,5	24/22	27	42,5/42,5	53	15	27,5/27,5	10.8

Datablad

Produktblad

SO NV 41C21E
