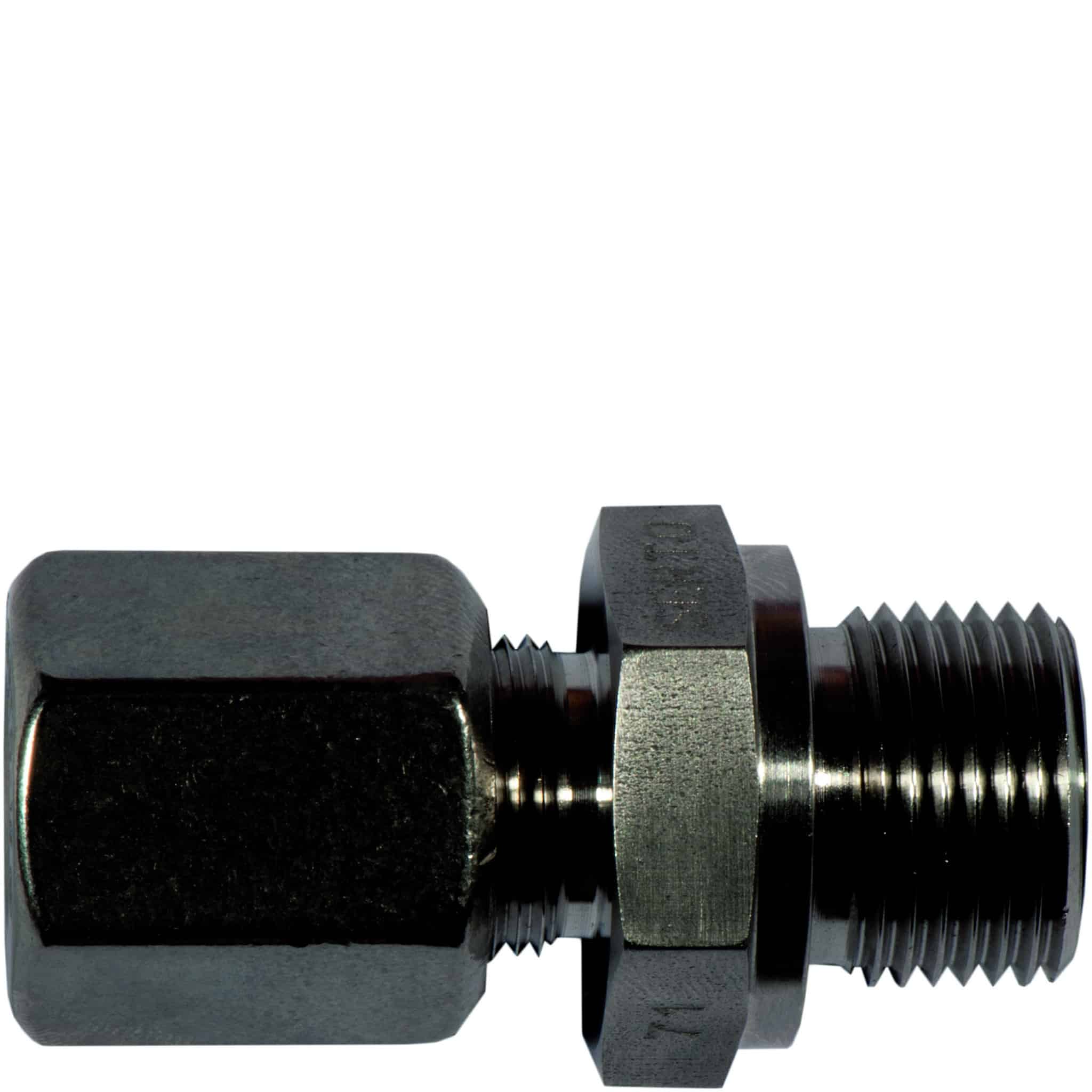

Name: SOL 51124
SKU: 40353

Vis alle mål +

Artikel nummer	d	R	bar	M	SW1/SW2	e	L	D	i	z
0781141100	6	1/8	400	10x1	14/14	4.5	32.5	15	8	14.5
0781141110	6	1/4	400	10x1	14/19	4.5	38	19	12	16
0781141120	6	3/8	400	10x1	14/22	4.5	39.5	23	12	17.5
0781141125	6	1/2	400	10x1	14/27	4.5	42	27	14	18
0781141160	8	1/8	330	12x1	17/14	5	34	15	8	15.5
0781141170	8	1/4	330	12x1	17/19	6.5	39.5	19	12	17
0781141185	8	1/2	330	12x1	17/27	6.5	43.5	27	14	19
0781141270	10	1/4	330	14x1	19/19	7	41.5	19	12	17
0781141280	10	3/8	330	14x1	19/22	8.5	43	23	12	18.5
0781141285	10	1/2	330	14x1	19/27	8.5	45.5	27	14	19
0781141290	10	3/4	400	14x1	19/32	8.5	48.5	33	16	20
0781141380	12	1/4	330	16x1	22/19	7	42.5	19	12	17
0781141390	12	3/8	330	16x1	22/22	10	44	23	12	18.5
0781141400	12	1/2	330	16x1	22/27	10	46.5	27	14	19
0781141405	12	3/4	400	16x1	22/32	10	49.5	33	16	20
0781141534	15	1/2	250	20x1,5	27/27	13	50.5	27	14	21
0781141566	16	1/2	200	24x1,5	30/27	13.5	53.5	27	14	21
0781141570	16	1	200	24x1,5	30/41	13.5	59.5	42	18	23
0781141646	18	1/2	200	24x1,5	30/27	13.5	52	27	14	21.5
0781141135	6.35	1/8	400	10x1	14/14	4.5	31.5	15	8	14.5
0781141140	6.35	1/4	330	10x1	14/19	4.5	38.5	19	12	16
0781141145	6.35	3/8	400	10x1	14/22	4.5	40	23	12	17.5
0781141150	6.35	1/2	400	10x1	14/27	4.5	42.5	27	14	18
0781141230	9.52	1/4	330	14x1	19/19	7	41.5	19	12	17
0781141235	9.52	3/8	400	14x1	19/22	8	43	23	12	18.5
0781141240	9.52	1/2	400	14x1	19/27	8	45.5	27	14	19
0781141434	12.7	1/2	400	20x1,5	27/27	11	50.5	27	14	21.5
0781141536	12.7	3/4	400	20x1,5	27/32	11	52	33	16	22.5

Datablad

Produktblad

SOL 51124
