SXEFV-E

PVC Kuglekontraventil, indv. gevind DN10-100 EPDM

Vis alle mål +

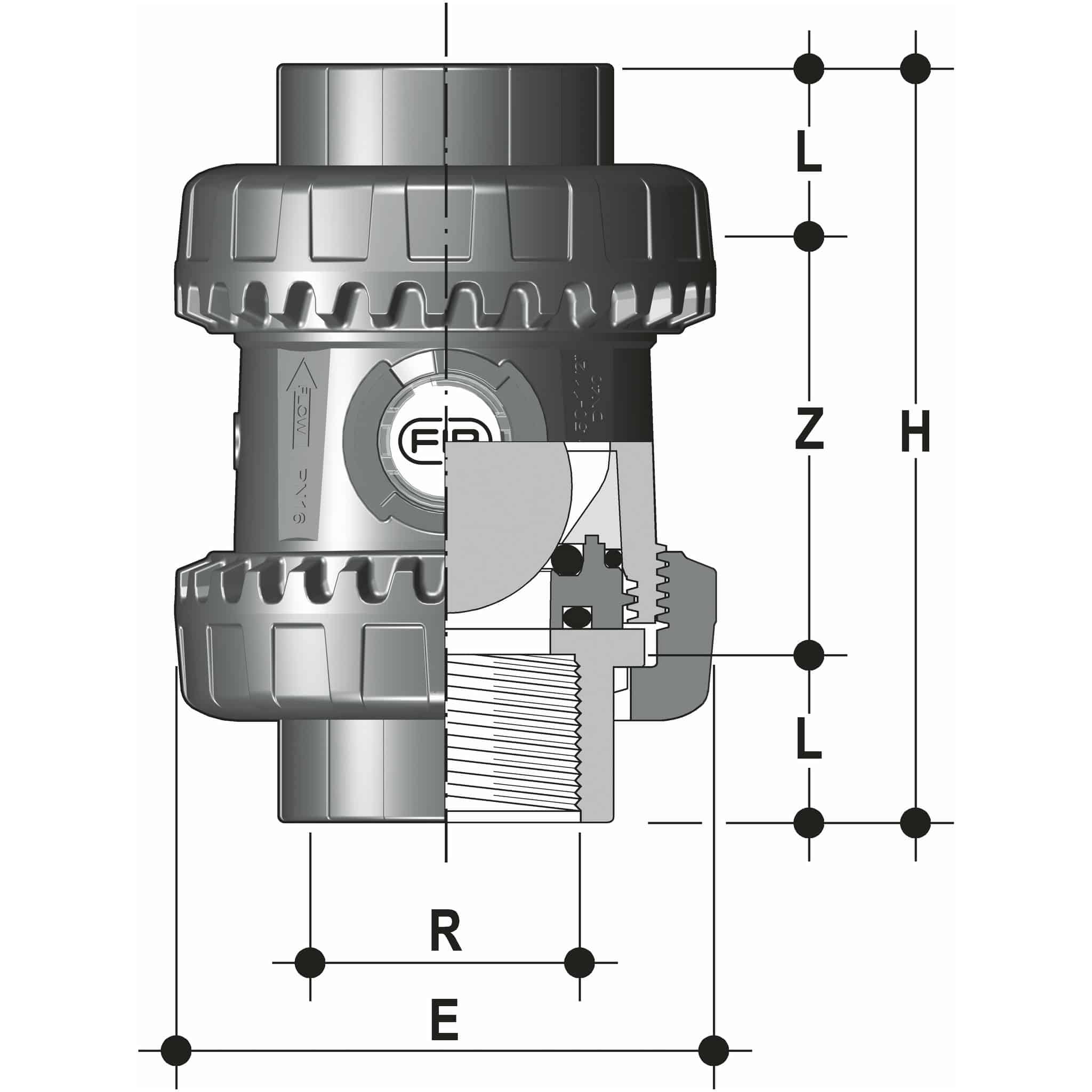

Artikel nummer	R	DN	PN	L	Z	H	E
SXEFV-E-R010	3/8"	10	16	11.4	59.2	82	54
SXEFV-E-R015	1/2"	15	16	15	60	90	54
SXEFV-E-R020	3/4"	20	16	16.3	60.4	93	63
SXEFV-E-R025	1"	25	16	19.1	71.8	110	72
SXEFV-E-R032	1 1/4"	32	16	21.4	84.2	127	85
SXEFV-E-R040	1 1/2"	40	16	21.4	88.2	131	100
SXEFV-E-R050	2"	50	16	25.7	109.6	161	118
SXEFV-E-R065	2 1/2"	65	16	30.2	150.6	211	157
SXEFV-E-R080	3"	80	16	33.3	181.4	248	174
SXEFV-E-R100	4"	100	16	39.3	204.4	283	212

Datablad
