TBM

PP T-stykke SDR11 PN10

  • PP T-stykke
  • Til stuksvejsning
  • SDR11 PN10
  • SDR33 på forespørgsel
Vis alle mål +

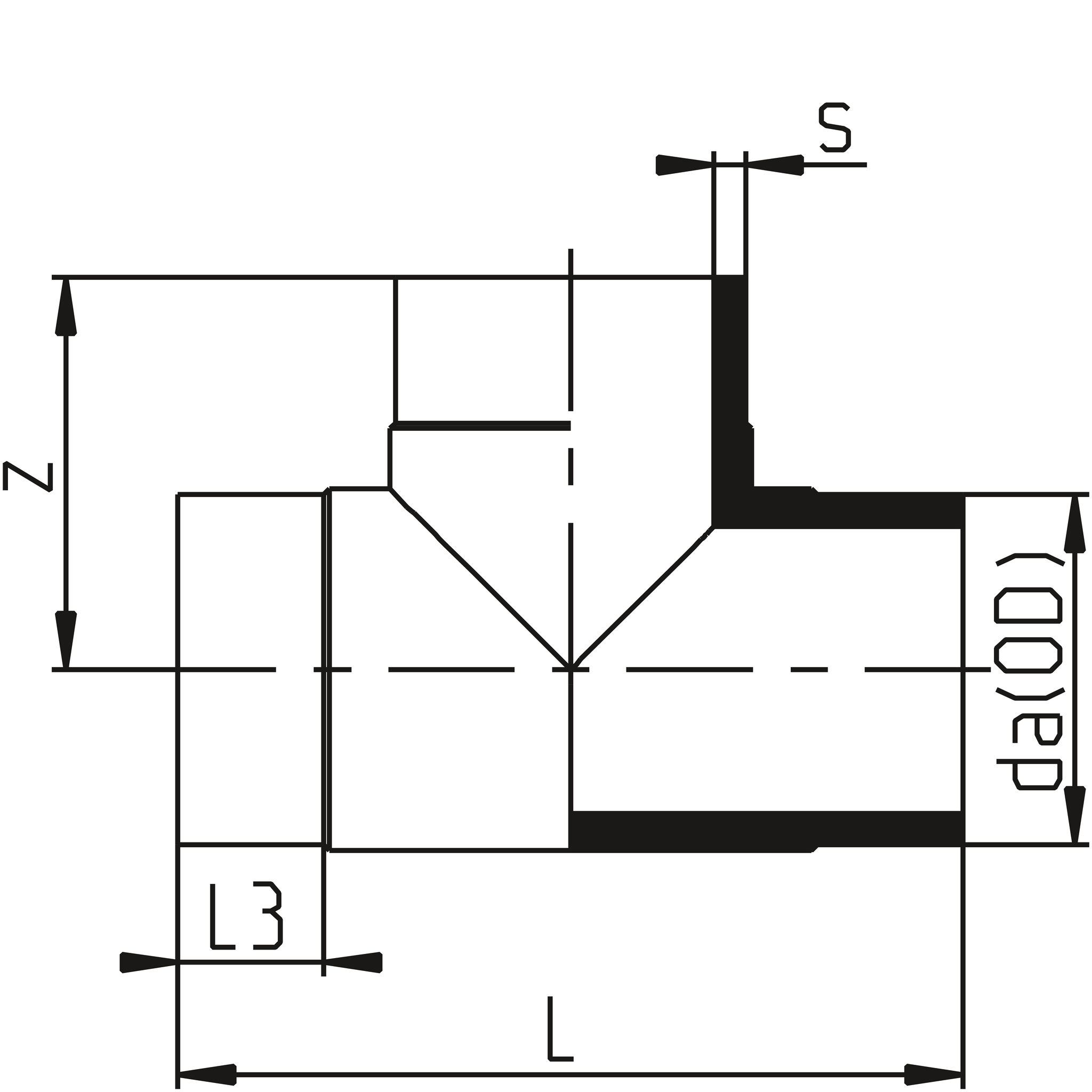

Artikel nummer VVS-nummer da(OD)SDRszLL3Filer
TBM11-020 20SDR111.9346817.5 CAD/Step
TBM11-025 25SDR112.3408020.5 CAD/Step
TBM11-032 32SDR112.9459020.5 CAD/Step
TBM11-040 40SDR113.75010020.5 CAD/Step
TBM11-050 50SDR114.66012023 CAD/Step
TBM11-063 63SDR115.87214425 CAD/Step
TBM11-075 75SDR116.87515215 CAD/Step
TBM11-090 90SDR118.210521338 CAD/Step
TBM11-110 110SDR111012225351 CAD/Step
TBM11-125 125SDR1111.414028052 CAD/Step
TBM11-140 140SDR1112.715230553 CAD/Step
TBM11-160 160SDR1114.617334657 CAD/Step
TBM11-180 180SDR1116.418637257 CAD/Step
TBM11-200 200SDR1118.2202.540557 CAD/Step
TBM11-225 225SDR1120.5222.544557 CAD/Step
TBM11-250 250SDR1122.723547072 CAD/Step
TBM11-280 280SDR1125.427054080 CAD/Step
TBM11-315 315SDR1128.627555080 CAD/Step
TBM11-355 355SDR1132.3345690105 CAD/Step
TBM11-400 400SDR1136.3355700103 CAD/Step
TBM11-450 450SDR1140.9450900130 CAD/Step
TBM11-500 500SDR1145.4450900130 CAD/Step
Datablad
