Vis alle mål +

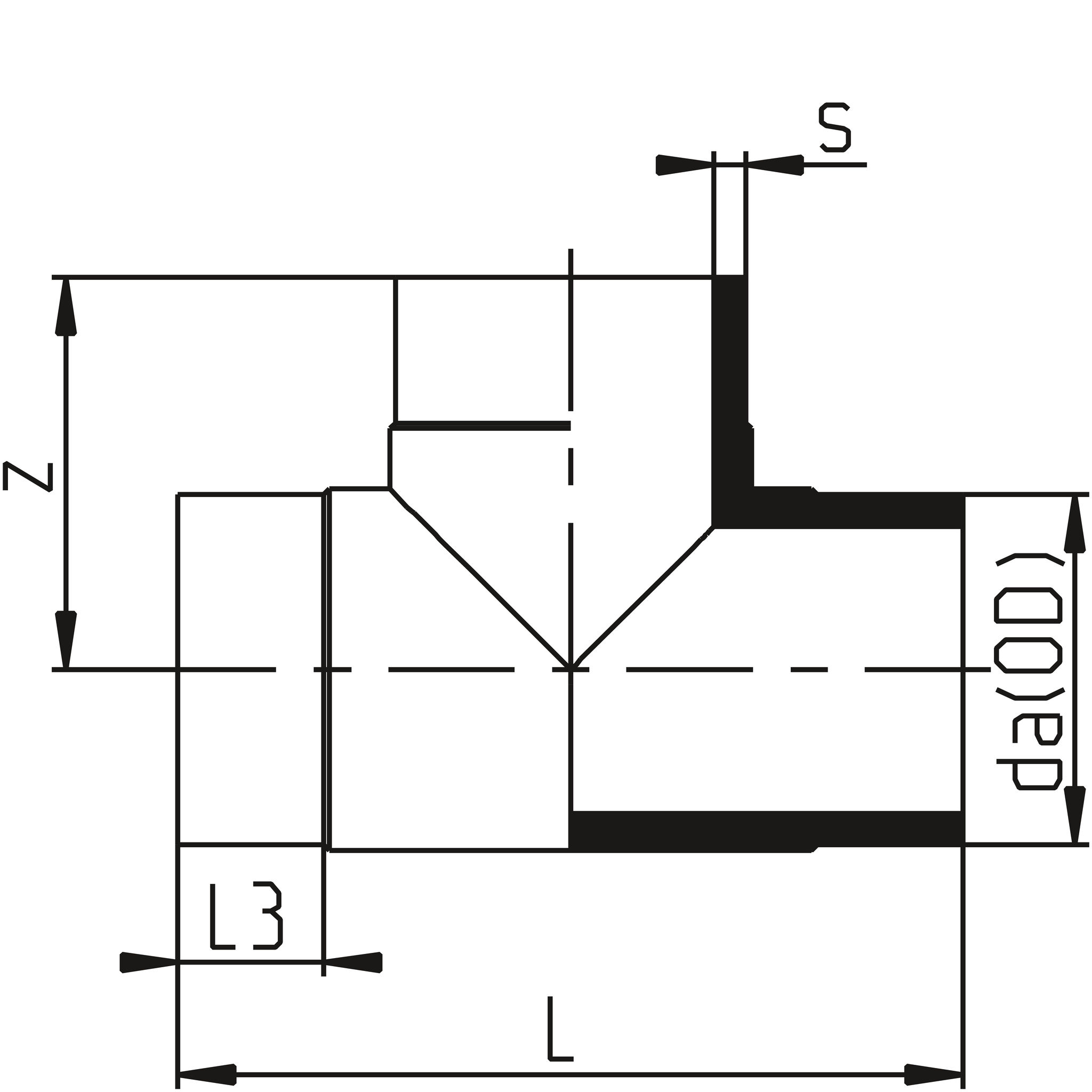

| Artikel nummer | VVS-nummer | da(OD) | SDR | s | z | L | L3 | Filer |
|---|---|---|---|---|---|---|---|---|
| TBM17-063 | 63 | SDR17 | 3.8 | 72 | 145 | 25 | CAD/Step | |
| TBM17-075 | 75 | SDR17 | 4.5 | 75 | 150 | 16 | CAD/Step | |
| TBM17-090 | 90 | SDR17 | 5.4 | 107 | 212 | 38 | CAD/Step | |
| TBM17-110 | 110 | SDR17 | 6.6 | 121 | 251 | 50.5 | CAD/Step | |
| TBM17-125 | 125 | SDR17 | 7.4 | 140 | 280 | 50 | CAD/Step | |
| TBM17-140 | 140 | SDR17 | 8.3 | 150 | 304 | 54 | CAD/Step | |
| TBM17-160 | 160 | SDR17 | 9.5 | 173 | 346 | 57 | CAD/Step | |
| TBM17-180 | 180 | SDR17 | 10.7 | 186 | 372 | 57 | CAD/Step | |
| TBM17-200 | 200 | SDR17 | 11.9 | 202.5 | 405 | 57 | CAD/Step | |
| TBM17-225 | 225 | SDR17 | 13.4 | 222.5 | 445 | 57 | CAD/Step | |
| TBM17-250 | 250 | SDR17 | 14.8 | 235 | 470 | 70 | CAD/Step | |
| TBM17-280 | 280 | SDR17 | 16.6 | 272 | 543 | 80 | CAD/Step | |
| TBM17-315 | 315 | SDR17 | 18.7 | 275 | 550 | 80 | CAD/Step | |
| TBM17-355 | 355 | SDR17 | 21.1 | 340 | 680 | 104 | CAD/Step | |
| TBM17-400 | 400 | SDR17 | 23.7 | 352.5 | 705 | 106 | CAD/Step | |
| TBM17-450 | 450 | SDR17 | 26.7 | 450 | 895 | 134 | CAD/Step | |
| TBM17-500 | 500 | SDR17 | 29.7 | 450 | 900 | 130 | CAD/Step |
