UN82U

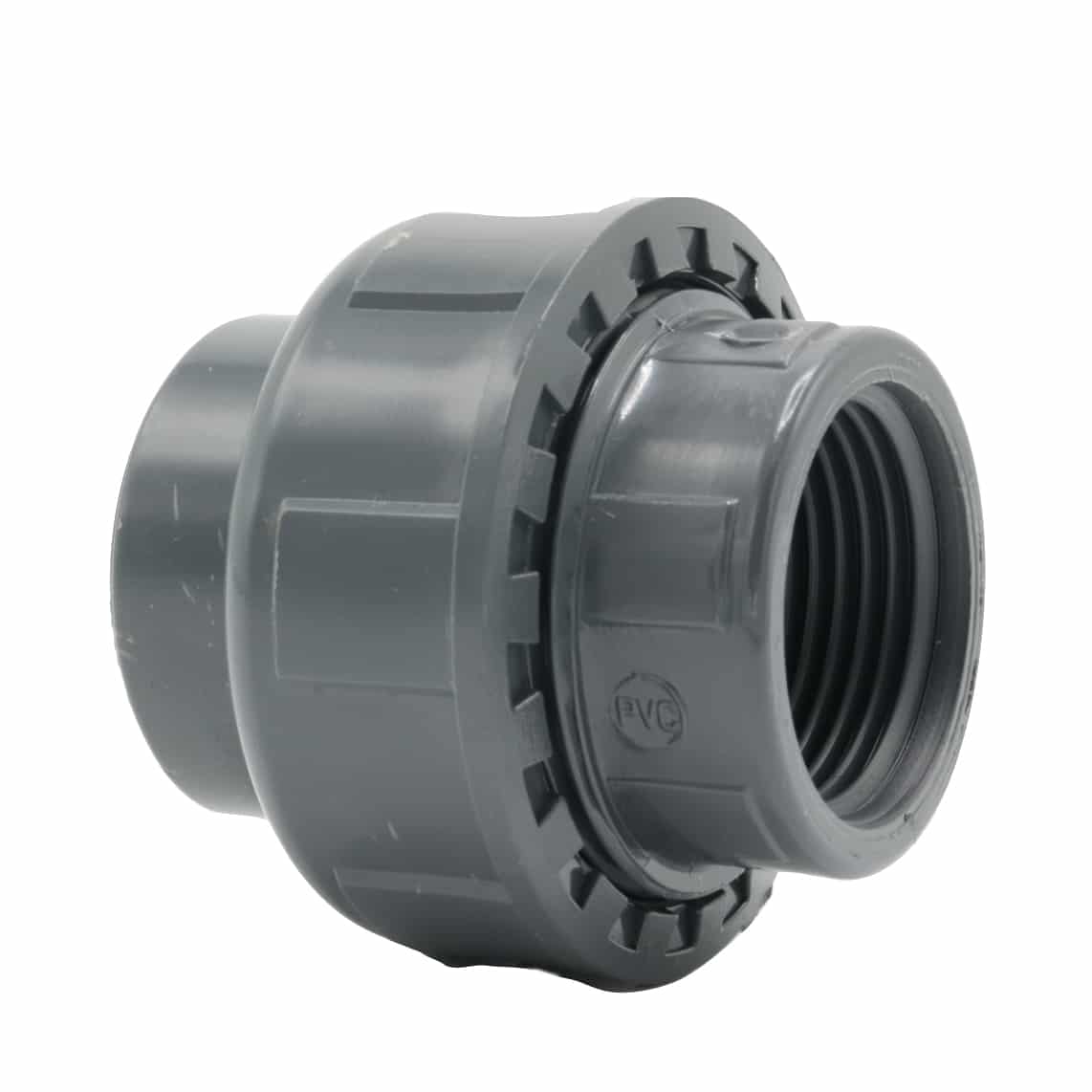

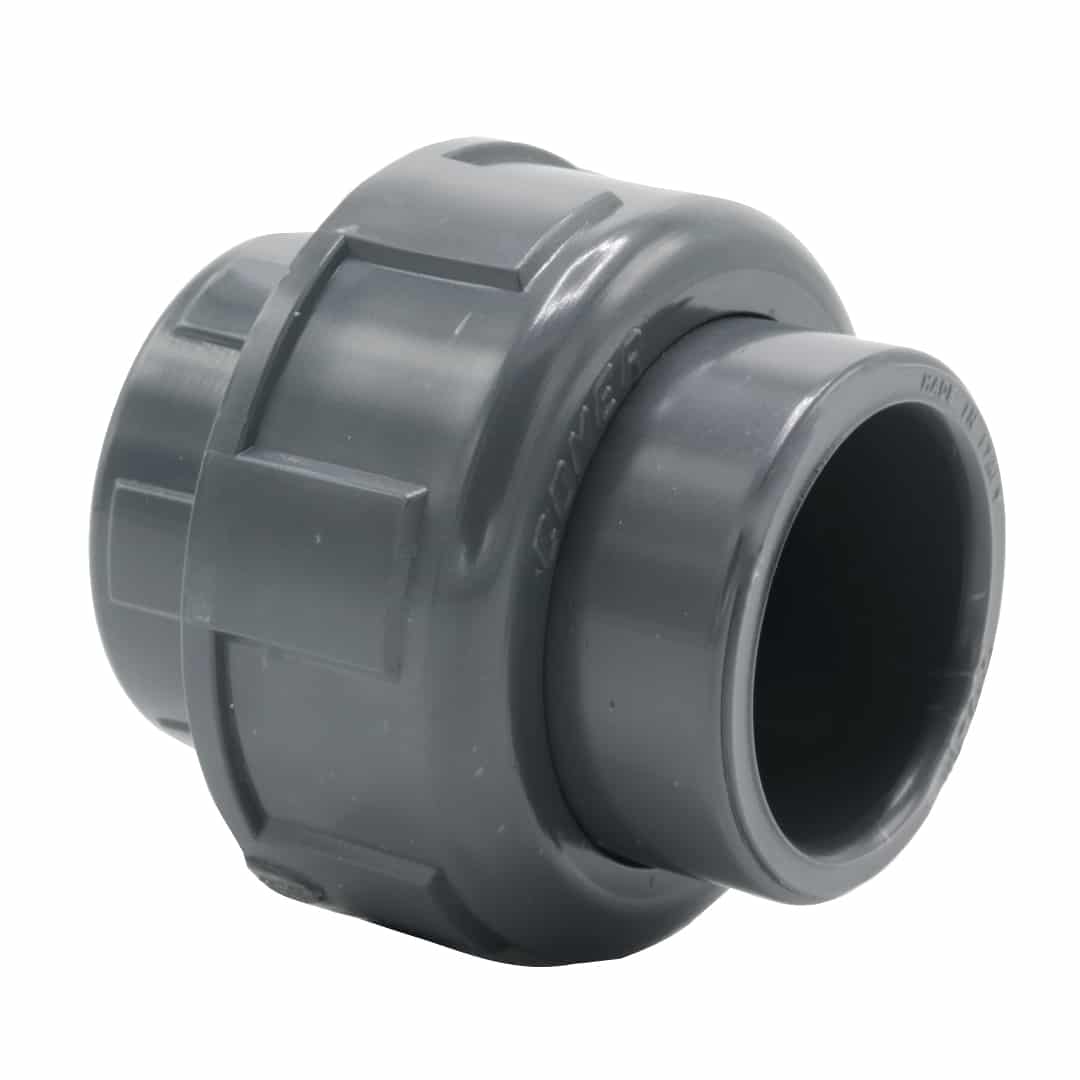

PVC Union indv. limning/gevind

  • PVC Union
  • Indvendig limning
  • Indvendig gevind
  • EPDM O-ring
  • Temp: 0-60°C
  • PN16(Ved 20°C)
Vis alle mål +

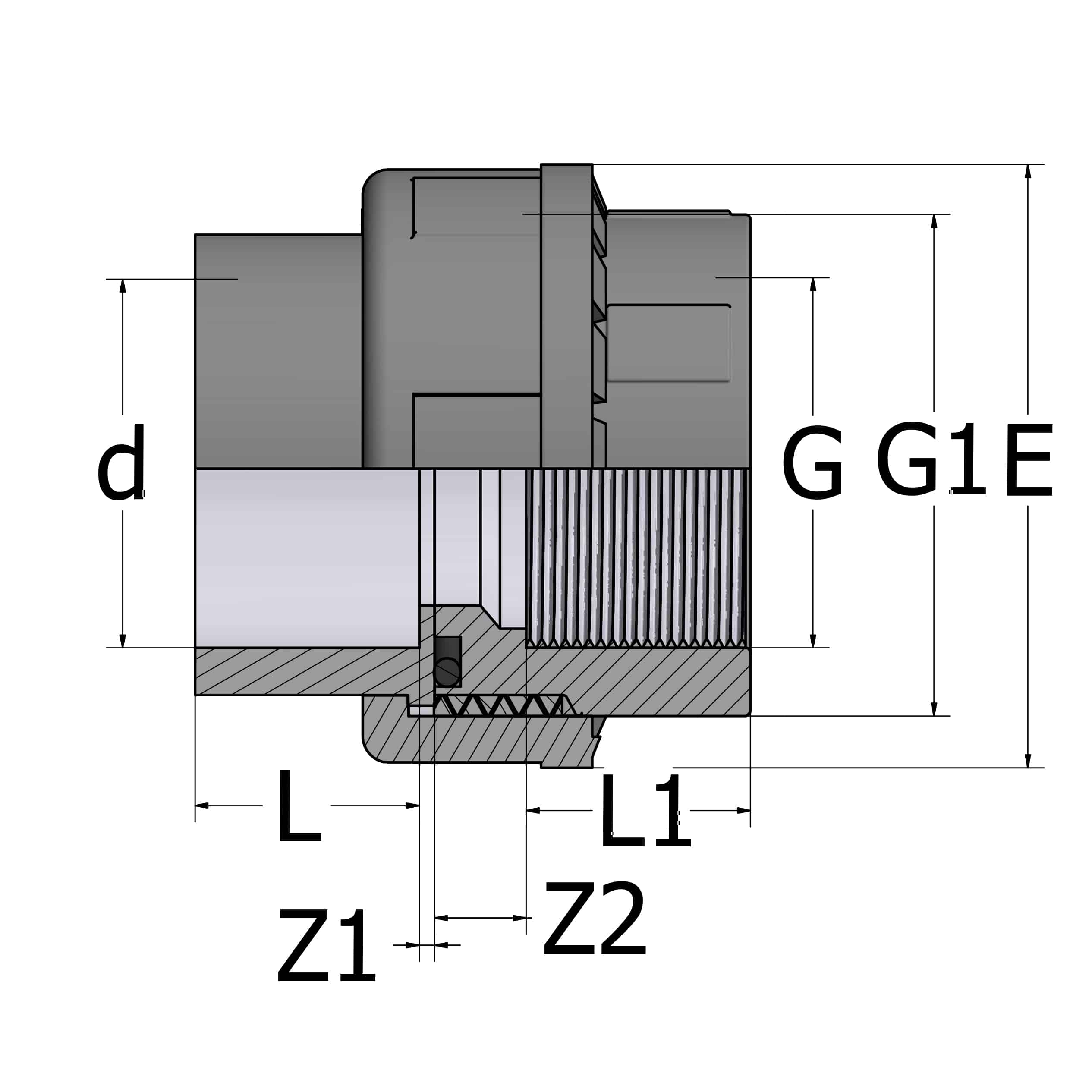

Artikel nummer VVS-nummer dxGLL1Z1Z2G1EFiler
UN82U-016-R010 061364016 16x3/8"1411.4312.63/4"34
UN82U-020-R015 061364020 20x1/2"16153111"42
UN82U-025-R020 061364025 25x3/4"1916.3312.71"1/452
UN82U-032-R025 061364032 32x1"2219.1312.91"1/259
UN82U-040-R032 061364040 40x1"1/42621.4316.62"72
UN82U-050-R040 061364050 50x1"1/23121.4323.62"1/479
UN82U-063-R050 061364063 63x2"3825.7330.32"3/496
UN82U-075-R065 75×2 1/2"4430,2331,83"1/2119
UN82U-090-R080 90×3"5133,3335,74"134
UN82U-110-R100 110×4"6139,3339,75"163
