Vis alle mål +

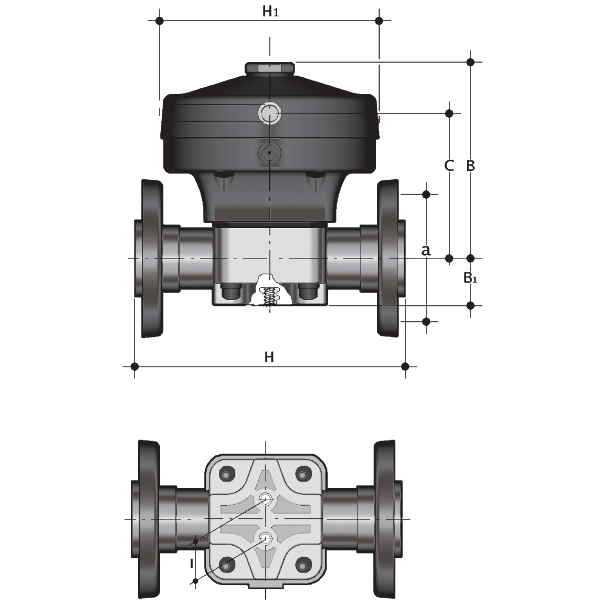

| Artikel nummer | VVS-nummer | d | DN | Membran | B | B1 | C | H | H1 | I | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VMOV/NO-E-075 | 75 | 65 | EPDM | 305 | 55 | 252 | 290 | 258 | 100 | ||
| VMOV/NO-E-020 | 20 | 15 | EPDM | 144 | 26 | 120 | 130 | 126 | 25 | ||
| VMOV/NO-E-025 | 25 | 20 | EPDM | 144 | 26 | 120 | 150 | 126 | 25 | ||
| VMOV/NO-E-032 | 32 | 25 | EPDM | 144 | 26 | 120 | 160 | 126 | 25 | ||
| VMOV/NO-E-040 | 40 | 32 | EPDM | 201 | 40 | 133 | 180 | 155 | 44.5 | ||
| VMOV/NO-E-050 | 50 | 40 | EPDM | 201 | 40 | 133 | 200 | 155 | 44.5 | ||
| VMOV/NO-E-063 | 63 | 50 | EPDM | 237 | 40 | 156 | 230 | 210 | 44.5 | ||
| VMOV/NO-E-090 | 90 | 80 | EPDM | 305 | 55 | 252 | 310 | 258 | 100 | ||
| VMOV/NO-E-110 | 110 | 100 | EPDM | 330 | 69 | 268 | 350 | 258 | 120 |
