1B10041

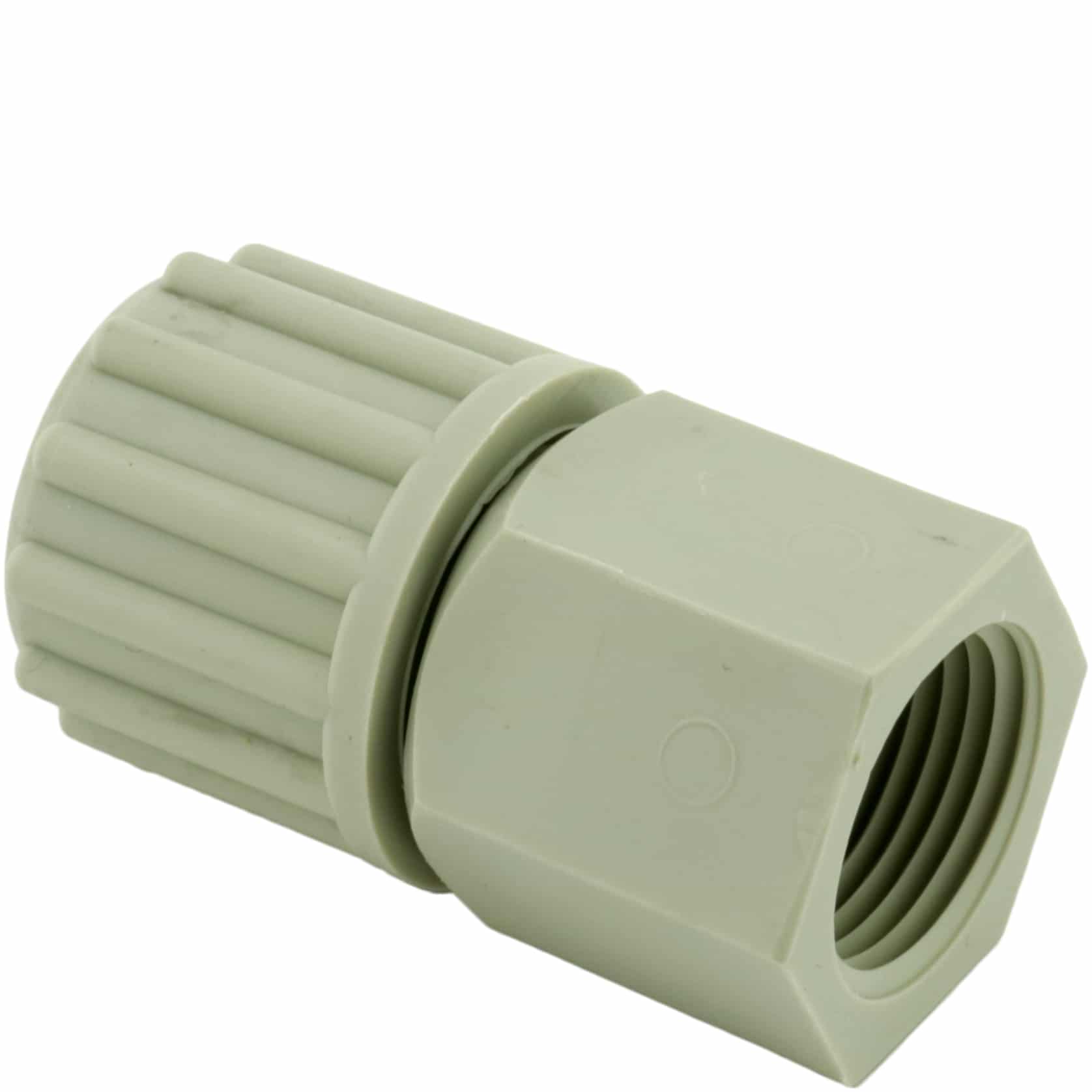

PP Overgang, indv. gevind

  • PP Overgang
  • Indvendigt gevind
Vis alle mål +

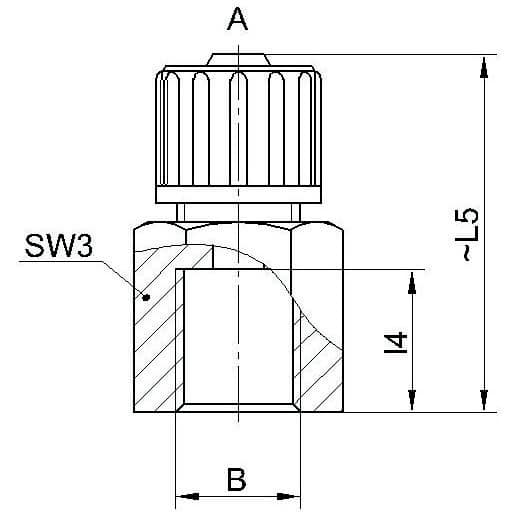

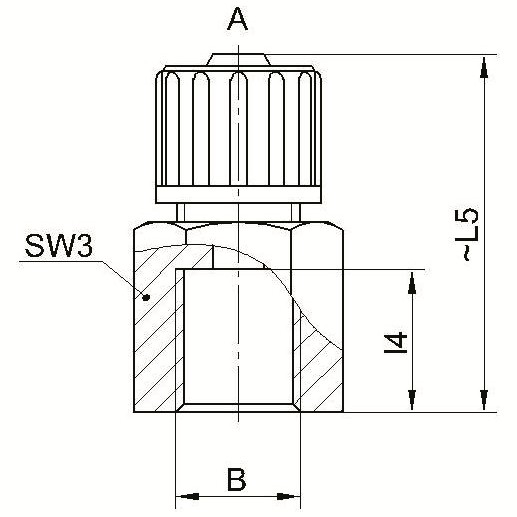

Artikel nummer VVS-nummer ABl4L5SW3Filer
1B10041-1004-R06 10/41/8"103719
1B10041-1004-R08 10/41/4"154219
1B10041-1004-R10 10/43/8"154222
1B10041-1004-R15 10/41/2"164427
1B10041-1105-R06 11/51/8"103719
1B10041-1105-R08 11/51/4"154219
1B10041-1105-R10 11/53/8"154222
1B10041-1105-R15 11/51/2"164527
1B10041-1206-R06 12/61/8"103822
1B10041-1206-R08 12/61/4"154422
1B10041-1206-R10 12/63/8"154422
1B10041-1206-R15 12/61/2"164627
1B10041-1408-R08 14/81/4"154622
1B10041-1408-R10 14/83/8"154622
1B10041-1408-R15 14/81/2"164727
1B10041-1408-R20 14/83/4"205232
1B10041-1509-R08 15/91/4"154927
1B10041-1509-R10 15/93/8"154927
1B10041-1509-R15 15/91/2"165027
1B10041-1509-R20 15/93/4"205532
1B10041-1610-R08 16/101/4"155127
1B10041-1610-R10 16/103/8"155127
1B10041-1610-R15 16/101/2"165227
1B10041-1610-R20 16/103/4"205732
1B10041-1812-R08 18/121/4"155427
1B10041-1812-R10 18/123/8"155427
1B10041-1812-R15 18/121/2"165527
1B10041-1812-R20 18/123/4"206032
1B10041-1913-R08 19/131/4"155127
1B10041-1913-R10 19/133/8"155127
1B10041-1913-R15 19/131/2"165227
1B10041-1913-R20 19/133/4"205732
Datablad
