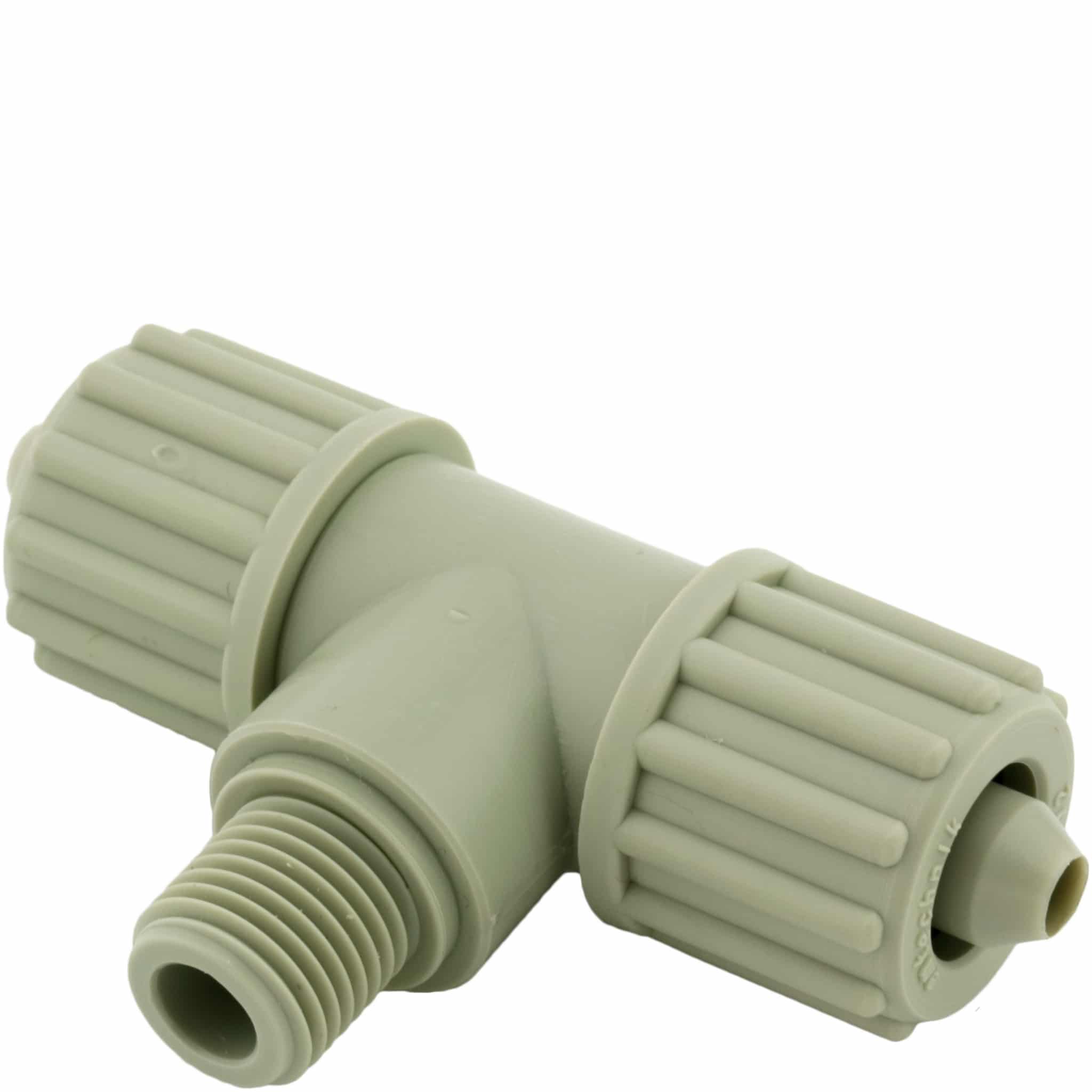

1B30031

PP T-stykke, udv. gevind

  • PP Kobling
  • T-stykke
  • Udvendigt gevind
Vis alle mål +

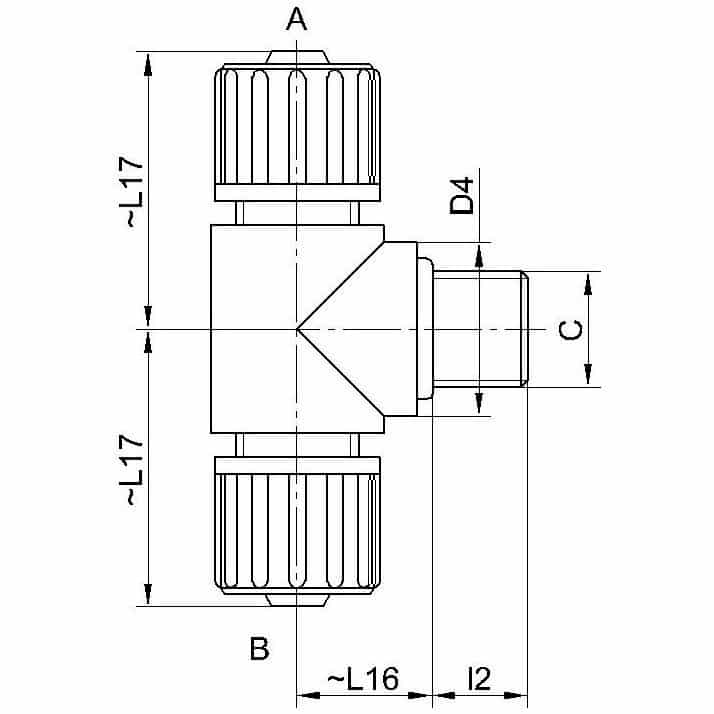

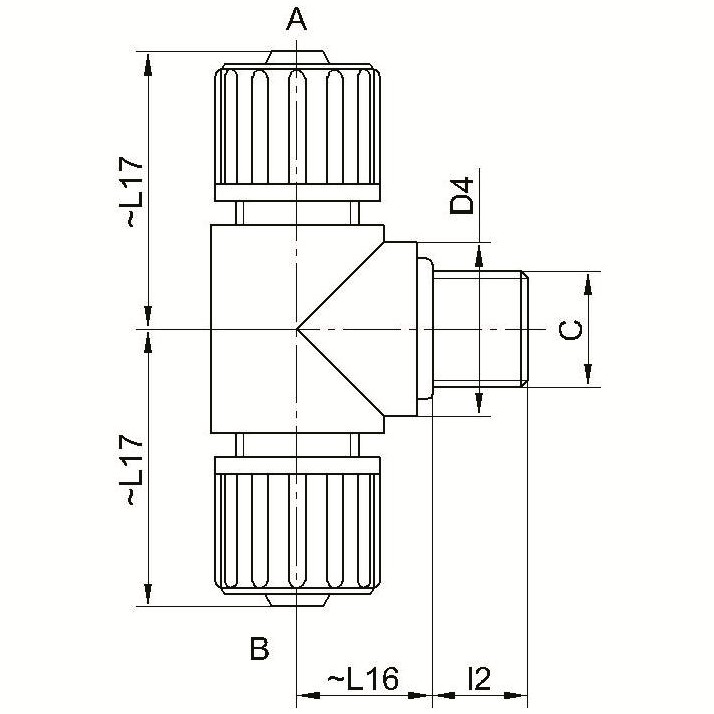

Artikel nummer VVS-nummer ABCl2L16L17D4Filer
1B30031-1004-R06 10/410/41/8"82036
1B30031-1004-R08 10/410/41/4"122036
1B30031-1004-R10 10/410/43/8"122238
1B30031-1004-R15 10/410/41/2"142341
1B30031-1105-R06 11/511/51/8"82036
1B30031-1105-R08 11/511/51/4"122036
1B30031-1105-R10 11/511/53/8"122238
1B30031-1105-R15 11/511/51/2"142341
1B30031-1206-R06 12/612/61/8"82037
1B30031-1206-R08 12/612/61/4"122037
1B30031-1206-R10 12/612/63/8"122239
1B30031-1206-R15 12/612/61/2"142342
1B30031-1408-R08 14/814/81/4"122241
1B30031-1408-R10 14/814/83/8"122241
1B30031-1408-R15 14/814/81/2"142344
1B30031-1408-R20 14/814/83/4"162344
1B30031-1509-R08 15/915/91/4"122243
1B30031-1509-R10 15/915/93/8"122243
1B30031-1509-R15 15/915/91/2"142346
1B30031-1509-R20 15/915/93/4"162646
1B30031-1610-R08 16/1016/101/4"122248
1B30031-1610-R10 16/1016/103/8"122248
1B30031-1610-R15 16/1016/101/2"142349
1B30031-1610-R20 16/1016/103/4"162349
1B30031-1812-R08 18/1218/121/4"122352
1B30031-1812-R10 18/1218/123/8"122352
1B30031-1812-R15 18/1218/121/2"142352
1B30031-1812-R20 18/1218/123/4"162352
1B30031-1913-R08 19/1319/131/4"122349
1B30031-1913-R10 19/1319/133/8"122349
1B30031-1913-R15 19/1319/131/2"142349
1B30031-1913-R20 19/1319/133/4"162349
Datablad
