SO 22021

Name: SO 22021
SKU: 37741

PVDF fitting – Serto

PVDF Vinkelkobling 90°

Vis alle mål +

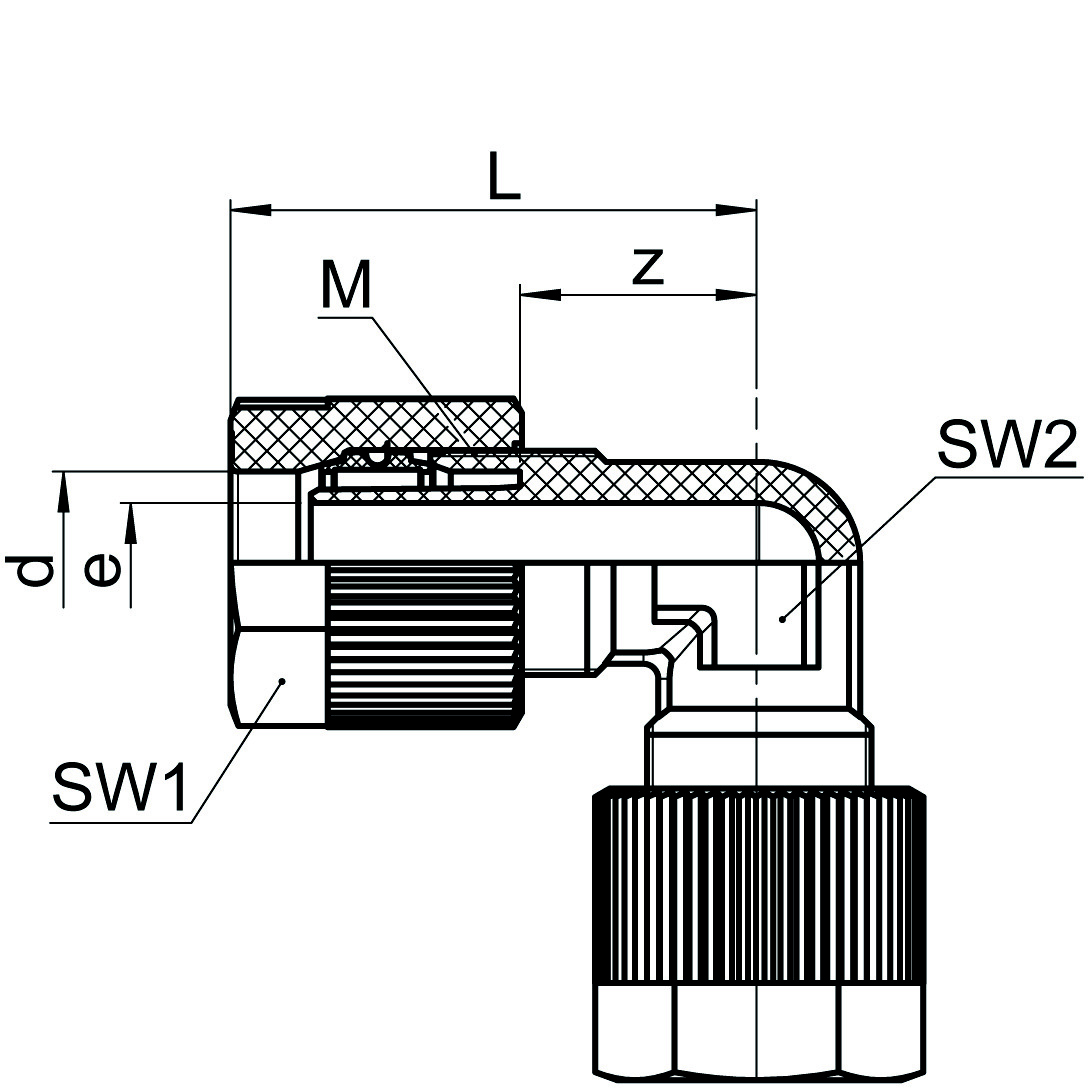

Artikel nummer	d	bar	e	L	z	M	SW1	SW2	Filer
1282000040	4/2	10	3.1	25	14	10 x 1	12	8	CAD/Step
1282000060	6/4	10	2.8	25	14	10 x 1	12	8	CAD/Step
1282000080	8/6	10	4.8	26.5	14.5	12 x 1	14	10	CAD/Step
1282000100	10/8	10	6.6	30	16	14 x 1	17	12	CAD/Step
1282000102	10/7	10	5.6	30	16	14 x 1	17	12	CAD/Step
1282000120	12/10	10	8	32.5	16	16 x 1	19	13	CAD/Step
1282000122	12/9	10	7	32.5	16	16 x 1	19	13	CAD/Step
1282000160	16/13	10	11	45.5	23	22 x 1,5	24	19	CAD/Step
