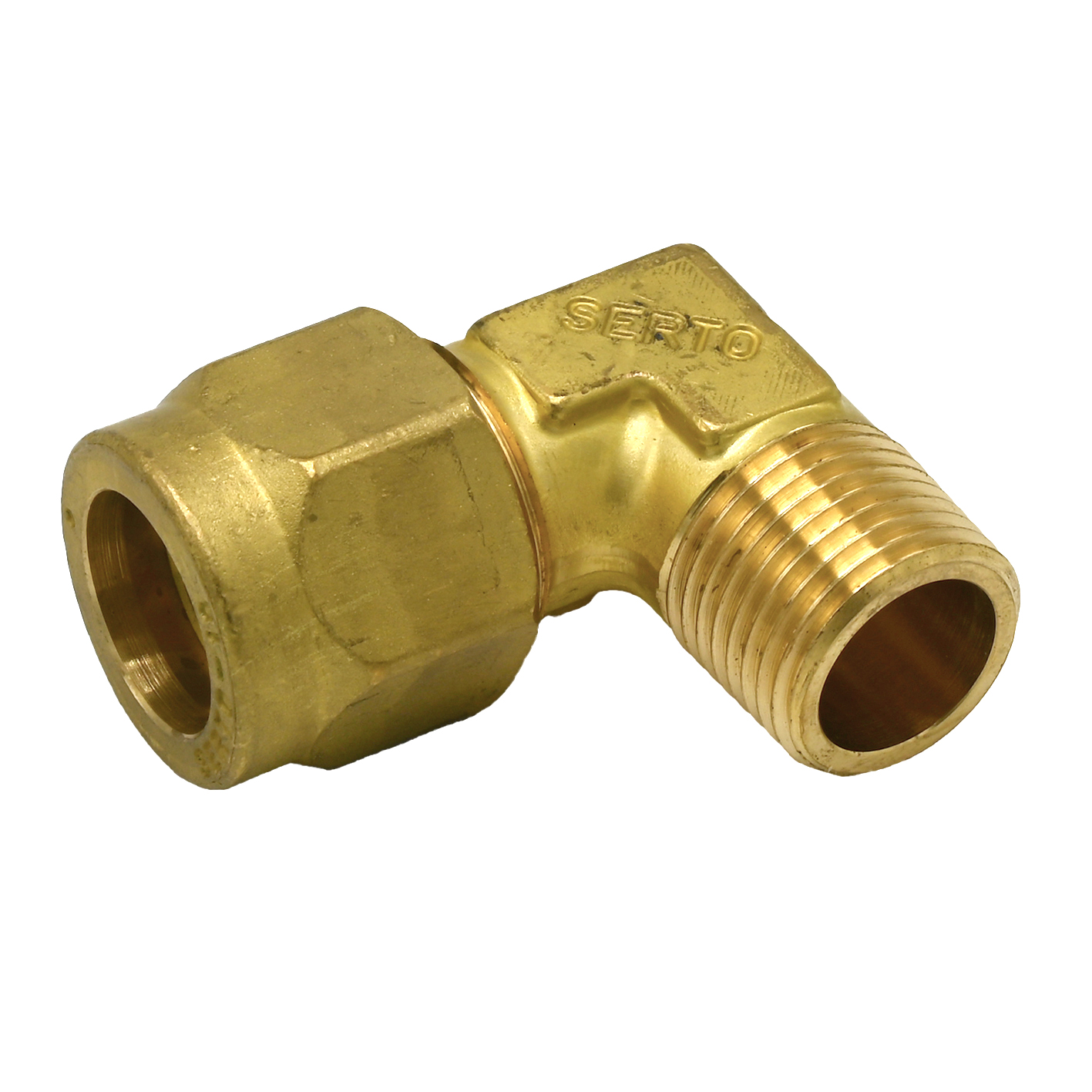

Name: SO 42421
SKU: 40991

Vis alle mål +

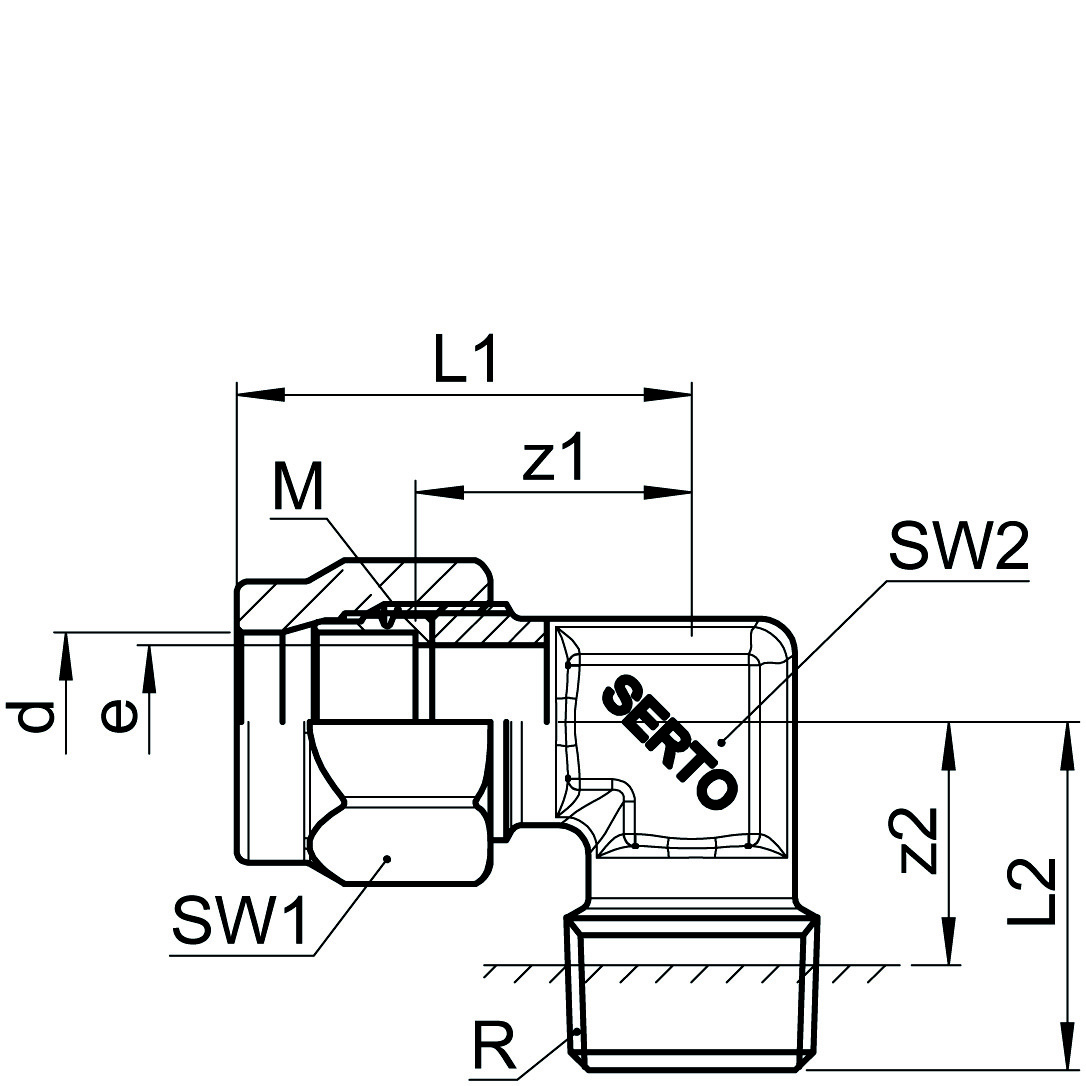

Artikel nummer	VVS-nummer	d	R	bar	M	SW1	SW2	L1	L2	e	z1/z2
182401040		3	1/8	125	8 x 1	10	7	22.5	17	2.5	16/11
182401060		4	1/8	125	8 x 1	10	7	22	17	3.4	16/11
182401065		4	1/4	100	10 x 1	12	10	25.5	22.5	3.4	18/13
182401082		5	1/8	125	8 x 1	12	7	22.5	17	3.5	16/11
182401084		5	1/4	100	10 x 1	12	10	25.5	22.5	4	18/13
182401100		6	1/8	250	10 x 1	12	10	23.5	17.5	4.5	16/12
182401110		6	1/4	250	10 x 1	14	10	23.5	22.5	4.5	18/13
182401160		8	1/8	150	12 x 1	14	10	26	18	6	18/11,5
182401170		8	1/4	150	12 x 1	17	10	26	22.5	6.5	18/13
182401180		8	3/8	150	14 x 1	17	14	30.5	25	6.5	20,5/15
182401270		10	1/4	125	14 x 1	17	14	30.5	25	8.5	20,5/15,5
182401280		10	3/8	125	14 x 1	19	14	30.5	25	8.5	20,5/15
182401285		10	1/2	100	16 x 1	19	19	34	29.5	8.5	23/16,5
182401380		12	1/4	100	16 x 1	19	17	32.5	26	8.5	21,5/16,5
182401390		12	3/8	100	16 x 1	19	17	32.5	26	10	21,5/16
182401400		12	1/2	100	16 x 1	19	19	34	29.5	10	23/16,5
182401454		13	1/2	40	20 x 1,5	24	19	36	29.5	11	23,5/16,5
182401502		14	3/8	40	20 x 1,5	24	19	36	28	10.5	23,5/16
182401504		14	1/2	40	20 x 1,5	24	19	36	29.5	12	23,5/16,5
182401506		14	3/4	64	24 x 1,5	27	22	41	35	12	26,5/21
182401532		15	3/8	40	20 x 1,5	24	19	36	28	10.5	23,5/16
182401534		15	1/2	40	20 x 1,5	24	22	36	29.5	13	23,5/16,5
182401536		15	3/4	40	24 x 1,5	27	22	40.5	35	13	26,5/21
182401566		16	1/2	40	24 x 1,5	27	22	40.5	31.5	14	26,5/18,5
182401568		16	3/4	40	24 x 1,5	27	22	40.5	35	14	26,5/21
182401596		17	1/2	40	24 x 1,5	27	22	40.5	31.5	15	26,5/18,5
182401598		17	3/4	40	24 x 1,5	27	22	40.5	35	15	26,5/21
182401646		18	1/2	40	24 x 1,5	27	22	40.5	31.5	15	26,5/18,5
182401648	(VVS 044821.222)	18	3/4	40	24 x 1,5	27	22	40.5	35	15	26,5/21
182401678		19	3/4	25	28 x 1,5	32	27	48	35.5	16	30,5/21
182401768		22	3/4	25	28 x 1,5	32	27	48	35.5	19	30,5/21
182401042		3.2	1/8	125	8 x 1	10	7	22	17	2.5	16/11
182401135		6.35	1/8	250	10 x 1	12	10	23.5	17.5	4.5	16/12
182401140		6.35	1/4	250	10 x 1	12	10	25.5	22.5	4.5	18/13
182401230		9.52	1/4	125	14 x 1	17	14	30.5	25	8	20,5/15,5
182401235		9.52	3/8	125	14 x 1	17	14	30.5	25	8	20,5/15
182401434		12.7	1/2	40	20 x 1,5	24	19	36	29.5	11	23,5/16,5
182401541		15.88	1/2	40	24 x 1,5	27	22	40.5	31.5	14	26,5/18,5
