SO 53B30

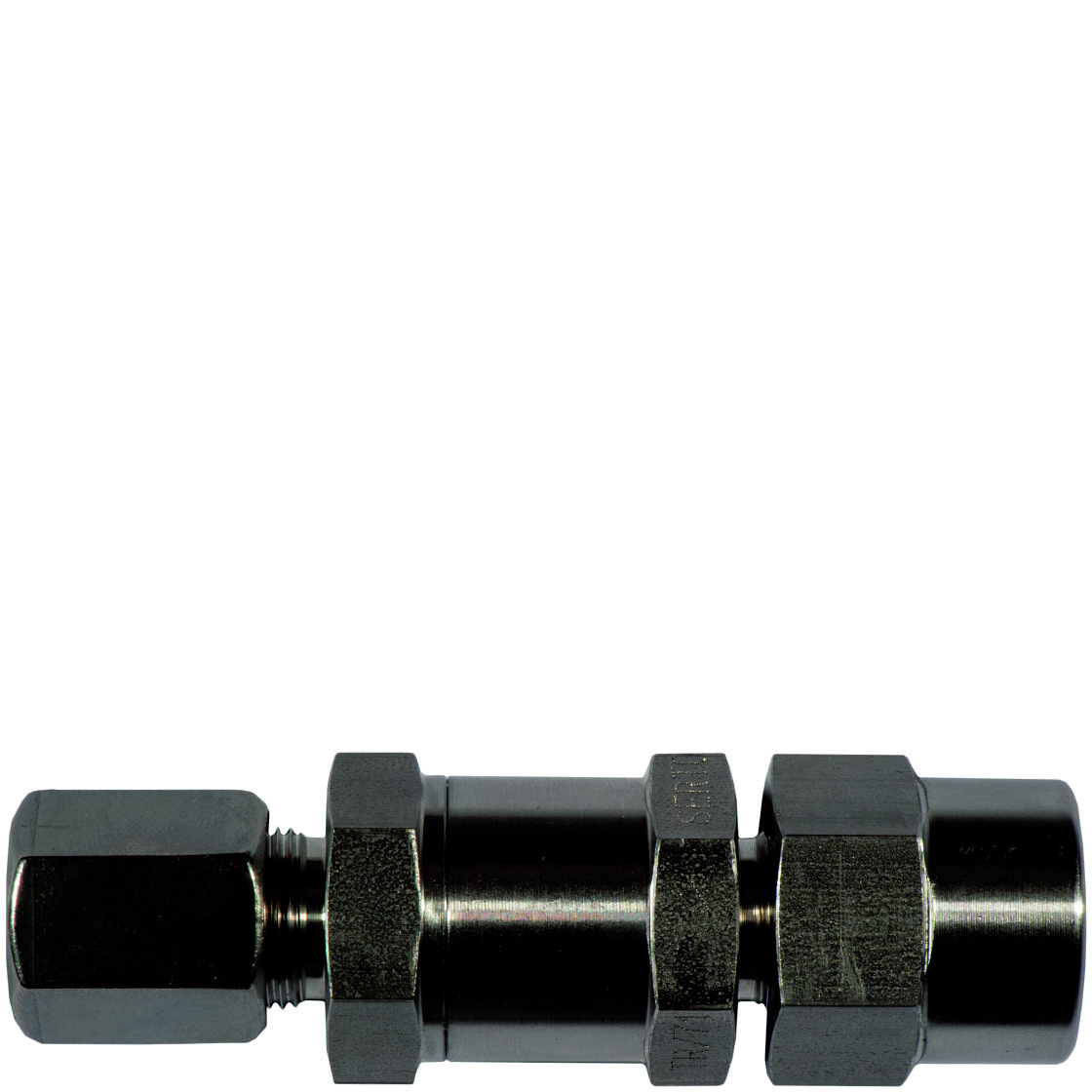

Syrefast Keglekontraventil, cylindrisk indv. gevind

Vis alle mål +

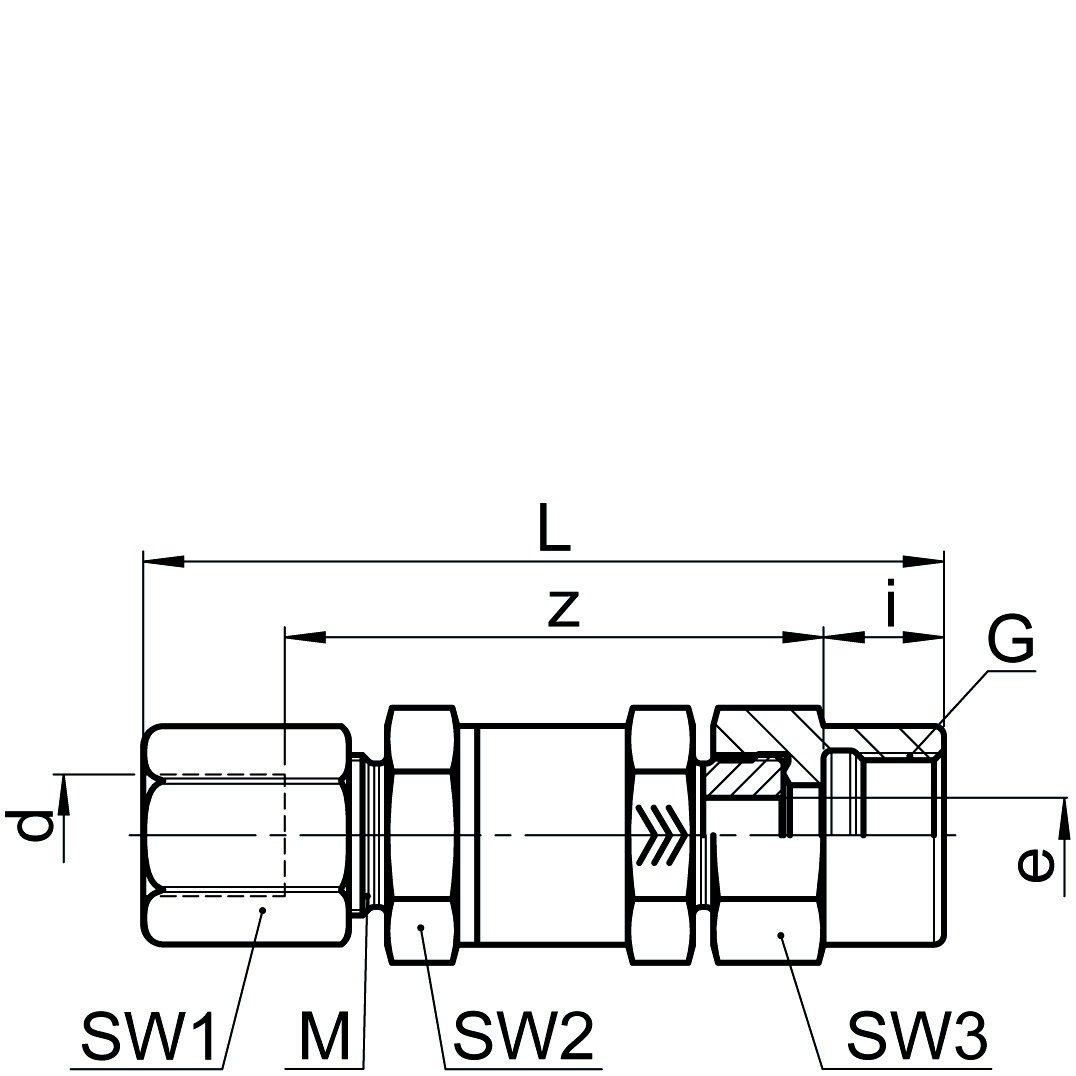

Artikel nummer	d	G	bar	M	SW1	SW2	SW3	L	i	z
0683011060	4	1/8	200	10 x 1	12	17	14	59	10	41.5
0683011082	5	1/8	200	10 x 1	12	17	14	59	10	41.5
0683011100	6	1/8	200	10 x 1	12	17	14	59	10	41.5
0683011110	6	1/4	200	10 x 1	12	17	17	66.5	11	46.5
0683011135	6.35	1/8	200	10 x 1	12	17	14	59	10	41.5
0683011160	8	1/8	200	12 x 1	14	19	17	65	10	46.5
0683011170	8	1/4	200	12 x 1	14	19	17	67	12	48
0683011180	8	3/8	160	12 x 1	14	19	22	67	11	46.5
0683011230	9.52	1/4	160	14 x 1	17	22	17	76	12	53.5
0683011235	9.52	3/8	160	14 x 1	17	22	22	77	12	53.5
0683011270	10	1/4	160	14 x 1	17	22	17	76	12	53.5
0683011280	10	3/8	160	14 x 1	17	22	22	77	12	53.5
0683011400	12	1/2	160	16 x 1	19	22	27	79	12	53.5
0683011434	12.7	1/2	100	20 x 1,5	24	30	27	90	12	62.5
0683011534	15	1/2	100	20 x 1,5	24	30	27	90	12	62.5
