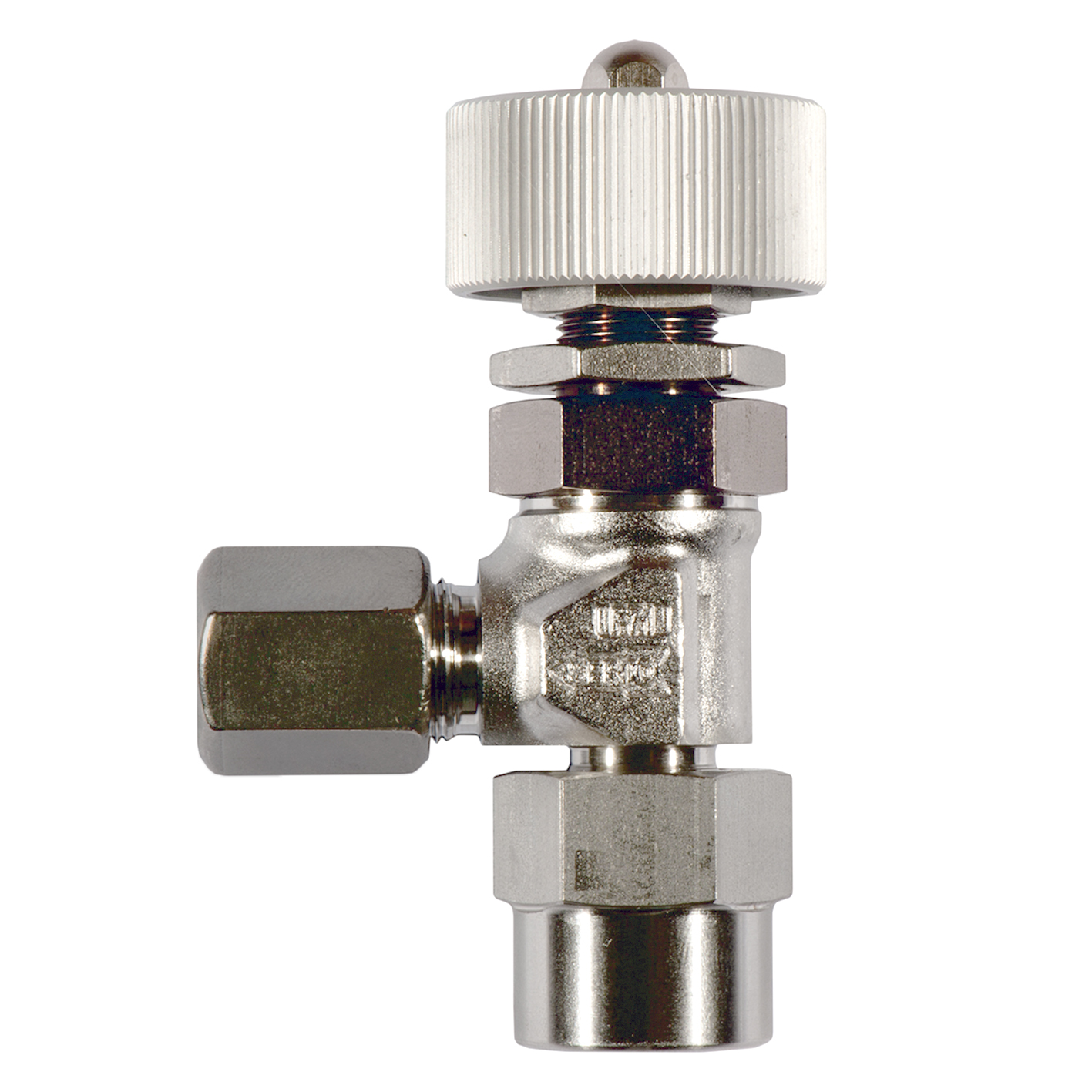

SO NV 51A30E

Syrefast Reguleringsventil 90°, cylindrisk indv. gevind

Syrefast Regulerings ventil med overgangsmuffe
Ventil 90°
G = Cylindrisk indvendigt gevind
AISI316Ti, 1.4571

Modeller
Dokument

Modeller

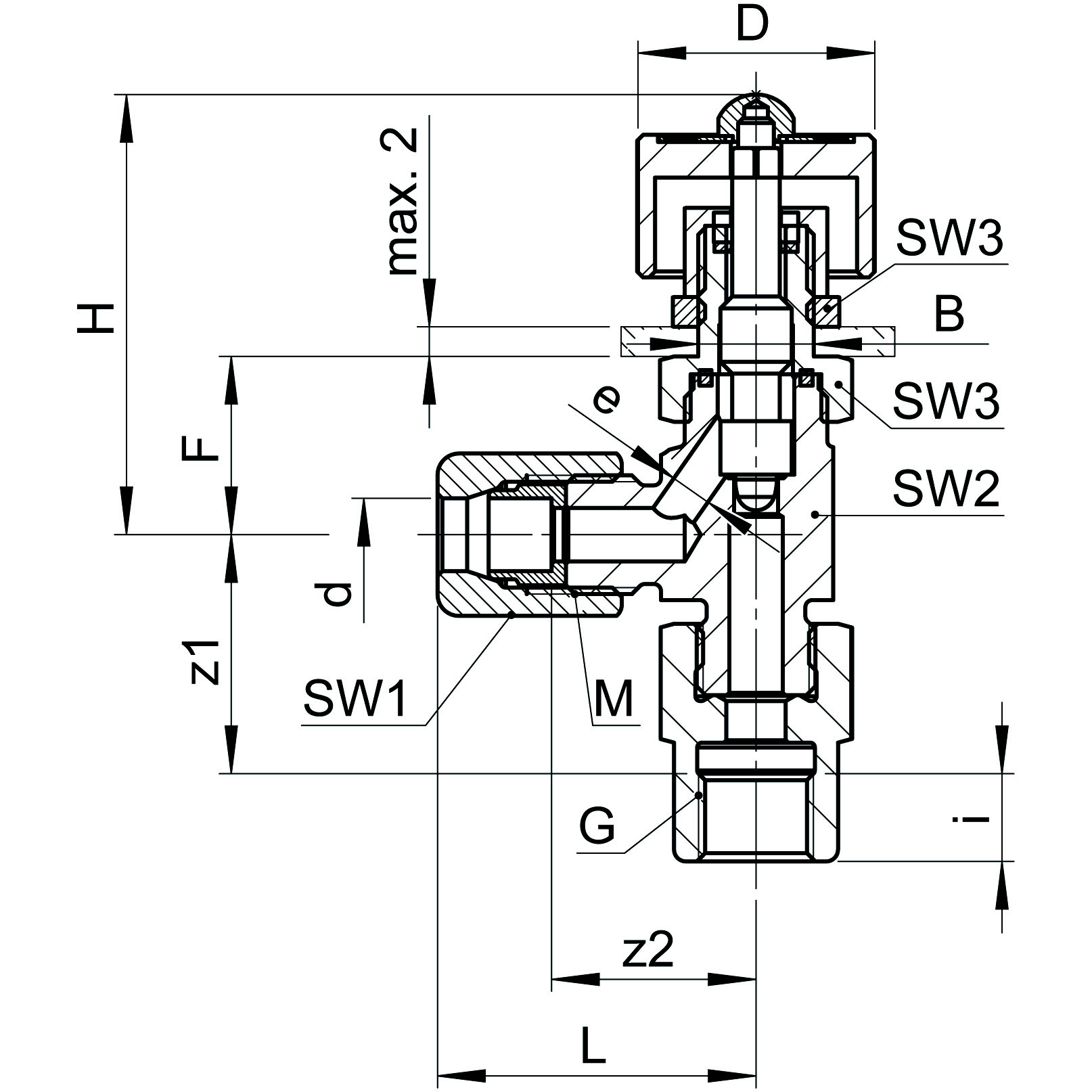

Vis alle mål +

Artikel nummer	VVS-nummer	d	G	bar	e	M	SW1/SW2/SW3	L	i	z1/z2	H/F	Filer
0680022060		4	1/8	100	3.5	10 x 1	12/14/14	25	7.5	20/17	37/14,5
0680022082		5	1/8	100	3.5	10 x 1	12/14/14	25	7.5	20/17	37/14,5
0680022100		6	1/8	100	3.5	10 x 1	12/14/14	27.5	7.5	20/17	37/14,5
0680022135		6.35	1/8	100	3.5	10 x 1	12/14/14	25	7.5	20/17	37/14,5
0680022170		8	1/4	64	6.5	14 x 1	17/22/22	31	8	23/24	51/22
0680022180		8	3/8	64	6.5	14 x 1	17/22/22	35	9	23/24	51/22
0680022230		9.52	1/4	64	7	14 x 1	17/22/22	34.5	8	23/24	51/22
0680022235		9.52	3/8	64	7	14 x 1	17/22/22	34.5	9	23/24	51/22
0680022270		10	1/4	64	7	14 x 1	17/22/22	35	8	23/24	51/22
0680022280		10	3/8	64	7	14 x 1	17/22/22	35	9	23/24	51/22
0680022400		12	1/2	64	7	16 x 1	19/22/22	36	9.5	25,5/24	51/21,5
0680022434		12.7	1/2	64	7	20 x 1,5	22/24/24	36	9.5	25,5/24	51/22
0680022534		15	1/2	40	7	20 x 1,5	22/24/24	36	9.5	25,5/24	51/21,5

Dokument

Datablad
