PFA Kobling Flaretek, udv. gevind

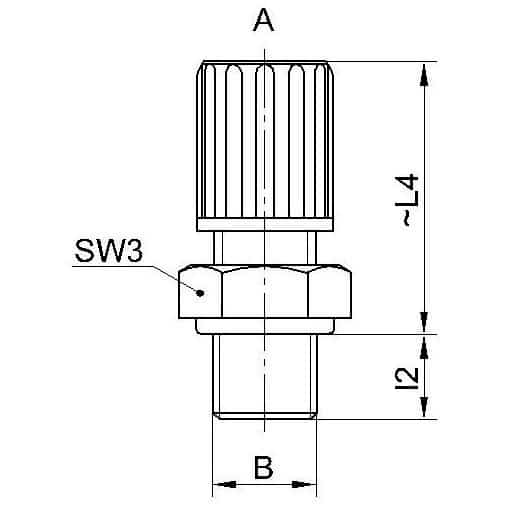

| Artikel nummer | VVS-nummer | A | B | L4 | l2 | SW3 | Filer |
|---|---|---|---|---|---|---|---|
| 1DC10031-Z08-R06 | 1/4" | 1/8" | 35.5 | 8 | 14 | ||
| 1DC10031-Z10-R08 | 3/8" | 1/4" | 40 | 12 | 17 | ||
| 1DC10031-Z10-R10 | 3/8" | 3/8" | 41.5 | 12 | 22 | ||
| 1DC10031-Z10-R15 | 3/8" | 1/2" | 44 | 14 | 27 | ||
| 1DC10031-Z15-R08 | 1/2" | 1/4" | 42 | 12 | 22 | ||
| 1DC10031-Z15-R10 | 1/2" | 3/8" | 42.5 | 12 | 22 | ||
| 1DC10031-Z15-R15 | 1/2" | 1/2" | 45 | 14 | 27 | ||
| 1DC10031-Z15-R20 | 1/2" | 3/4" | 48 | 16 | 32 | ||
| 1DC10031-Z20-R15 | 3/4" | 1/2" | 49 | 14 | 27 | ||
| 1DC10031-Z20-R20 | 3/4" | 3/4" | 52 | 16 | 32 |
| Artikel nummer | 1DC10031-Z08-R06 |
| VVS-nummer | |
| A | 1/4" |
| B | 1/8" |
| L4 | 35.5 |
| l2 | 8 |
| SW3 | 14 |
| Artikel nummer | 1DC10031-Z10-R08 |
| VVS-nummer | |
| A | 3/8" |
| B | 1/4" |
| L4 | 40 |
| l2 | 12 |
| SW3 | 17 |
| Artikel nummer | 1DC10031-Z10-R10 |
| VVS-nummer | |
| A | 3/8" |
| B | 3/8" |
| L4 | 41.5 |
| l2 | 12 |
| SW3 | 22 |
| Artikel nummer | 1DC10031-Z10-R15 |
| VVS-nummer | |
| A | 3/8" |
| B | 1/2" |
| L4 | 44 |
| l2 | 14 |
| SW3 | 27 |
| Artikel nummer | 1DC10031-Z15-R08 |
| VVS-nummer | |
| A | 1/2" |
| B | 1/4" |
| L4 | 42 |
| l2 | 12 |
| SW3 | 22 |
| Artikel nummer | 1DC10031-Z15-R10 |
| VVS-nummer | |
| A | 1/2" |
| B | 3/8" |
| L4 | 42.5 |
| l2 | 12 |
| SW3 | 22 |
| Artikel nummer | 1DC10031-Z15-R15 |
| VVS-nummer | |
| A | 1/2" |
| B | 1/2" |
| L4 | 45 |
| l2 | 14 |
| SW3 | 27 |
| Artikel nummer | 1DC10031-Z15-R20 |
| VVS-nummer | |
| A | 1/2" |
| B | 3/4" |
| L4 | 48 |
| l2 | 16 |
| SW3 | 32 |
| Artikel nummer | 1DC10031-Z20-R15 |
| VVS-nummer | |
| A | 3/4" |
| B | 1/2" |
| L4 | 49 |
| l2 | 14 |
| SW3 | 27 |
| Artikel nummer | 1DC10031-Z20-R20 |
| VVS-nummer | |
| A | 3/4" |
| B | 3/4" |
| L4 | 52 |
| l2 | 16 |
| SW3 | 32 |
