1F15031

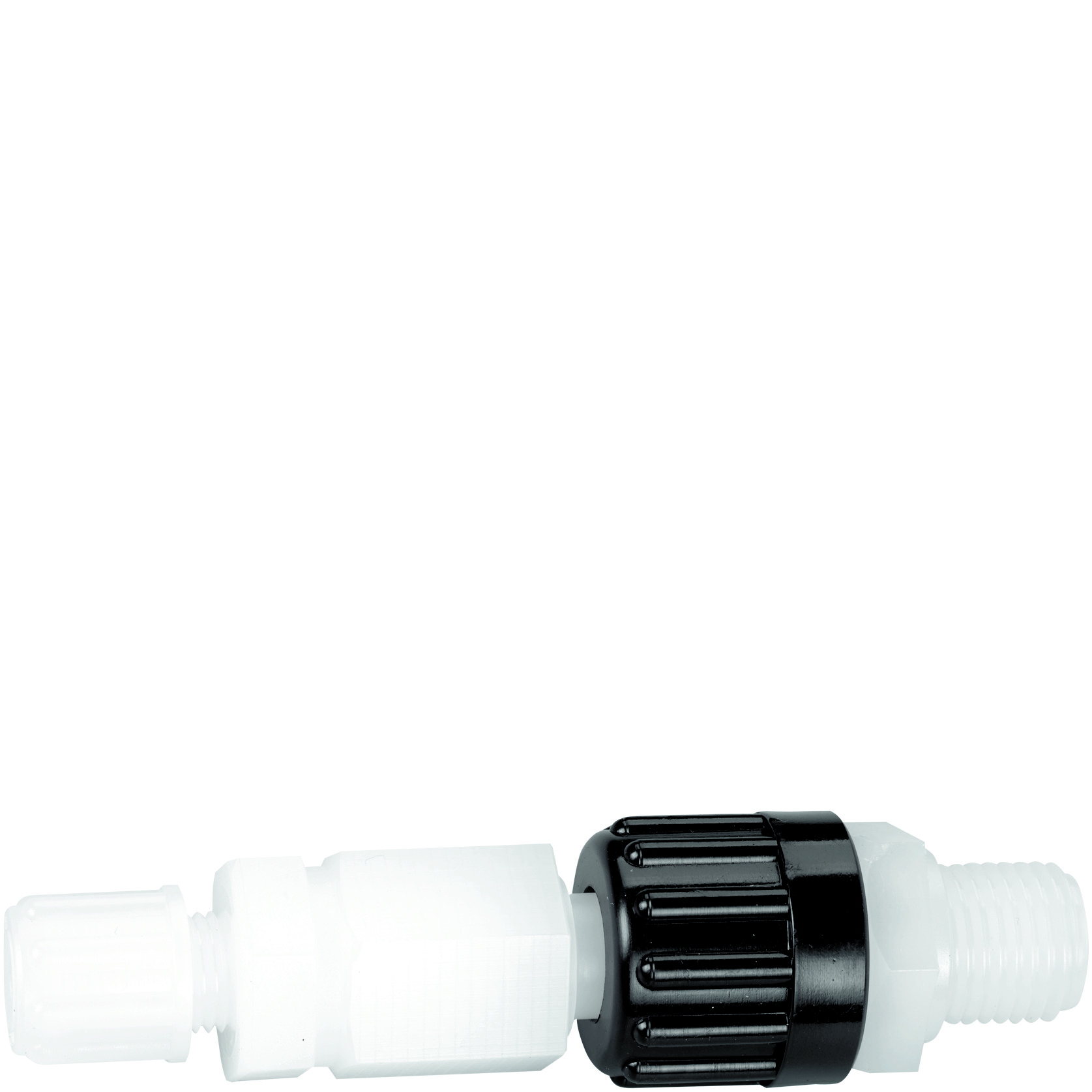

PVDF Kobling med lukkeventil

Vis alle mål +

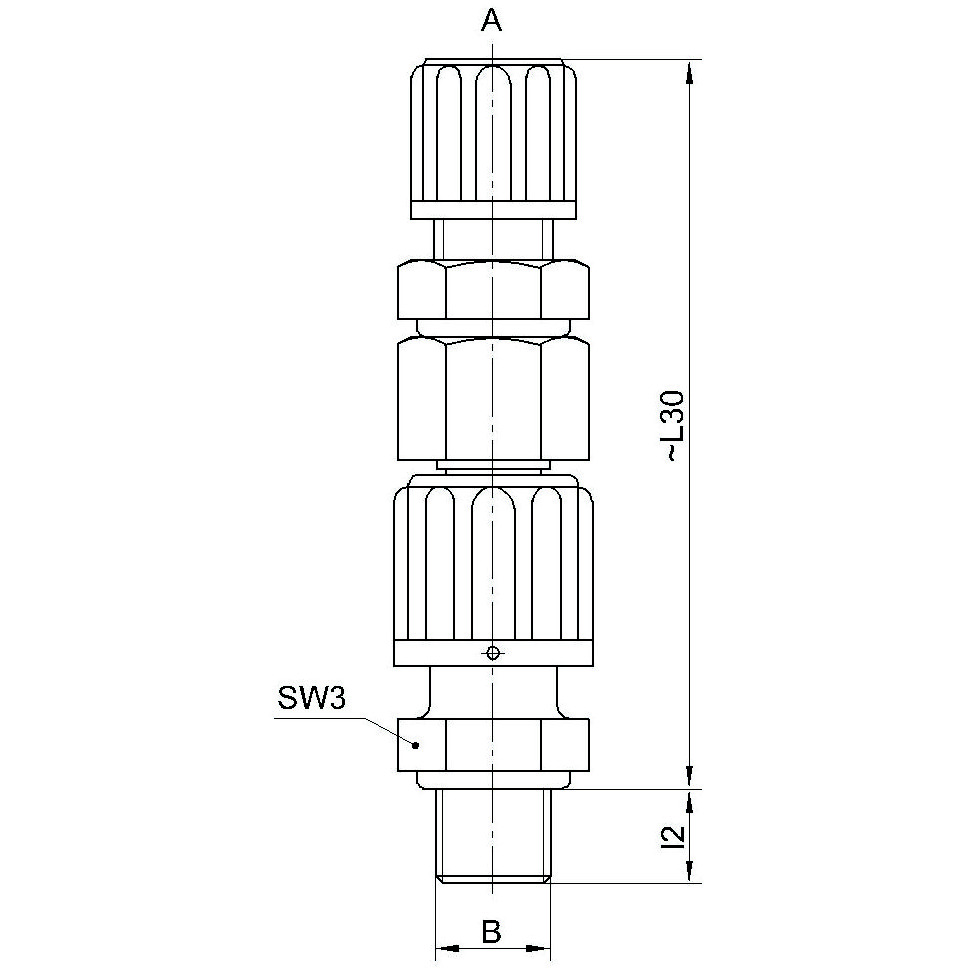

Artikel nummer	A	B	l2	L30	SW3	Filer
1F15031-0604-R08	6/4	1/4"	12	73.5	17
1F15031-0604-R10	6/4	3/8"	12	103	22
1F15031-0604-R15	6/4	1/2"	14	103	27
1F15031-0806-R08	8/6	1/4"	12	76.5	17	CAD/Step
1F15031-0806-R15	8/6	1/2"	14	106	27
1F15031-1006-R08	10/6	1/4"	12	80.5	19
1F15031-1006-R10	10/6	3/8"	12	110	22
1F15031-1006-R15	10/6	1/2"	14	110	27
1F15031-1008-R08	10/8	1/4"	12	80.5	19	CAD/Step
1F15031-1008-R10	10/8	3/8"	12	110	22
1F15031-1008-R15	10/8	1/2"	14	110	27
1F15031-1208-R08	12/8	1/4"	12	82.5	22
1F15031-1208-R10	12/8	3/8"	12	112	22
1F15031-1208-R15	12/8	1/2"	14	112	27
1F15031-1210-R08	12/10	1/4"	12	82.5	22
1F15031-1210-R10	12/10	3/8"	12	112	22
1F15031-1210-R15	12/10	1/2"	14	112	27

Datablad
