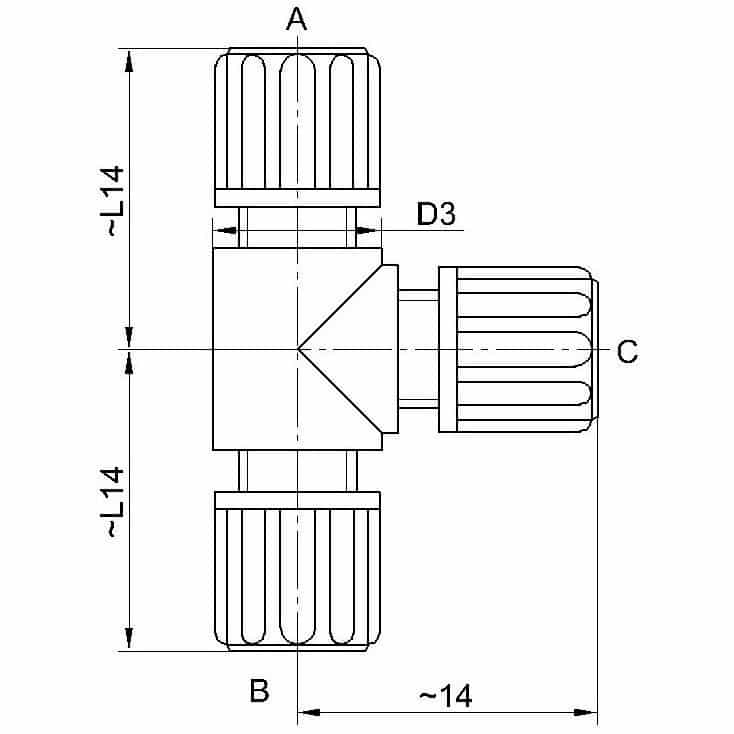

1F30010

PVDF T-stykke, slangetilsl.

Visa alla mått +

Artikel nummer	A	B	C	L14	D3	Filer
1F30010-0604	6/4	6/4	6/4	26	12	CAD/Step
1F30010-0806	8/6	8/6	8/6	31	15	CAD/Step
1F30010-0906	9/6	9/6	9/6
1F30010-1006	10/6	10/6	10/6	36	20
1F30010-1008	10/8	10/8	10/8	36	20	CAD/Step
1F30010-1208	12/8	12/8	12/8	43	20
1F30010-1210	12/10	12/10	12/10	43	20	CAD/Step
1F30010-1410	14/10	14/10	14/10	48	25
1F30010-1412	14/12	14/12	14/12	48	25

Datablad
