Name: 1F33031
SKU: 38346

Vis alle mål +

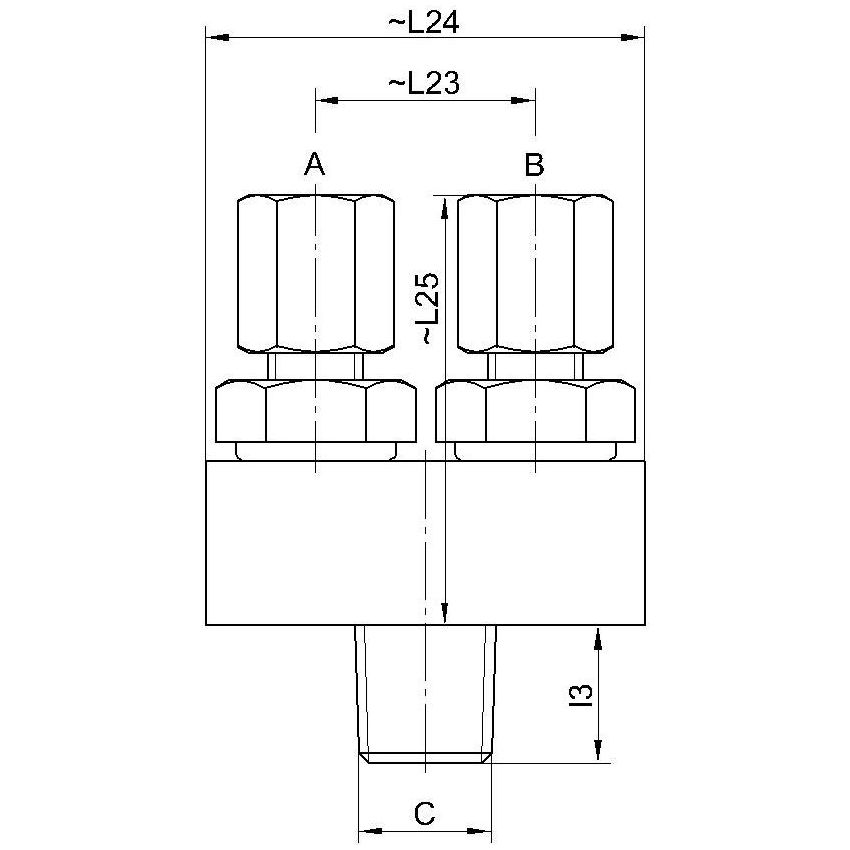

Artikel nummer	d	G	l2	L23	L24	L25
1F33031-0604-R06	6/4	1/8"	8	20	40	43
1F33031-0604-R08	6/4	1/4"	12	20	40	43
1F33031-0604-R10	6/4	3/8"	12	20	40	43
1F33031-0604-R15	6/4	1/2"	14	20	40	43
1F33031-0806-R06	8/6	1/8"	8	25	50	54.5
1F33031-0806-R08	8/6	1/4"	12	25	50	54.5
1F33031-0806-R10	8/6	3/8"	12	25	50	54.5
1F33031-0806-R15	8/6	1/2"	14	25	50	54.5
1F33031-1006-R08	10/6	1/4"	12	25	50	58.5
1F33031-1006-R10	10/6	3/8"	12	25	50	58.5
1F33031-1006-R15	10/6	1/2"	14	25	50	58.5
1F33031-1008-R08	10/8	1/4"	12	25	50	58.5
1F33031-1008-R10	10/8	3/8"	12	25	50	58.5
1F33031-1008-R15	10/8	1/2"	14	25	50	58.5
1F33031-1208-R08	12/8	1/4"	12	28	63	63
1F33031-1208-R10	12/8	3/8"	12	28	63	63
1F33031-1208-R15	12/8	1/2"	14	28	63	63
1F33031-1210-R08	12/10	1/4"	12	28	63	63
1F33031-1210-R10	12/10	3/8"	12	28	63	63
1F33031-1210-R15	12/10	1/2"	14	28	63	63
1F33031-1410-R08	14/10	1/4"	12	32	65	72
1F33031-1410-R10	14/10	3/8"	12	32	65	72
1F33031-1410-R15	14/10	1/2"	14	32	65	72
1F33031-1412-R08	14/12	1/4"	12	32	65	72
1F33031-1412-R10	14/12	3/8"	12	32	65	72
1F33031-1412-R15	14/12	1/2"	14	32	65	72

Datablad

Produktblad

1F33031
