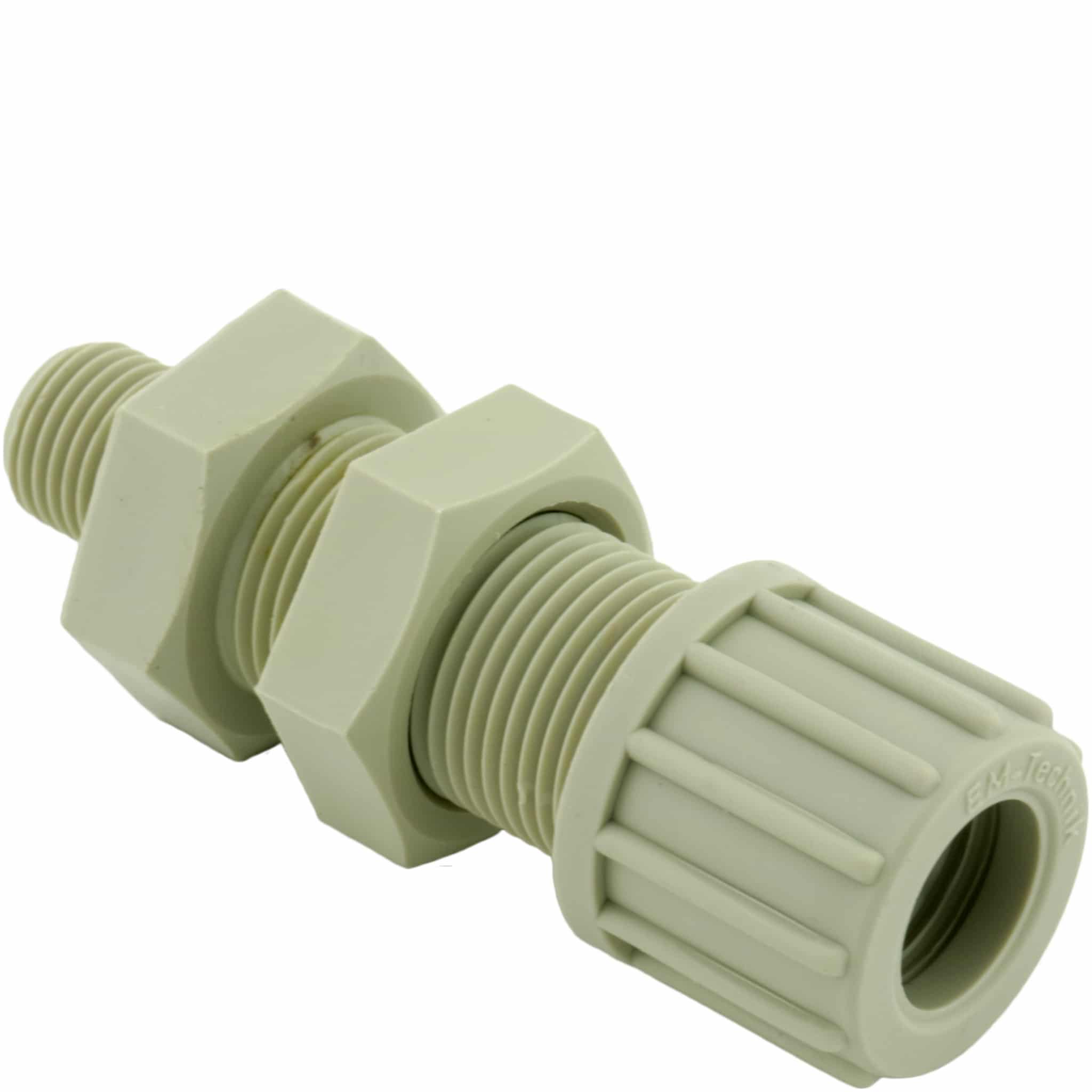

1P10131

PPSkotgennemføring, udv. gevind, slangetilsl.

  • PPSkotgennemføring
  • Udvendigt gevind/slangetilslutning
  • F ås også med NPT-gevind og metrisk gevind
  • Andre dimensioner på forespørgsel.

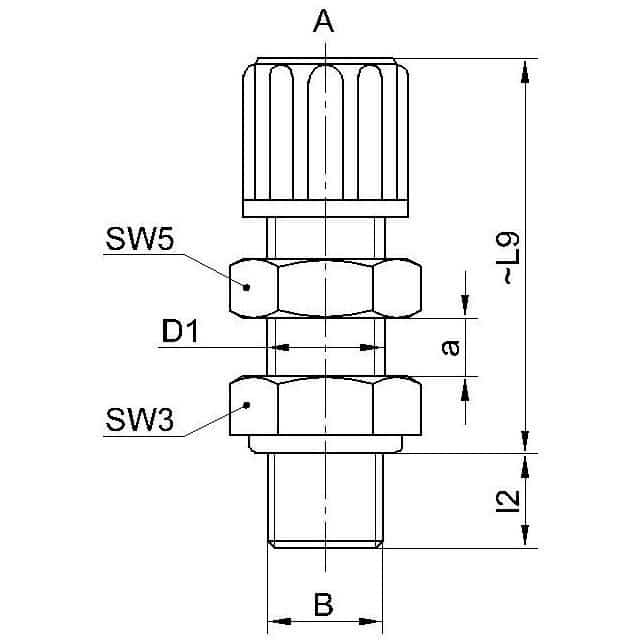

Vis alle mål +
Artikel nummer VVS-nummer ABl2L9SW3SW5D1aFiler
1P10131-0604-R06 6/41/8"837.5141410.59
1P10131-0604-R08 6/41/4"1239171410.59 CAD/Step
1P10131-0604-R10 6/43/8"1240.5221410.59
1P10131-0604-R15 6/41/2"1443271410.59
1P10131-0806-R06 8/61/8"844.5191914.59
1P10131-0806-R08 8/61/4"1245191914.59
1P10131-0806-R10 8/63/8"1245.5221914.59
1P10131-0806-R15 8/61/2"1448271914.59
1P10131-1006-R06 10/61/8"849.5222216.510
1P10131-1006-R08 10/61/4"1250222216.510
1P10131-1006-R10 10/63/8"1250.5222216.510
1P10131-1006-R15 10/61/2"1453272216.510
1P10131-1008-R06 10/81/8"849.5222216.510
1P10131-1008-R08 10/81/4"1250222216.510
1P10131-1008-R10 10/83/8"1250.5222216.510
1P10131-1008-R15 10/81/2"1453272216.510
1P10131-1208-R08 12/81/4"1258242418.512
1P10131-1208-R10 12/83/8"1258.5242418.512
1P10131-1208-R15 12/81/2"1460272418.512
1P10131-1210-R08 12/101/4"1258242418.512
1P10131-1210-R10 12/103/8"1258.5242418.512
1P10131-1210-R15 12/101/2"1460272418.512
1P10131-1410-R08 14/101/4"1267242720.514
1P10131-1410-R10 14/103/8"1267.5242720.514
1P10131-1410-R15 14/101/2"1468272720.514
1P10131-1412-R08 14/121/4"1267242720.514
1P10131-1412-R10 14/123/8"1267.5242720.514
1P10131-1412-R15 14/121/2"1468272720.514
Datablad
