Vis alle mål +

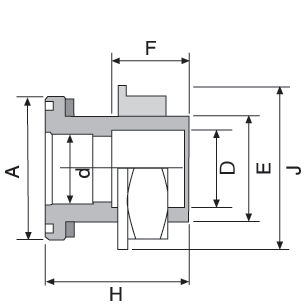

| Artikel nummer | VVS-nummer | d | E | D | J | A | F | H | Filer |
|---|---|---|---|---|---|---|---|---|---|
| 52PP-CSM-016 | 16 | R 3/4 | R 3/8 | 36 | 36 | 17 | 40 | ||
| 52PP-CSM-020 | 20 | R 1 | R 1/2 | 50 | 50 | 18 | 45 | ||
| 52PP-CSM-025 | 25 | R 1 | R 3/4 | 50 | 50 | 18 | 45 | ||
| 52PP-CSM-032 | 32 | R 1 1/4 | R 1 | 60 | 60 | 23 | 60 | ||
| 52PP-CSM-040 | 40 | R 2 | R 1 1/2 | 93 | 80 | 40 | 74 | ||
| 52PP-CSM-063 | 63 | R 2 3/4 | R 2 | 110 | 110 | 40 | 80 | ||
| 52PP-VITON-016 | 062777216 | 16 | R 3/4 | R 3/8 | 36 | 36 | 17 | 40 | |
| 52PP-VITON-020 | 20 | R 1 | R 1/2 | 50 | 50 | 18 | 45 | ||
| 52PP-VITON-025 | 25 | R 1 | R 3/4 | 50 | 50 | 18 | 45 | ||
| 52PP-VITON-032 | 32 | R 1 1/4 | R 1 | 60 | 60 | 23 | 60 | ||
| 52PP-VITON-040 | 40 | R 2 | R 1 1/2 | 93 | 80 | 40 | 74 | ||
| 52PP-VITON-063 | 63 | R 2 3/4 | R 2 | 110 | 110 | 40 | 80 |
