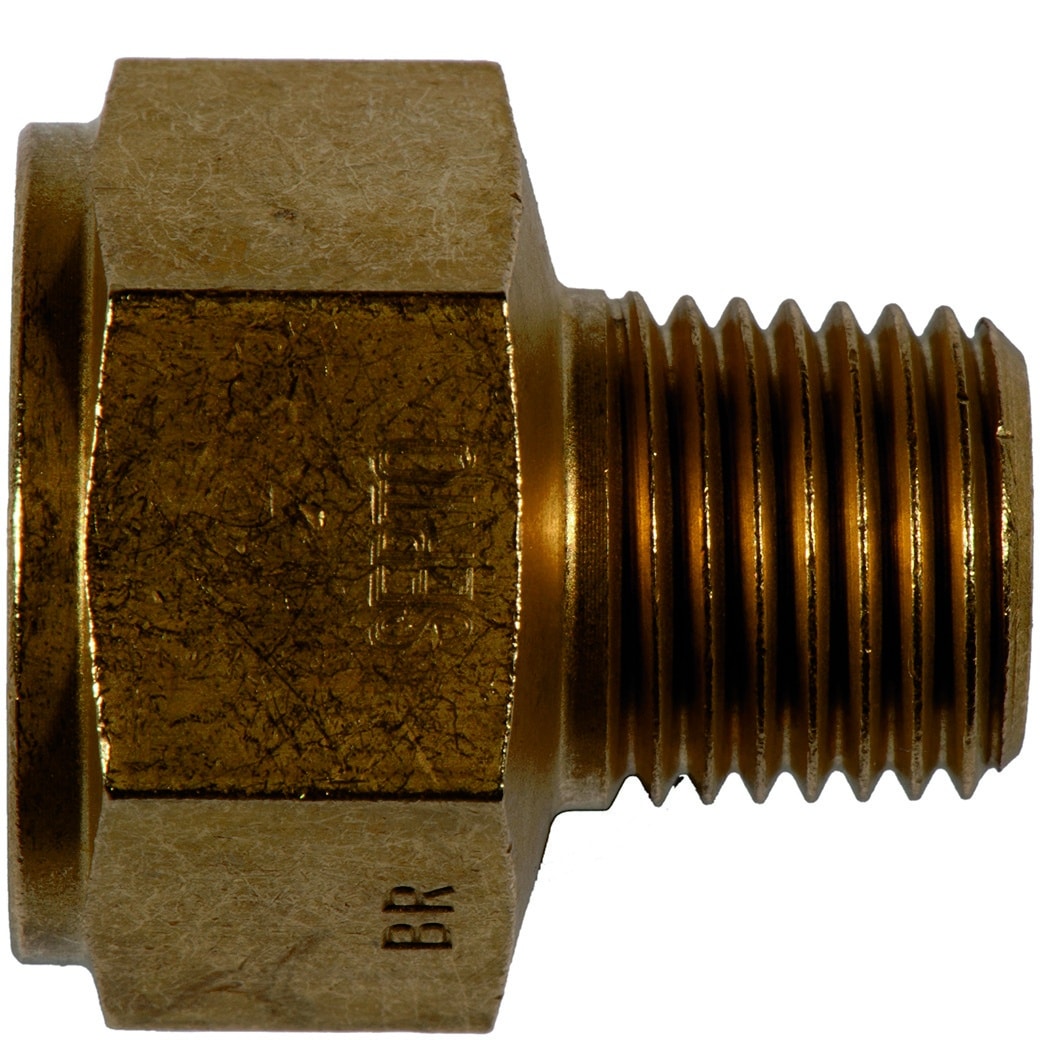

AD A 40 G-R

Messing Overgang

  • Messing Overgang
  • R = Konisk udvendigt gevind NPT
  • G = Cylindrisk indvendigt gevind
Vis alle mål +

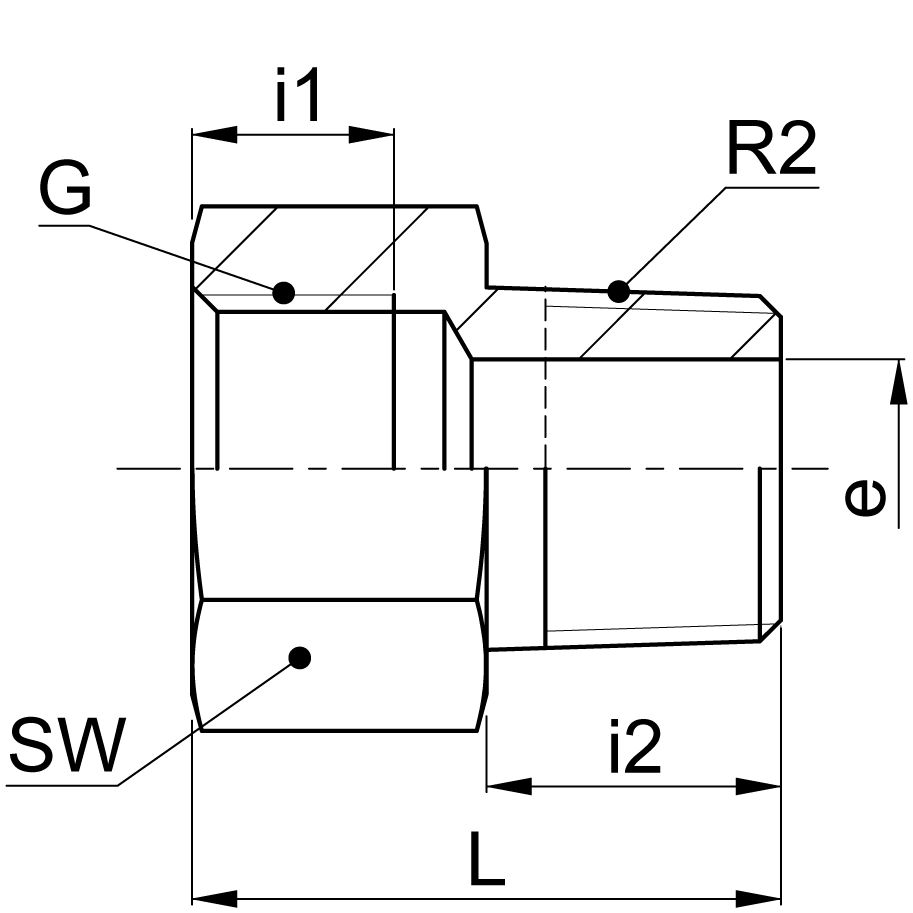

Artikel nummer VVS-nummer GxRSWLi1i2ekg/100Filer
0160411104 1/4"x1/4"17269128.5
0160411042 1/8"×1/8"1421885
0160411044 1/8"×1/4"1417.58128.6
0160411046 1/8"×3/8"17188128.6
0160411048 1/8"×1/2"22239.61614
0160411102 1/4"×1/8"1721985
0160411106 1/4"×3/8"172091211.4
0160411108 1/4"×1/2"22239.71614
0160411110 1/4"×3/4"2725.511.216.519
0160411162 3/8"×1/8"22249.585
0160411164 (VVS 044812.118) 3/8"×1/4"22279.5128.5
0160411166 3/8"x3/8"22279.51210.5
0160411168 3/8"×1/2"22269.51615
0160411170 3/8"×3/4"2725.59.516.514.8
0160411224 1/2"×1/4"272911.5128.5
0160411226 1/2"×3/8"272911.51210.5
0160411228 1/2"x1/2"273211.51413
0160411232 1/2"×3/4"2727.511.516.518.6
0160411236 1/2"×1"363112.518.524
0160411286 3/4"×3/8"3233.5141210.5
0160411288 3/4"×1/2"3237.5141614
0160411292 3/4"×3/4"32381416.519
0160411296 3/4"×1"3631142024.1
Datablad
Produktblad
