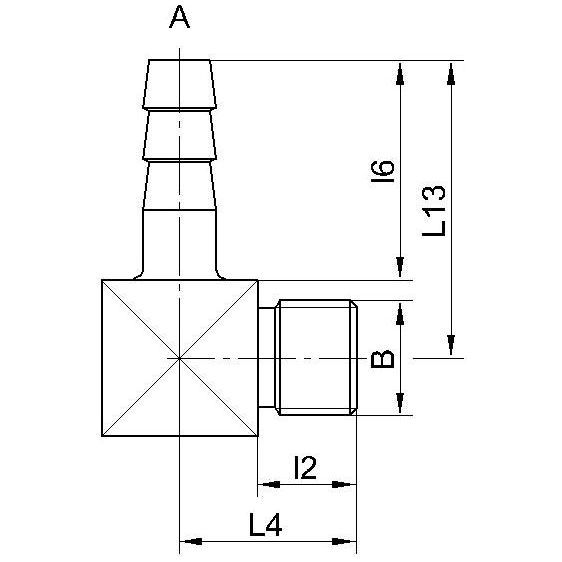

| Artikel nummer | VVS-nummer | A | B | l2 | l6 | L4 | L13 | Filer |
|---|---|---|---|---|---|---|---|---|
| AGFF 004-R006 | 4 | 1/8" | 8 | 21 | 21 | 30 | ||
| AGFF 004-R008 | 4 | 1/4" | 12 | 21 | 22 | 30 | ||
| AGFF 004-R010 | 4 | 3/8" | 12 | 21 | 27 | 33 | ||
| AGFF 004-R015 | 4 | 1/2" | 14 | 21 | 29 | 36 | ||
| AGFF 006-R006 | 6 | 1/8" | 8 | 23 | 23 | 32 | ||
| AGFF 006-R008 | 6 | 1/4" | 12 | 23 | 27 | 32 | ||
| AGFF 006-R010 | 6 | 3/8" | 12 | 23 | 27 | 35 | ||
| AGFF 006-R015 | 6 | 1/2" | 14 | 23 | 29 | 38 | ||
| AGFF 008-R008 | 8 | 1/4" | 12 | 23 | 27 | 32 | ||
| AGFF 008-R010 | 8 | 3/8" | 12 | 23 | 27 | 35 | ||
| AGFF 008-R015 | 8 | 1/2" | 14 | 23 | 31 | 38 | ||
| AGFF 010-R008 | 10 | 1/4" | 12 | 27 | 27 | 39 | ||
| AGFF 010-R010 | 10 | 3/8" | 12 | 27 | 29 | 42 | ||
| AGFF 010-R015 | 10 | 1/2" | 14 | 27 | 31 | 42 | ||
| AGFF 012-R008 | 12 | 1/4" | 12 | 31 | 29 | 46 | ||
| AGFF 012-R010 | 12 | 3/8" | 12 | 31 | 29 | 46 | ||
| AGFF 012-R015 | 12 | 1/2" | 14 | 31 | 31 | 46 |
