AGFM

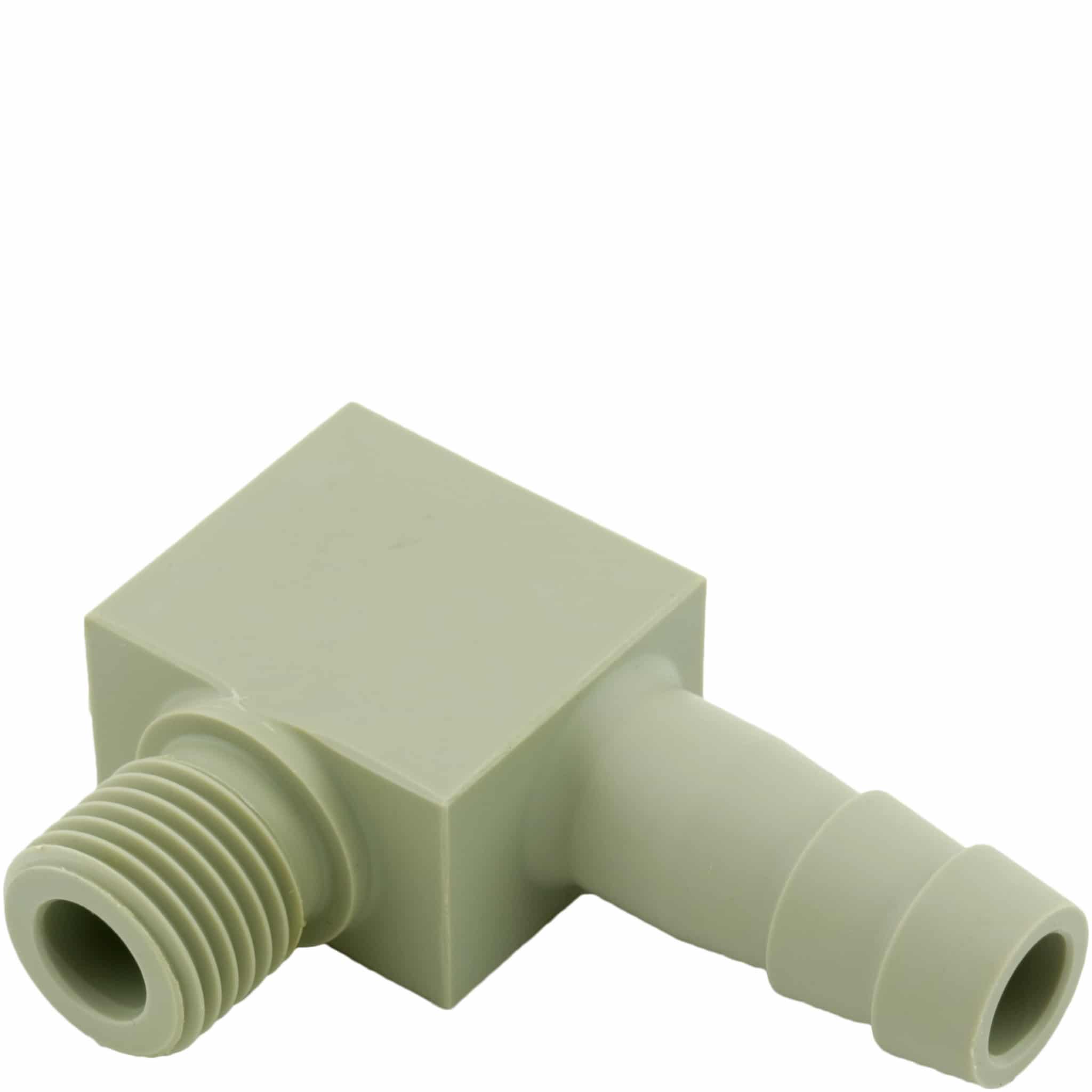

PPSlangestuds 90°

  • PP Slangestuds 90 °
  • Udvendigt gevind
Vis alle mål +

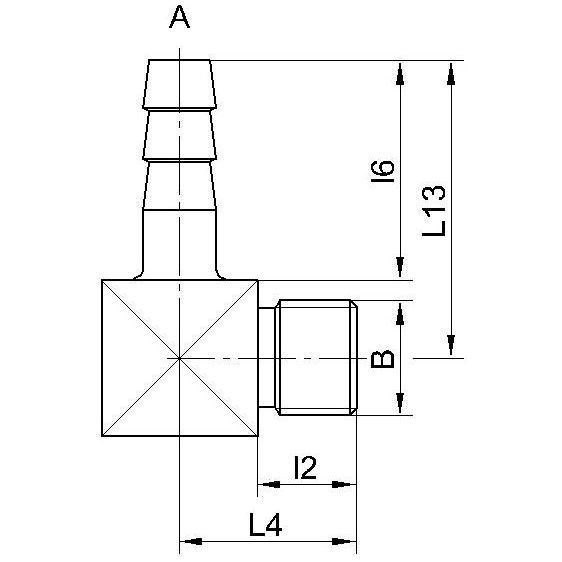

Artikel nummer VVS-nummer ABL4l2l6L13Filer
AGFM 004-R006 41/8"17102130
AGFM 004-R008 41/4"20152133
AGFM 004-R010 43/8"20152136 CAD/Step
AGFM 004-R015 41/2"20162138.5
AGFM 006-R006 61/8"20102332
AGFM 006-R008 61/4"20152335
AGFM 006-R010 63/8"20152338
AGFM 006-R015 61/2"25162340.5
AGFM 008-R006 81/8"20102332
AGFM 008-R008 81/4"20152335
AGFM 008-R010 83/8"25152338
AGFM 008-R015 81/2"30162340.5
AGFM 010-R008 101/4"25152739
AGFM 010-R010 103/8"25152742
AGFM 010-R015 101/2"30162744.5
AGFM 012-R008 121/4"25153143
AGFM 012-R010 123/8"25153146
AGFM 012-R015 121/2"30163148.5
Datablad
