Name: CVS4M-UFJ
SKU: 7260

CVS4M-UFJ

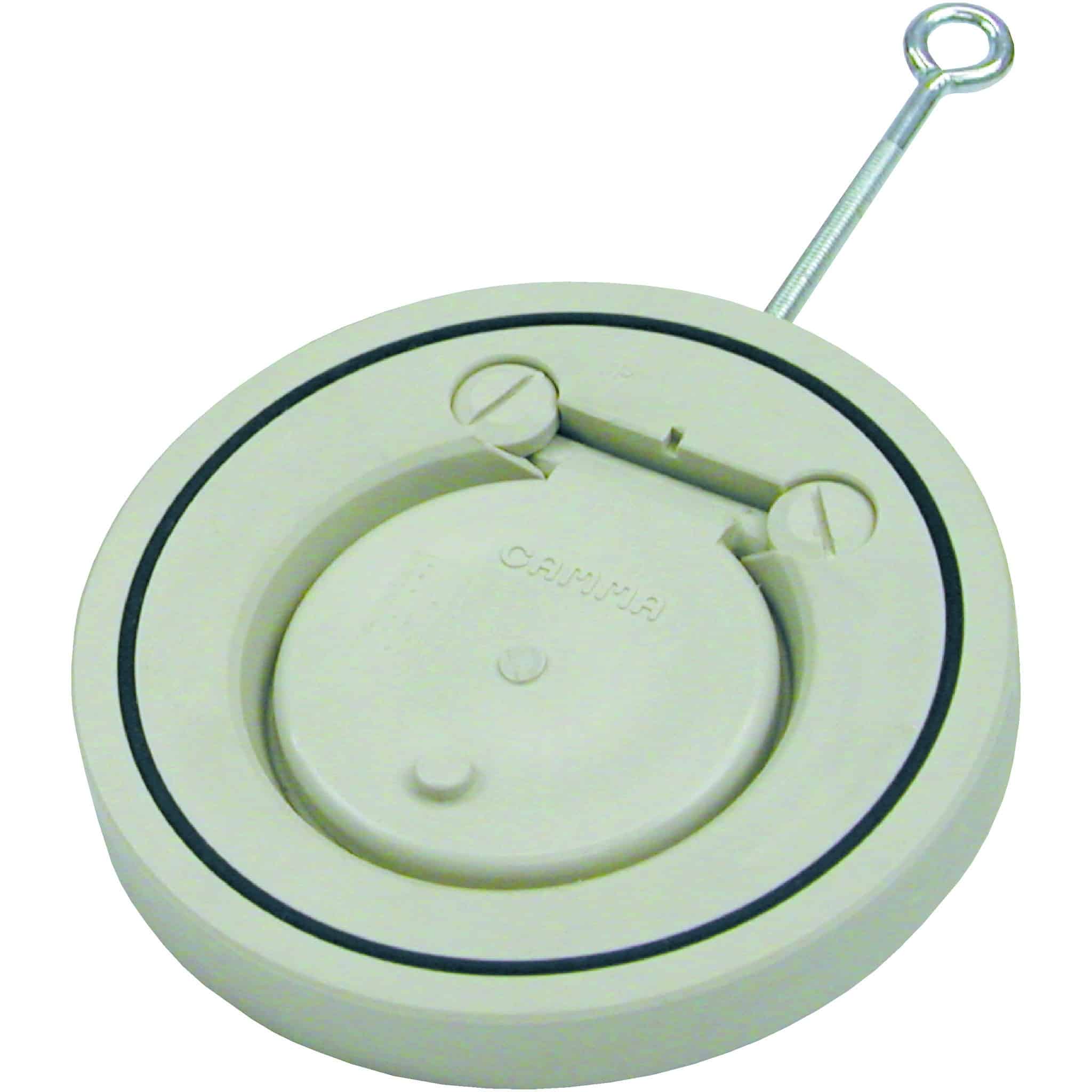

PP Kontraklapventiler uden fjeder – DN32-300

Vis alle mål +

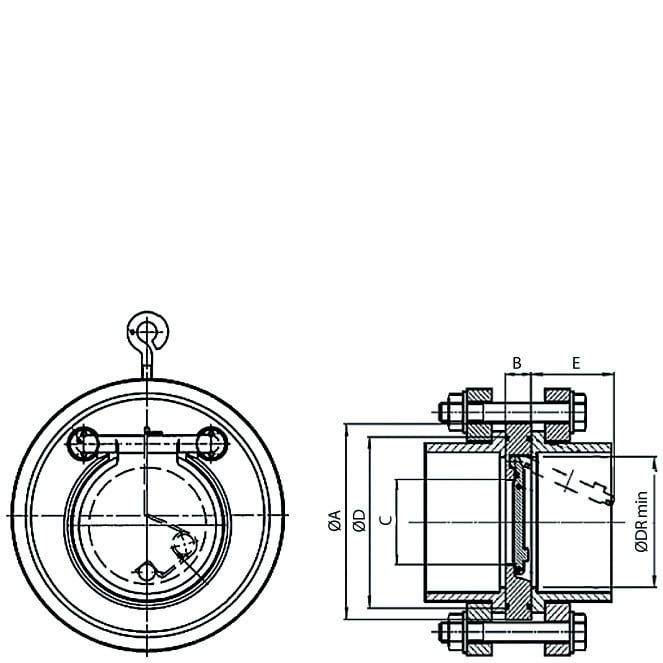

Artikel nummer	VVS-nummer	DN	A	B	C	D	E
CVS4M-E-032-UFJ	062884040	32	85	15	18	59	22
CVS4M-E-040-UFJ	062884050	40	95	16	22	72	25
CVS4M-E-050-UFJ	062884063	50	109	18	32	86	37
CVS4M-E-065-UFJ	062884075	65	129	20	40	105	50
CVS4M-E-080-UFJ	062884090	80	144	20	54	119	61
CVS4M-E-100-UFJ	062884110	100	164	23	70	146	77
CVS4M-E-125-UFJ	062884140	125	195	23	92	173	94
CVS4M-E-150-UFJ	062884160	150	220	26	105	197	100
CVS4M-E-200-UFJ	062884225	200	275	34	154	255	152
CVS4M-E-250-UFJ	062884280	250	330	40	192	312	180
CVS4M-E-300-UFJ	062884315	300	380	45	227	363	215
CVS4M-E-350-UFJ	062884350	350	440	49	266	416	245
CVS4M-E-400-UFJ	062884400	400	491	65	310	467	285
CVS4M-E-450-UFJ		450	541	78	350	520	330
CVS4M-E-500-UFJ		500	596	87	400	550	385
CVS4M-V-032-UFJ		32	85	15	18	59	22
CVS4M-V-040-UFJ		40	95	16	22	72	25
CVS4M-V-050-UFJ		50	109	18	32	86	37
CVS4M-V-065-UFJ		65	129	20	40	105	50
CVS4M-V-080-UFJ		80	144	20	54	119	61
CVS4M-V-100-UFJ		100	164	23	70	146	77
CVS4M-V-125-UFJ		125	195	23	92	173	94
CVS4M-V-200-UFJ		200	275	34	154	255	152
CVS4M-V-250-UFJ		250	330	40	192	312	180
CVS4M-V-100-HAST		100	164	23	70	146	77
