Vis alle mål +

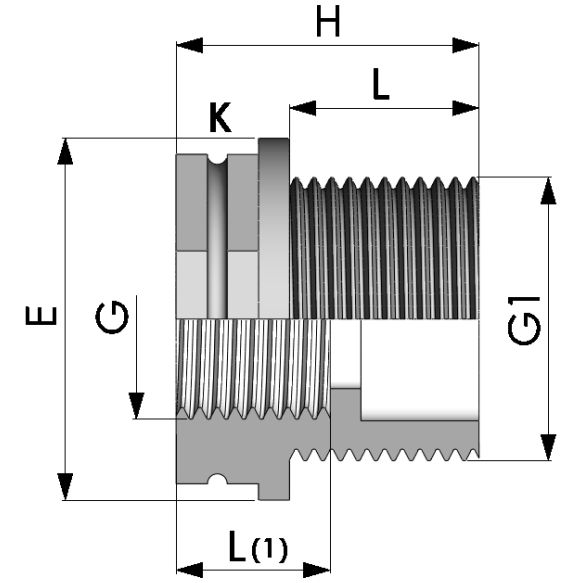

| Artikel nummer | VVS-nummer | G1 | G | H | E | K | L | L1 | Filer |
|---|---|---|---|---|---|---|---|---|---|
| DFM-I R010-R008 | 3/8" | ¼" | 20 | 20 | 17 | 10 | 10 | ||
| DFM-I R020-R015 | ¾" | ½" | 33 | 31 | 27 | 18 | 17 | ||
| DFM-I R025-R015 | 1" | ½" | 35 | 41 | 36 | 19.5 | 17 | ||
| DFM-I R025-R020 | 1" | ¾" | 35 | 41 | 36 | 19.5 | 19 | ||
| DFM-I R032-R015 | 1¼" | ½" | 39 | 49.5 | 46 | 21 | 15 | ||
| DFM-I R032-R020 | 1¼" | ¾" | 39 | 49.5 | 46 | 21 | 16 | ||
| DFM-I R032-R025 | 1¼" | 1" | 39 | 49.5 | 46 | 21 | 19 | ||
| DFM-I R040-R020 | 1½" | ¾" | 39 | 54 | 50 | 21 | 16 | ||
| DFM-I R040-R025 | 1½" | 1" | 39 | 54 | 50 | 21 | 19 | ||
| DFM-I R040-R032 | 1½" | 1¼" | 39 | 54 | 50 | 21 | 21 | ||
| DFM-I R050-R025 | 2" | 1" | 43.5 | 69 | 65 | 25.5 | 19 | ||
| DFM-I R050-R032 | 2" | 1¼" | 43.5 | 69 | 65 | 25.5 | 21 | ||
| DFM-I R050-R040 | 2" | 1½" | 43.5 | 69 | 65 | 25.5 | 21 | ||
| DFM-I R065-R050 | 2½" | 2" | |||||||
| DFM-I R080-R050 | 3" | 2" | |||||||
| DFM-I R080-R065 | 3" | 2½" |
