GELE-RC

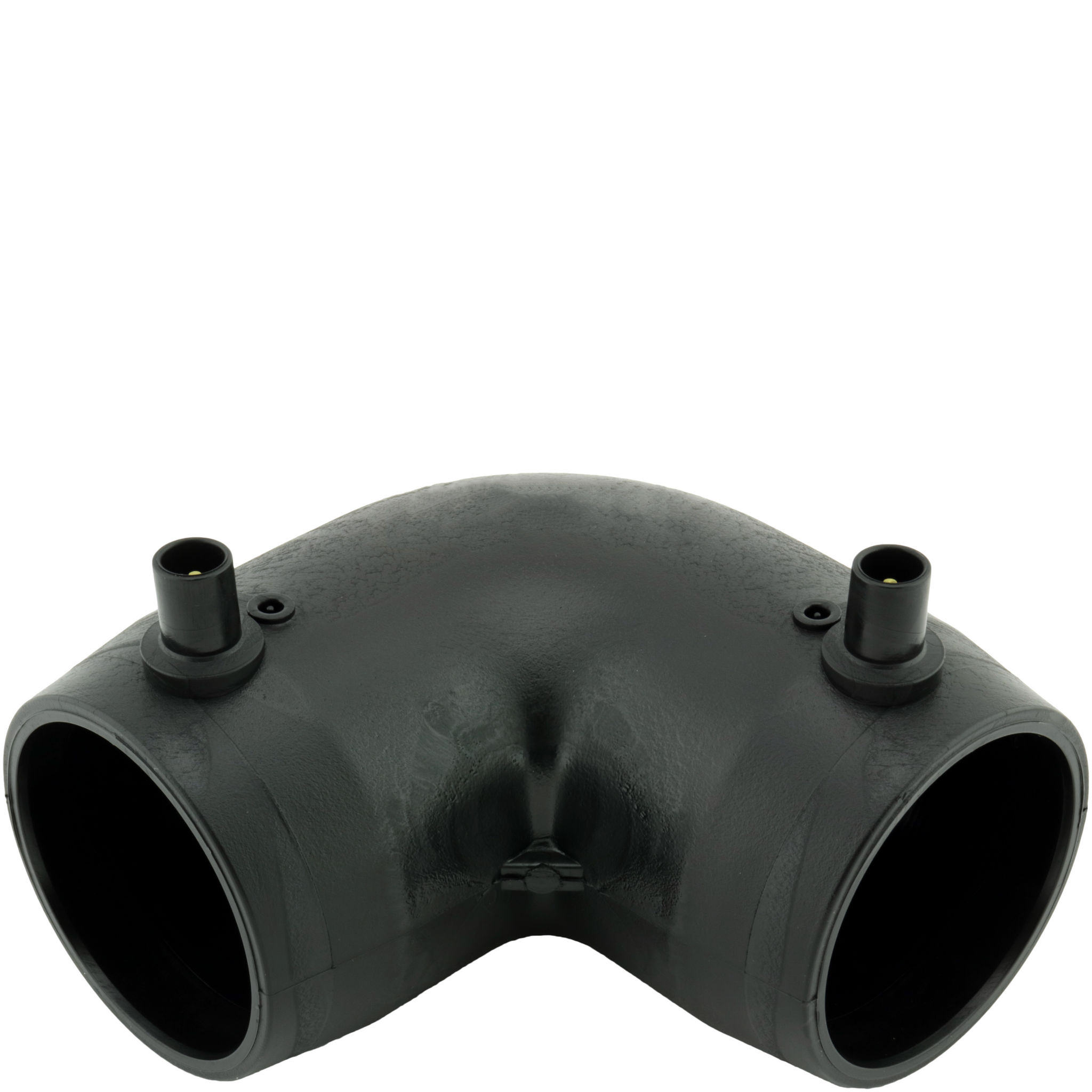

PE100-RC Vinkel 90° SDR11 PN16

Vis alle mål +

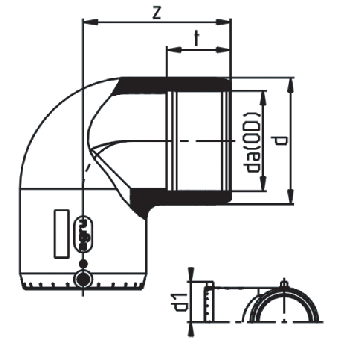

Artikel nummer	VVS-nummer	da(OD)	z	d	d1	t	SDR
GELE-RC-020	078306020	20	58	30	37	37.5	11-7.4
GELE-RC-025	078306025	25	61	35	40	40.3	11-7,4
GELE-RC-032	078306032	32	65	42	44	44	11
GELE-RC-040	078306040	40	75	53	49	49	11
GELE-RC-050	078306050	50	85	67	53	55	17-11
GELE-RC-063	078306063	63	99	83	60	62.7	17-11
GELE-RC-075	078306075	75	114	97	66	70	17-11
GELE-RC-090	078306090	90	147	114	73	70.5	17-11
GELE-RC-110	078306110	110	164	140	82.5	70.5	17-11
GELE-RC-125	078306125	125	164	161	91	84	17-7,4
GELE-RC-140		140	172	173	97	89.5	17-11
GELE-RC-160	078306160	160	222	200	109	87	17-11
GELE-RC-180	078306180	180	230	224	118	98.5	26-11
GELE-RC-200	078306200	200	250	248	129.5	106.5	26-11
GELE-RC-225	078306225	225	274	279	144	112.5	17-11
GELE-P 250		250	322			128	17-11
GELE-P 315	078306315	315	383			145	17-11

Datablad
