PVC Butterflyventil pneumatisk aktuator (NC) FPM

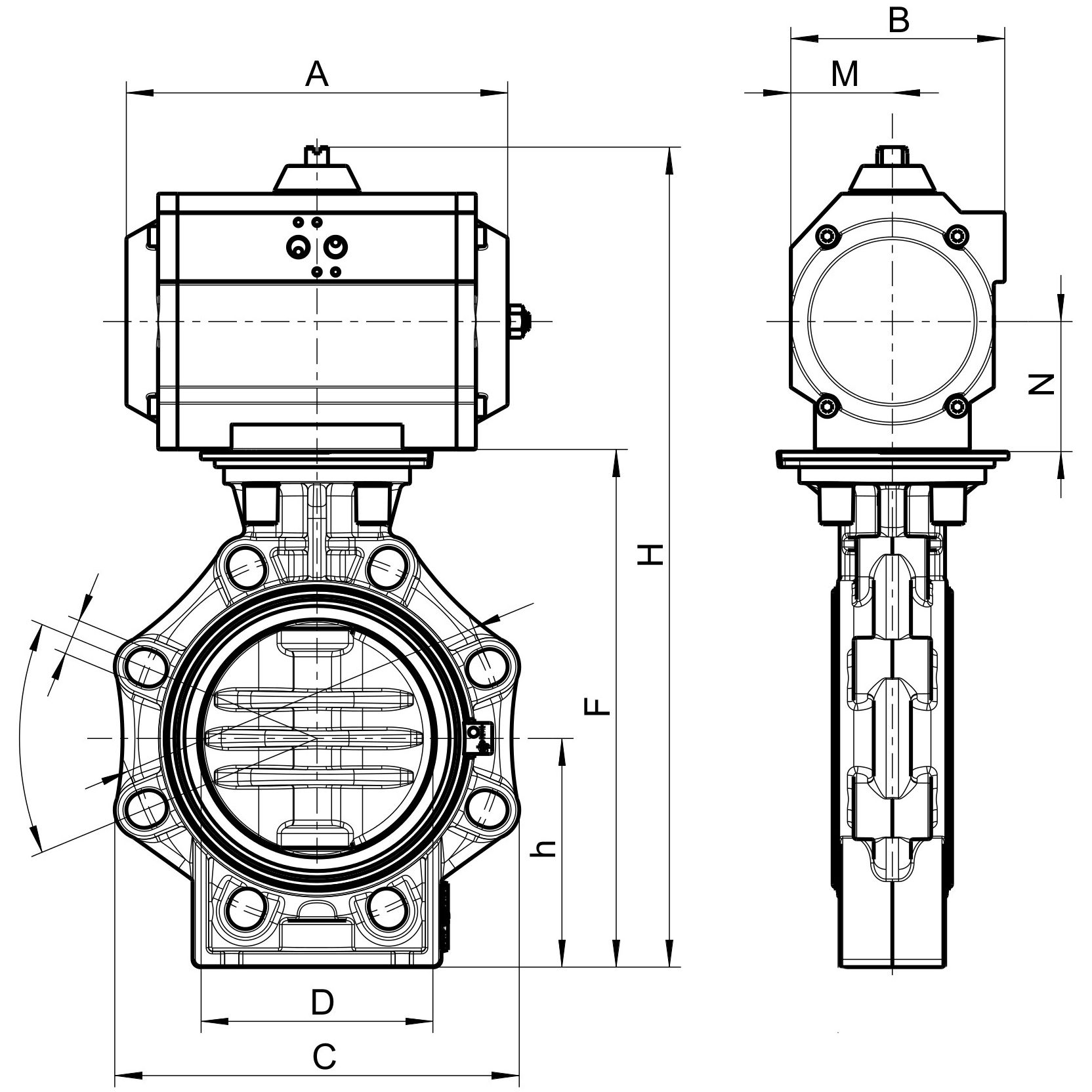

| Artikel nummer | VVS-nummer | D | C | h | F | H | A | M | B | N | Don | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K4OU/NC-V-075 | 75 | 65 | 100 | 232 | 379 | 313 | 68 | 122 | 64 | PP20S | ||
| K4OU/NC-V-090 | 90 | 80 | 100 | 239 | 386 | 313 | 68 | 122 | 64 | PP20S | ||
| K4OU/NC-V-110 | 110 | 100 | 115 | 269 | 416 | 313 | 68 | 122 | 64 | PP20S | ||
| K4OU/NC-V-140 | 140 | 125 | 130 | 303.5 | 478.5 | 358 | 89 | 153 | 77 | PA25S | ||
| K4OU/NC-V-160 | 160 | 150 | 147.5 | 333 | 524 | 429 | 97 | 169 | 86 | PA30S | ||
| K4OU/NC-V-225 | 225 | 200 | 175 | 395 | 667 | 598 | 120 | 226 | 116 | PA40S |
| Artikel nummer | K4OU/NC-V-075 |
| VVS-nummer | |
| D | 75 |
| C | 65 |
| h | 100 |
| F | 232 |
| H | 379 |
| A | 313 |
| M | 68 |
| B | 122 |
| N | 64 |
| Don | PP20S |
| Artikel nummer | K4OU/NC-V-090 |
| VVS-nummer | |
| D | 90 |
| C | 80 |
| h | 100 |
| F | 239 |
| H | 386 |
| A | 313 |
| M | 68 |
| B | 122 |
| N | 64 |
| Don | PP20S |
| Artikel nummer | K4OU/NC-V-110 |
| VVS-nummer | |
| D | 110 |
| C | 100 |
| h | 115 |
| F | 269 |
| H | 416 |
| A | 313 |
| M | 68 |
| B | 122 |
| N | 64 |
| Don | PP20S |
| Artikel nummer | K4OU/NC-V-140 |
| VVS-nummer | |
| D | 140 |
| C | 125 |
| h | 130 |
| F | 303.5 |
| H | 478.5 |
| A | 358 |
| M | 89 |
| B | 153 |
| N | 77 |
| Don | PA25S |
| Artikel nummer | K4OU/NC-V-160 |
| VVS-nummer | |
| D | 160 |
| C | 150 |
| h | 147.5 |
| F | 333 |
| H | 524 |
| A | 429 |
| M | 97 |
| B | 169 |
| N | 86 |
| Don | PA30S |
| Artikel nummer | K4OU/NC-V-225 |
| VVS-nummer | |
| D | 225 |
| C | 200 |
| h | 175 |
| F | 395 |
| H | 667 |
| A | 598 |
| M | 120 |
| B | 226 |
| N | 116 |
| Don | PA40S |
