PP Kugleventil 2-vejs med indvendige PE100 muffesvejseender

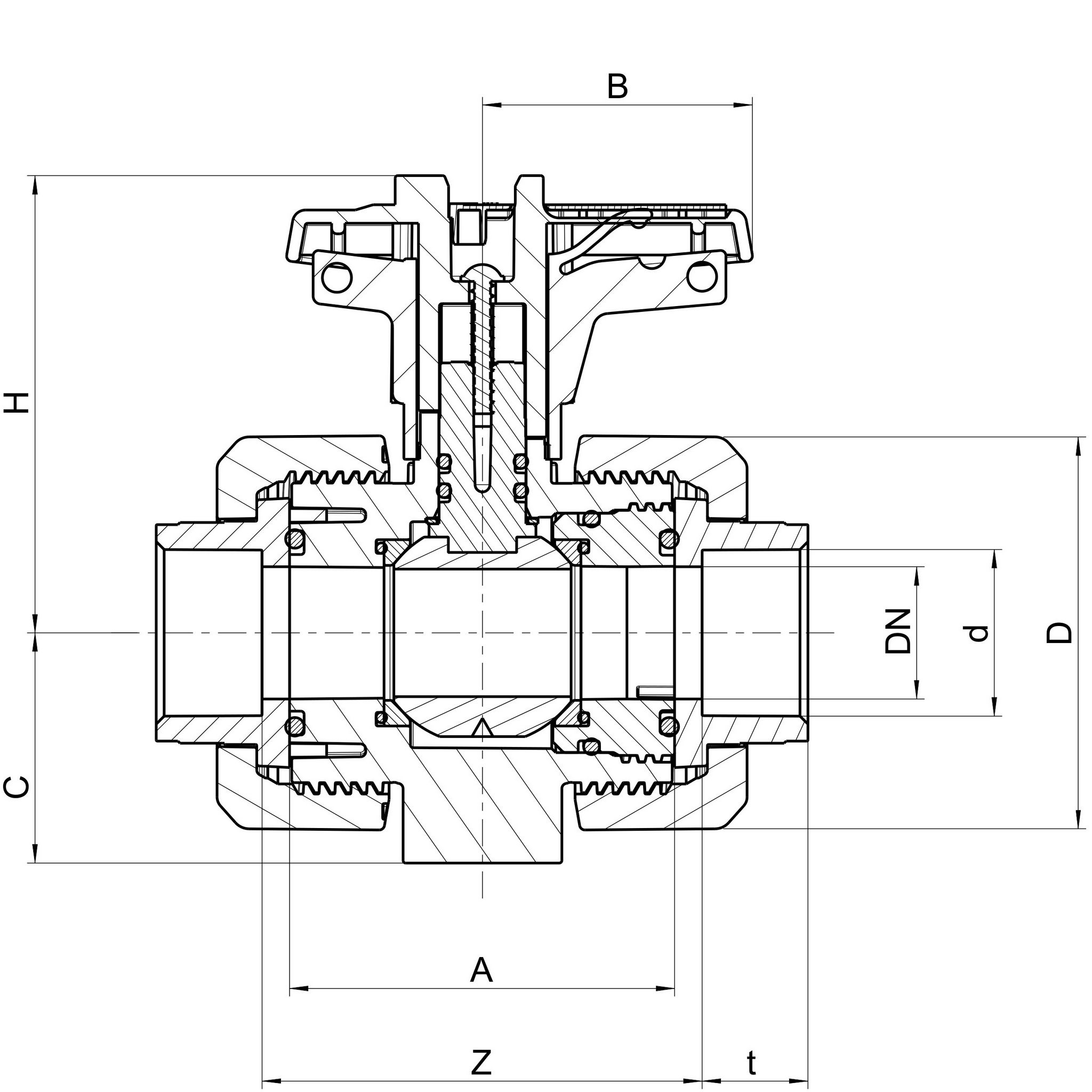

| Artikel nummer | VVS-nummer | d | DN | D | A | Z | t | C | H | B | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M1IEM-E-020 | 20 | 15 | 58 | 61.5 | 66.5 | 16 | 33 | 74.5 | 40 | CAD/Step | |
| M1IEM-E-025 | 25 | 20 | 68.5 | 69 | 79 | 17 | 40 | 83 | 51.5 | CAD/Step | |
| M1IEM-E-032 | 32 | 25 | 75.5 | 73 | 83 | 19.5 | 43.5 | 85.5 | 51.5 | CAD/Step | |
| M1IEM-E-040 | 40 | 32 | 92 | 83 | 96 | 22 | 51 | 104.5 | 64 | CAD/Step | |
| M1IEM-E-050 | 50 | 40 | 108 | 94 | 112 | 25 | 56.5 | 113 | 73 | CAD/Step | |
| M1IEM-E-063 | 63 | 50 | 127.5 | 109 | 137 | 29 | 64.5 | 121.5 | 85 | CAD/Step |
| Artikel nummer | M1IEM-E-020 |
| VVS-nummer | |
| d | 20 |
| DN | 15 |
| D | 58 |
| A | 61.5 |
| Z | 66.5 |
| t | 16 |
| C | 33 |
| H | 74.5 |
| B | 40 |
| Artikel nummer | M1IEM-E-025 |
| VVS-nummer | |
| d | 25 |
| DN | 20 |
| D | 68.5 |
| A | 69 |
| Z | 79 |
| t | 17 |
| C | 40 |
| H | 83 |
| B | 51.5 |
| Artikel nummer | M1IEM-E-032 |
| VVS-nummer | |
| d | 32 |
| DN | 25 |
| D | 75.5 |
| A | 73 |
| Z | 83 |
| t | 19.5 |
| C | 43.5 |
| H | 85.5 |
| B | 51.5 |
| Artikel nummer | M1IEM-E-040 |
| VVS-nummer | |
| d | 40 |
| DN | 32 |
| D | 92 |
| A | 83 |
| Z | 96 |
| t | 22 |
| C | 51 |
| H | 104.5 |
| B | 64 |
| Artikel nummer | M1IEM-E-050 |
| VVS-nummer | |
| d | 50 |
| DN | 40 |
| D | 108 |
| A | 94 |
| Z | 112 |
| t | 25 |
| C | 56.5 |
| H | 113 |
| B | 73 |
| Artikel nummer | M1IEM-E-063 |
| VVS-nummer | |
| d | 63 |
| DN | 50 |
| D | 127.5 |
| A | 109 |
| Z | 137 |
| t | 29 |
| C | 64.5 |
| H | 121.5 |
| B | 85 |
