MEL17-RC

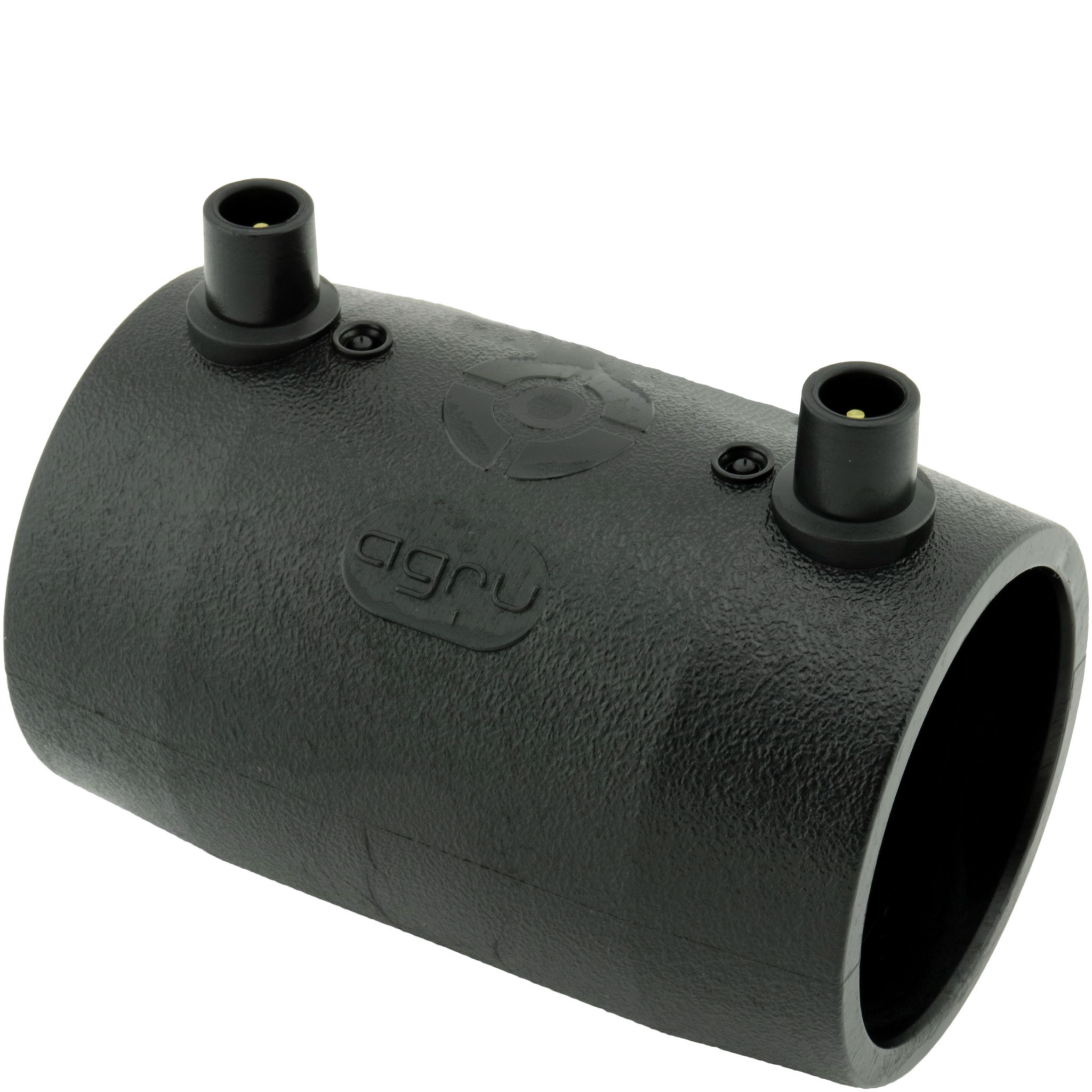

PE100-RC Elektrosvejsemuffe SDR17 PN10

  • PE100 Elektromuffe SDR26-17
  • Vand PN10
  • Gas PN6
  • For detaljerede trykklasser, se nedenfor .
  • Ved svejsning af muffer større end d500mm, anvendes spændebånd, se SB-MEL
  • Hvis artikelnummeret indeholder RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +

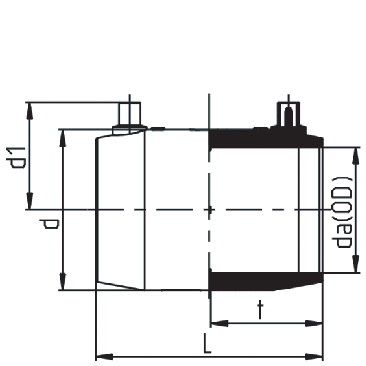

Artikel nummer VVS-nummer da(OD)Ldd1tSDRFiler
MEL17-RC-090 078223090 90138.51097467.526-17 CAD/Step
MEL17-RC-110 078223110 110150.51338273.526-17 CAD/Step
MEL17-RC-125 125169.51559183.526-17
MEL17-RC-160 078223160 160179.5188107.58826-17 CAD/Step
MEL17-RC-180 180201212117,598,526-17
MEL17-RC-200 078223200 200215.523412710526-17 CAD/Step
MEL17-RC-225 078223225 22523026314411226-17 CAD/Step
MEL17-RC-250 078223250 250240293152.5118.526-17 CAD/Step
MEL17-RC-280 078223280 280250326169123.526-17 CAD/Step
MEL17-RC-315 078223315 315259366185.5128.533-17 CAD/Step
MEL17-RC-355 078223355 355280413205.5138.533-17 CAD/Step
MEL17-RC-400 078223400 400301466235.5148.533-17 CAD/Step
MEL17-RC-450 078223450 450338522260166.533-17 CAD/Step
MEL17-RC-500 078223500 500359579286177.533-17 CAD/Step
MEL17-RC-560 078223560 56038064019033-17 CAD/Step
MEL17-RC-630 078223630 63041071520541-17 CAD/Step
MEL17-RC-710 078223710 71041080520533-17 CAD/Step
MEL17-RC-800 078223800 80050091525033-17 CAD/Step
MEL17-RC-900 078223900 900510102525533-17 CAD/Step
MEL17-RC-1000 078223910 1000530114026533-17 CAD/Step
MEL17-RC-1200 078223930 1200540136527041-17 CAD/Step
MEL17-RC-1400 1400550159027533-17 CAD/Step
Datablad
Produktblad
